Marine Dock Quick Release Towing Hook Boat Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Safe Working Load: | 30 To 100ton | Material: | Mild Steel, C-Mn Steel |
|---|---|---|---|
| Usage: | Mooring And Towing | Application: | Harbor, Dry Dock, Floating Dock, Engineering Vessel, Tug Boat |
| Test: | Prototype Test, Break Load Test, Safe Working Load Test, Operation Test | Operation System: | Manual Release |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc |
| High Light: | Marine quick release towing hook,100t quick release towing hook,100t boat towing equipment hook |
||
Product Description

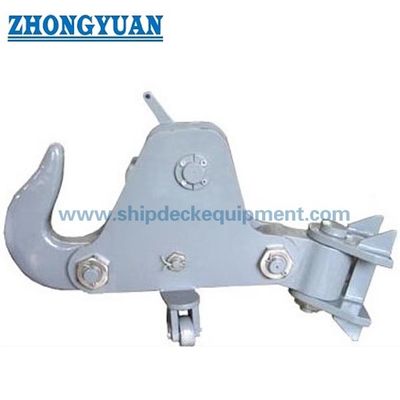

Marine Dock Quick Release Towing Hook Boat Ship Towing Equipment
Description:
Marine towing hook is to pull the ship safely under severe conditions. It can release towing rope under conditions of slack or full safe working load to ensure the safety of the ship and personnel. It can be released locally or remotely from the wheel house by pulling the release wire or control button. Remote control systems release mechanism is either hydraulic or pneumatic.
We supply
- Quick Release Towing Hook
- Pneumatic/ Manual Release Disc Towing Hook
- Pneumatic Release Harbour Towing Hook
- Hydraulic Release Towing Hook
- Pneumatic / Manual Release Spring Towing Hook
- Single / Double / Triple / Quadruple Quick Release Mooring Hook
Main Technical Specification:
- Safe Working Load:30 to 100ton
- Material: Mild Steel, C-Mn Steel
- Usage: Mooring and Towing
- Application: Harbor, Dry Dock, Floating Dock, Engineering Vessel, Tug Boat
- Test: Prototype Test, Break Load Test, Safe Working Load Test, Operation Test
- Operation System: Manual Release
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer,
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
- Can be Customized
Main Technical Parameters:
| SWL(t) | A(mm) | B(mm) | L(mm) | R1(mm) | R2 |
| 30 | 210 | 340 | 1050 | 65 | 430 |
| 40 | 220 | 345 | 1100 | 65 | 450 |
| 50 | 276 | 448 | 1332 | 80 | 577 |
| 60 | 295 | 475 | 1415 | 85 | 613 |
| 80 | 350 | 560 | 1680 | 100 | 721 |
| 100 | 450 | 630 | 2100 | 125 | 921 |
Drawing of Marine Dock Quick Release Towing Hook Boat Ship Towing Equipment
