Pneumatic Quick Release Disc Marine Towing Hook Ship Towing Equipment
Product Details:
Place of Origin: | China |
Brand Name: | Zhongyuan |
Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Model Number: | Standard and Customized |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | As per quotation |
Packaging Details: | Pallet or Customized |
Delivery Time: | As per offer |
Payment Terms: | TT, L/C, Etc. |
Supply Ability: | Satisfy clients needs |
Detail Information |
|||
SWL: | 30t,50t,60t,80t,90t,100t | Material: | Mild Steel, C-Mn Steel |
---|---|---|---|
Usage: | Mooring And Towing, For Emergency Towing And Port Towing | Type: | Disc Type, Movement: Side Movement |
Test: | Prototype Test, Break Load Test, Safe Working Load Test, Operation Test | Operation System: | Pneumatic Control, Remote Control, Manual Release |
Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc |
High Light: | Pneumatic marine towing hook,100t quick release towing hook,Disc type boat towing hook |
Product Description

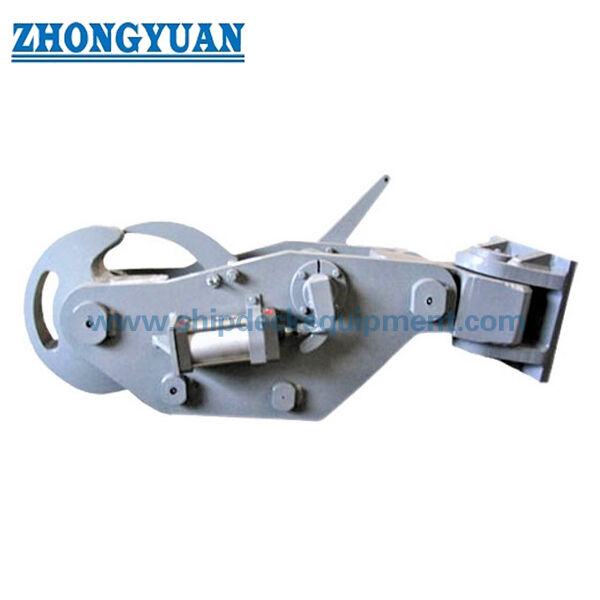

Pneumatic Quick Release Disc Marine Towing Hook Ship Towing Equipment
Description
Marine towing hook is to pull the ship safely under severe conditions. It can release towing rope under conditions of slack or full safe working load to ensure the safety of the ship and personnel. It can be released locally or remotely from the wheel house by pulling the release wire or control button. Remote control systems release mechanism is either hydraulic or pneumatic.
We supply
- Quick Release Towing Hook
- Pneumatic/ Manual Release Disc Towing Hook
- Pneumatic Release Harbour Towing Hook
- Hydraulic Release Towing Hook
- Pneumatic / Manual Release Spring Towing Hook
- Single / Double / Triple / Quadruple Quick Release Mooring Hook
- Pelican Hook
- Buoy Type Quick Release Hook
Main Technical Specification:
1. SWL: 30t,50t,60t,80t,90t,100t
2.Material: Mild Steel, C-Mn Steel
3.Usage: Mooring and Towing, For Emergency Towing and Port Towing
4. Type: Disc Type, Movement: Side Movement
5. Test: Prototype Test, Break Load Test, Safe Working Load Test, Operation Test
6. Operation System: Pneumatic Control, Remote Control, Manual Release
7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer,
8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
9. Can be Customized
Main Technical Parameters:
S.W.L. (ton) | A | B | D | H | L | N | R |
30 | 300 | 285 | 470 | 355 | 1278 | 180 | 60 |
50 | 395 | 360 | 470 | 405 | 1395 | 214 | 60 |
60 | 400 | 380 | 600 | 450 | 1628 | 220 | 80 |
80 | 410 | 400 | 600 | 466 | 1703 | 260 | 80 |
90,100 | 450 | 430 | 650 | 502.5 | 1915 | 328 | 88 |
Drawing of Pneumatic Quick Release Disc Marine Towing Hook Ship Towing Equipment
