3T 5m Electric Fixed Boom Slewing Crane With Tower Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Model: | 3Tx5m Electric Slewing Crane | Lifting Capacity: | 3T |
|---|---|---|---|
| Working Radius: | 5m | Lifting Speed: | 6m/min |
| Rotation Speed: | 0.8r/min | Lifting Motor Power: | 11kw |
| Rotary Motor Power: | 2.2kw | Protection Level: | IP56 |
| Insulation Class: | Class F | Control Power Supply: | 24V Safety Voltage |
| Power: | AC380V. 3 Phases. 50HZ | Working Temperature: | -40 To 50℃ Etc. |
| Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA |
| High Light: | 5m slewing jib crane,5t slewing jib crane,Slewing Crane Ship Deck Equipment |
||
Product Description

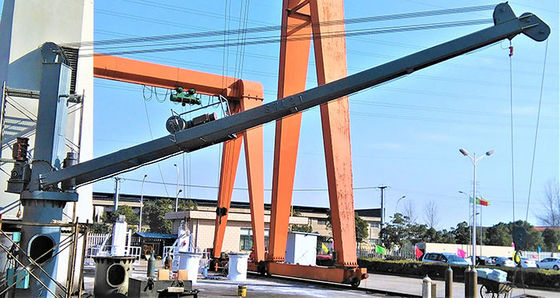

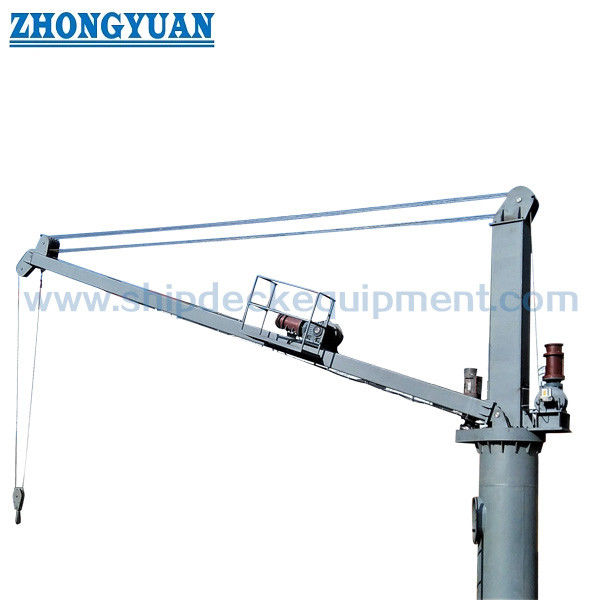

3T 5m Electric Fixed Boom Slewing Crane With Tower Ship Deck Equipment
Description:

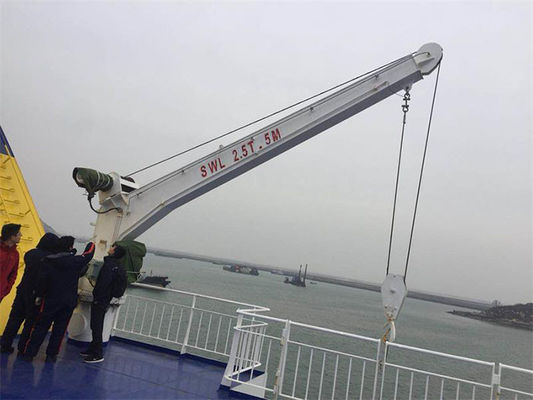

3Tx5m electric slewing crane: mainly used for ships and marine engineering to lift fuel, fuel, chemicals, garbage, food, spare parts and other items. The column is a seamless steel pipe for marine use. The lifting mechanism is composed of a marine lifting motor with brake and a gear box, and a slewing mechanism is composed of a slewing bearing and a reducer. The lifting arm adopts steel square box girder, and the electric control box is controlled by far and short range!
Main Technical Specifications:
- Model: 3Tx5m electric slewing crane
- Lifting capacity: 3T
- Working radius: 5m
- Lifting speed: 6m/min
- Rotation speed: 0.8r/min
- Lifting motor power: 11kw
- Rotary motor power: 2.2kw
- Protection level: IP56
- Insulation class: Class F
- Control power supply: 24V safety voltage
- Power AC380V. 3 phases. 50HZ
- Working Temperature:-40 to 50℃ Etc.
- Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
| SWL (Ton) |
Working Radius |
Slewing Speed (rpm) |
Hoisting Speed |
Motor Power |
Pedestal Dia. (Φ mm) |
| 0.5 | 2-8 | 0.8 | 12 | 2.2/1.1 | 450 |
| 0.8 | 2-10 | 0.7 | 12 | 2.2/1.5 | 530 |
| 0.9 | 2-10 | 0.7 | 12 | 3.7/1.5 | 630 |
| 1 | 2-10 | 0.7 | 12 | 3.7/1.5 | 680 |
| 2 | 2-15 | 0.7 | 12 | 5.5/2.2 | 800 |
| 3 | 2-15 | 0.6 | 12 | 7.5/3.7 | 900 |
| 4 | 2-15 | 0.5 | 12 | 11/3.7 | 900 |
| 5 | 2-15 | 0.5 | 12 | 15/5.5 | 1100 |
Drawing of 3T 5m Electric Fixed Boom Slewing Crane With Tower Ship Deck Equipment
