19–70mm Electric Windlass & Winch Single Gypsy Single Drum | Ship Anchor & Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Anchor Chain Diameter: | Φ90mm | Rated Tension: | 384.8kN |
|---|---|---|---|
| Working Speed: | 9m/min | Drum Load: | 385kN |
| Support Load: | 2629kN | Motor Power: | 75/75/30KW |
| Mooring Speed: | 9/min | Number Of Anchor Sprocket: | Double Gypsy |
| Lead Time: | 120 Days | Warranty Period: | One Year After Delivery |
| Color: | Customer Specified | Power Supply: | AC Single-phase 110V, 220V, 240V AC Three-phase 220V, 380V, 440V, 660V |
| Composition: | Mainly Composed Of Base, Wall Frame, Double Anchor Sprocket, Twisted Pair Cable Drum, Double Clutch, Double Brake, Twisted Pair Cable Drum, Reducer, Electrical Control Box, Master Controller, Double Anchor Gate, Double Roller And Other Components | Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Highlight: | Electric Driven Windlass Winch,Single Drum Windlass Winch,Single Gypsy Windlass Winch |
||
Product Description

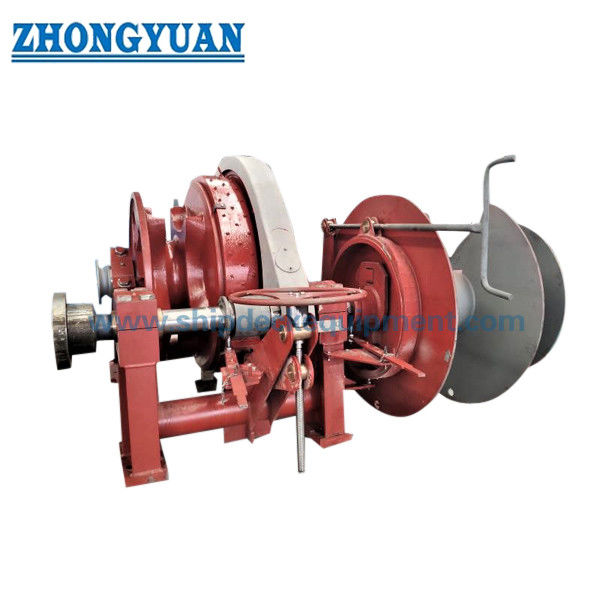

19–70mm Electric Windlass & Winch Single Gypsy Single Drum | Ship Anchor & Mooring Equipment
Product Overview
Electric driven windlass and winch is designed for anchor handling and mooring operations on ship decks.
The system integrates anchor gypsy, drum, warping end, gearbox, and electric drive to ensure safe and efficient anchor lifting and mooring control.
It is widely used on commercial vessels, offshore ships, and law enforcement vessels with reliable performance and stable operation.
Quick Specifications
• Chain Diameter: 19–70 mm
• Working Load: 15.3–196.5 kN
• Working Speed: ≥9–12 m/min
• Mooring Pull: 20–150 kN
• Mooring Speed: ≥12–15 m/min
• Drum Capacity: 120–200 m
• Motor Power: 8.5–60 kW
• Drive Type: Electric
• Configuration: Single gypsy + single drum + single warping end
• Control: Local and Remote
Main Technical Parameters
| Chain Dia (mm) | Working Load (kN) | Speed (m/min) | Mooring Pull (kN) | Mooring Speed (m/min) | Drum Capacity | Motor Power (kW) |
| 19/20.5/22 | 15.3/17.9/20.5 | ≥12 | 20 | ≥12 | 15x120 | 8.5/3.5 |
| 24/26/28 | 24.5/28.7/33.3 | ≥9 | 20 | ≥12 | 15x120 | 8.5/3.5 |
| 30 | 38.3 | ≥9 | 30 | ≥12 | 18x150 | 11/11/7.5 |
| 32/34/36 | 43.5/49.1/55.1 | ≥9 | 50 | ≥12 | 20.5x150 | 16/16/11 |
| 38/40/42 | 61.4/68.0/75 | ≥9 | 50 | ≥12 | 20.5x150 | 22/22/16 |
| 44/46/48 | 82.3/89.9/97.9 | ≥9 | 75 | ≥12 | 26x200 | 30/30/22 |
| 50/52/54 | 106.3/114.9/123.9 | ≥9 | 75 | ≥15 | 26x200 | 30/30/22 |
| 56/58/60 | 133.3/143.0/153 | ≥9 | 75 | ≥15 | 26x200 | 45/45/30 |
| 62/64 | 163.4/174.1 | ≥9 | 100 | ≥15 | 30x200 | 45/45/30 |
| 66/68/70 | 185.1/196.5 | ≥9 | 150 | ≥15 | 32.5x200 | 60/60/45 |
Selection Guide
Step 1 - Chain Size: 19–70 mm | Step 2 - Working Load: 15–196 kN | Step 3 - Mooring Pull: 20–150 kN | Step 4 - Speed: ≥9–12 m/min | Step 5 - Drive: Electric | Step 6 - Configuration: Single gypsy + drum | Step 7 - Installation: Deck mounted
Structure & Components
Structure & Components: Electric motor | Gearbox | Single gypsy | Single drum | Warping end | Brake system | Clutch system | Control panel | Base frame
Custom Attributes
Chain Size: 19–70 mm | Working Load: 15–196 kN | Mooring Pull: 20–150 kN | Drive Type: Electric | Configuration: Gypsy + Drum | Control: Local / Remote
Custom Configuration & Inquiry Guide
Chain Size | Working Load | Mooring Pull | Drum Capacity | Motor Power | Control Type | Installation Requirement
How It Works
The electric motor drives the gearbox to rotate the gypsy and drum for anchor lifting and mooring operations.
The chain is handled by the gypsy while the rope is managed by the drum and warping end for flexible operation.
Applications
Applications: Commercial ships | Offshore vessels | Patrol boats | Barges | Marine anchor and mooring operations
Certifications & Advantages
Certifications: CCS | NK | BV | ABS | DNV | LR | KR | RINA | IRS | RS
Advantages: Combined windlass and winch design | Space saving | Stable electric drive | Flexible operation | Reliable performance
Drawing & Photos
• General arrangement drawing
• Windlass structure drawing
• Installation layout
• Product photos
Ordering Information
• MOQ: 1 Unit
• Delivery Time: Based on project
• Payment: T/T, L/C
FAQ
Q1: Can it handle both anchor and mooring?
A: Yes, combined design supports both functions.
Q2: Is configuration customizable?
A: Yes, gypsy, drum, and warping end can be customized.
Q3: Is remote control available?
A: Yes, both local and remote control supported.
