Boat Hydraulic Anchor Windlass with Single Gypsy Single Warping End Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Dia: | 12.5mm Electric Hydraulic Windlass | Working Load: | 11.8KN |
|---|---|---|---|
| Overload: | 17.7KN | Support Load: | 50KN |
| Speed(m/min): | ≥10m/Min | Anchor Chain: | Dia. 12.5 (mm), U2 |
| System Pressure: | ~16MPa | System Flow Rate: | ~12L/min |
| Material: | Mild Steel, Casting | Power: | Hydraulic Motor |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, BKI, IRS, RS, Etc | ||
| Highlight: | U2 Hydraulic Windlass,12.5mm Hydraulic Windlass for Boat,12.5mm marine deck equipment |
||
Product Description

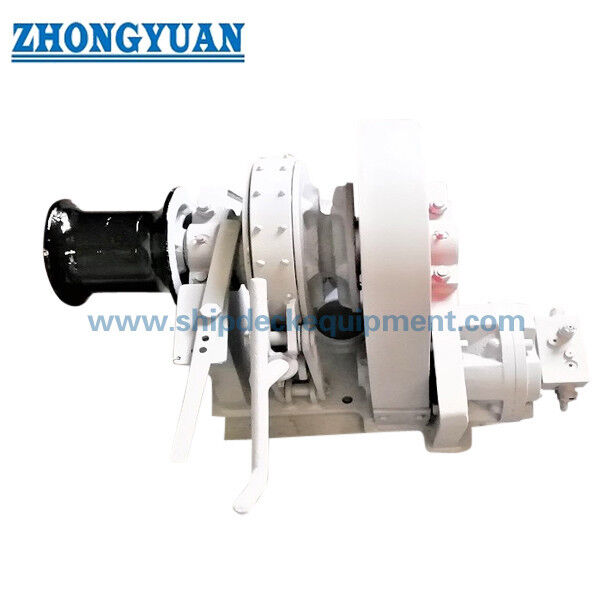

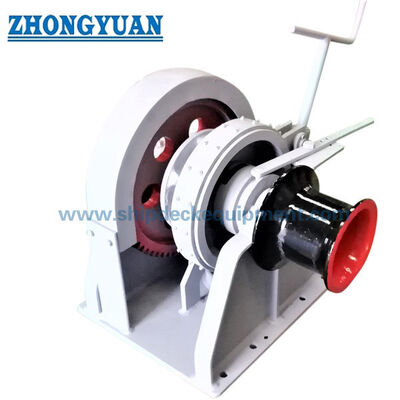

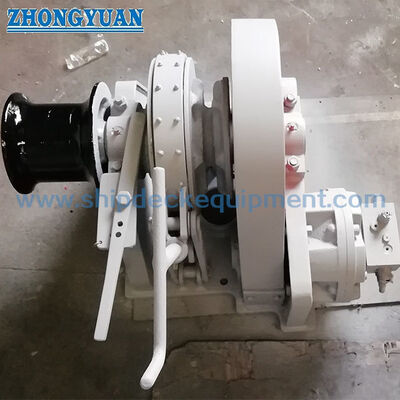

Boat Hydraulic Anchor Windlass with Single Gypsy Single Warping End
Description:
Our boat hydraulic anchor windlass, with a diameter ranging from 12.5mm to 28mm, is specially designed as anchoring equipment for work boats, barges, small ships, and inland waterway vessels.
Our small electric hydraulic windlass features a single gypsy, a single warping end, compact hydraulic motor and gearbox, manual belt brake, and manual clutch. Additionally, it is equipped with a small lever-operated proportional control valve. The anchor windlass for small boats is powered by an electric hydraulic power unit with dual motors and pump sets.
We use high-quality Chinese marine electric motors and hydraulic motors, along with ABB or Schneider electric components, in the manufacturing of our windlass. Furthermore, we also produce electric and hydraulic anchor winches for tugboats and small ships.
Product Features:
- Compact structure
- Small volume, occupying minimal space
- Lightweight
- Low-cost maintenance
- Dual-motor pump station, with one for use and one as backup
- Built as per Classification Rules for sea-going ships and Inland Water Way ships. Suitable for limit area on deck
Main Technical Specification
- Dia.12.5 Electric Hydraulic Windlass
- Working Load: 11.8KN
- Overload: 17.7KN
- Brake Load Capacity: 50KN
- Speed(m/min): ≥10m/Min
- Anchor Chain: Dia. 12.5 (mm), U2
- System pressure: ~16MPa
- System flow Rate: ~12L/min
- Material: Mild Steel, Casting
- Power: Hydraulic Motor, Hydraulic power station
- Classification Certificates: BV, ABS, DNV-GL, LR, KR, BKI, IRS, RS, CCS, NK, Etc.
Drawing of Single Gypsy Single Warping End Hydraulic Anchor Windlass for Boat Ship Deck Equipment
