Electric Driven Double Drum Steel Wire Rope Reel CB3048 Type As Ship Deck Equipment
Product Description

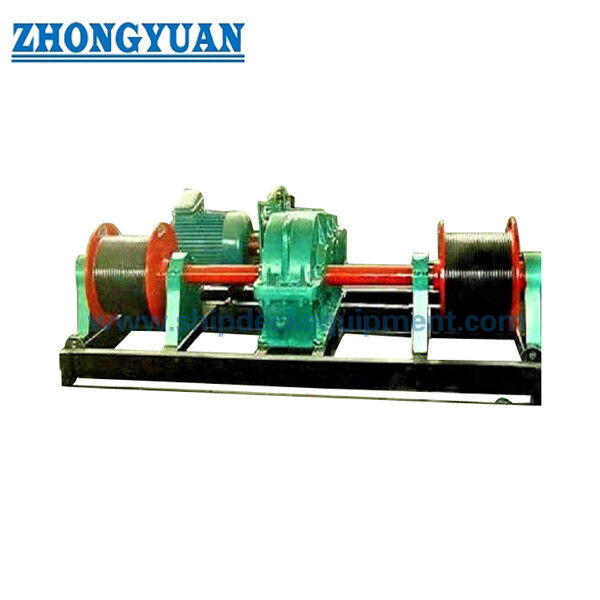

CB3048 type As reel is designed for reel steel wire ropes. It is driven by electric motor on the common base structure. It is controlled by an electric motor in the middle of the drum and crew can use handle to operate through the worm gear reducer when there is no electric power. Type As has two drums.
Main Technical Specifications:
- Type Model: As26, As32,
- Max. Diameter of Steel Wire: 26~32mm;
- Electric motor RPM: 1350/410 min-1
- Drum Storage Capacity of Steel Wire Length: 210-220m;
- Material: Stainless Steel and Mild Steel;
- Sa2.5 Sandblasting and Anti-corrosive epoxy Painting; Polished
- Maker or Classification Certificates
- Can Meet Customer’s Special Requirements;
Main Technical Parameters:
| Type Mode |
Steel Wire Max. Dia. (mm) |
Steel Wire Length (m) |
Motor Power (kw) |
Motor RPM Speed (min¯1) |
Drum Rope Speed m/min 1350 Min¯1 |
Drum Rope Speed m/min 410 Min¯1 |
External Dimension LxBXH (mm) |
Weight (kg) |
| As26 | 26 | 220 | 4.3/1.7 | 1350/410 | 56 | 17 | 2345 x 1360 x 1175 | 773 |
| As32 | 32 | 210 | 4.3/1.7 | 1350/410 | 60 | 18 | 2525x1450x1330 | 820 |
| Type Mode |
Max. Steel Wire Rope Diameter |
D | D1 | B | B1 | L | L1 | H | H1 | Weight kg |
| As 26 | 26 | 300 | 870 | 1120 | 1360 | 550 | 2340 | 740 | 1175 | 773 |
| As 32 | 32 | 360 | 1050 | 1120 | 1450 | 650 | 2525 | 800 | 1330 | 820 |
Drawing of Electric Driven Double Drum Steel Wire Rope Reel CB3048 Type As Ship Deck Equipment
