10–20kN Marine Pilot Ladder Winch ISO 7364 Electric Driven | Ship Deck Pilot Ladder Handling Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Standard:: | ISO 7364:2016 | Type:: | Electric Single/Double Drum, Manual Backup |
|---|---|---|---|
| Factory Testing:: | Running Test Without Load, Drum Load Test, Static Test Under 1,5 Holding Load; | Working Load:: | 10KN, 16KN，20KN |
| Speed(m/min):: | 8-12m/Min | Wire Rope: | Dia. 13 (mm); |
| Material:: | Mild Steel, | Control:: | Local Control |
| Classification Certificates:: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate | ||
| Highlight: | pilot ladder winch iso7364,electric motor driven pilot ladder winch,20kn pilot ladder winch |
||
Product Description
10–20kN Marine Pilot Ladder Winch ISO 7364 Electric Driven | Ship Deck Pilot Ladder Handling Equipment
Product Overview
ISO 7364 electric motor driven marine pilot ladder winch is designed for pilot ladder handling and storage operations on ship decks.
It complies with ISO 7364:2016, ensuring safe and reliable performance in marine environments.
The winch features electric drive with manual backup, compact structure, and stable operation for safe ladder deployment and recovery.
Quick Specifications
• Standard: ISO 7364:2016
• Working Load: 10 kN | 16 kN | 20 kN
• Drum Type: Single drum | Double drum
• Hoisting Speed: 8–20 m/min
• Wire Rope: 6×37-13.0-170-1
• Wire Capacity: up to 95 m
• Drive Type: Electric (manual backup)
• Control: Local control
• Material: Carbon steel
• Surface Treatment: Sa2.5 + Epoxy coating
• Working Temperature: -40°C to +50°C
Main Technical Parameters
| Model | 10KN | 16KN | 20KN |
| Drum Load (KN) | 10 | 16 | 20 |
| Supporting Load (KN) | 30 | 48 | 60 |
| Hoisting Speed(m/min) | 8.09/10 | 9.85/11.64 | 15.3/20.7 |
| Winding Wire Layer on Drum | 3 | 3 | 4 |
| Wire Capacity(m) | 37 | 50 | 95 |
| Wire Rope Size | 6*37-13.0-170-1 | 6*37-13.0-170-1 | 6*37-13.0-170-1 |
| Electric Transmission Ratio | 75.43 | 69.48 | 51.19 |
| Manual Transmission Ratio | 30.73 | 30.73 | 31.5 |
| Total Efficient | 0.83 | 0.858 | 0.85 |
Winch Selection Guide
Step 1 – Working Load: 10 kN | 16 kN | 20 kN
Step 2 – Drum Type: Single drum | Double drum
Step 3 – Hoisting Speed: 8–12 m/min | 12–20 m/min
Step 4 – Wire Rope: 6×37 steel wire rope
Step 5 – Drive Type: Electric with manual backup
Step 6 – Control: Local control
Structure & Components
Structure & Components: Electric motor | Gearbox transmission system | Single / double drum | Wire rope system | Brake system | Manual drive system | Control panel | Base frame
Custom Attributes
Working Load: 10 / 16 / 20 kN
Drum Type: Single / Double
Speed: 8–20 m/min
Drive Type: Electric
Control: Local
Wire Rope: 6×37
Installation: Deck mounted
Custom Configuration & Inquiry Guide
Working Load | Drum Type | Hoisting Speed | Wire Rope Specification | Wire Capacity | Installation Requirement
Send above data for model selection and quotation
How It Works
The electric motor drives the drum via gearbox, winding or releasing the wire rope to handle pilot ladders.
Manual drive ensures operation during power failure.
Applications
Applications: Pilot ladder handling | Ship deck operations | Cargo ships | Offshore vessels | Port and harbor operations
Certifications & Advantages
Certifications: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS
Advantages: ISO 7364 compliant | Stable electric drive | Compact design | Manual backup | Easy maintenance
Drawing & Photos
• General arrangement drawing
• Structure drawing
• Installation layout

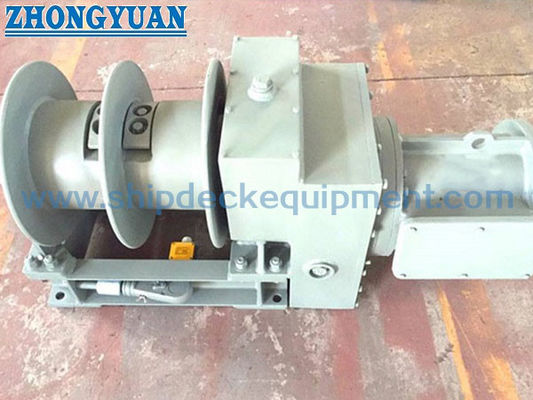

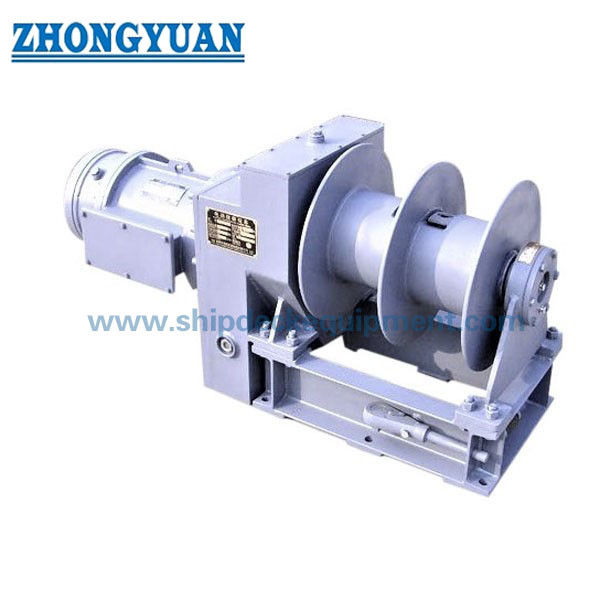

• Product photos
Ordering Information
MOQ: 1 Unit
Delivery Time: Based on project
Payment: T/T, L/C
FAQ
Q1: Is it ISO compliant? A: Yes, ISO 7364:2016.
Q2: Backup operation? A: Manual drive available.
Q3: Drum options? A: Single and double drum.
