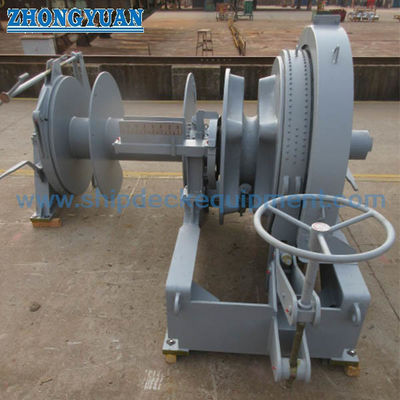

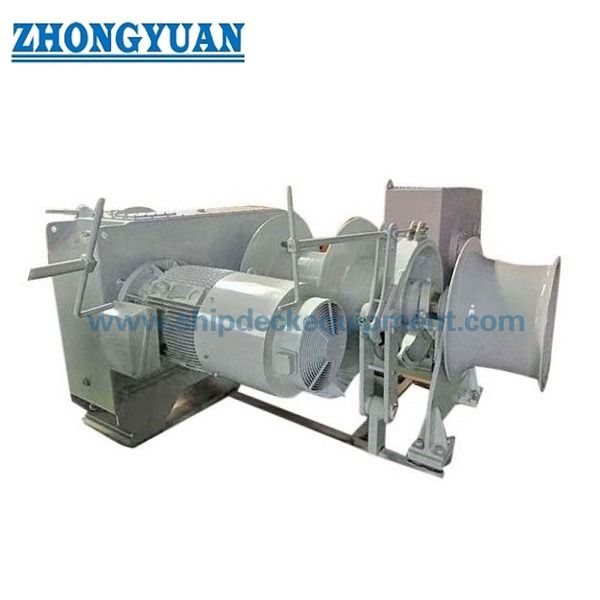

50mm Grade 3 Electric Anchor Windlass | Single Gypsy Single Drum Marine Windlass
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Function: | Anchor WIndlass | Working Load: | 5KN To 250KN |
|---|---|---|---|
| Warping Head Diameter: | 200-700 Mm | Warping Speed(m/min): | 9-18m/Min |
| Wire Rope Dia: | 11 - 46 (mm) | Material: | Mild Steel, Casting, Stainless Steel |
| Power: | Hydraulic Driven | Control: | Local Or Remote Control |
| Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, RINA, IRS, RS, Etc | Chain Size: | 12.5mm To 142mm |
| Highlight: | Single Drum Electric Single Gypsy Windlass,Horizontal Anchor Windlass,50mm Electric Single Gypsy Windlass |
||
Product Description
50mm Grade 3 Electric Anchor Windlass | Single Gypsy Single Drum Marine Windlass
Product Overview
The 50mm Grade 3 electric anchor windlass is a dedicated anchor chain handling system designed for commercial and offshore vessels.
It features a single gypsy for anchor chain control and a single drum with warping head for auxiliary rope handling.
The system is engineered in accordance with classification society requirements, ensuring safe and reliable anchor deployment and retrieval.
This windlass is specifically designed for anchor chain operations, distinguishing it from mooring winches and towing winches.
Quick Specifications
• Anchor Chain Size: 50/52/54 (Grade 3 / U3)
• Anchor Chain Pull: 106.3–123.9 kN
• Brake Holding Load: 617–713 kN
• Chain Speed: ≥9 m/min
• Warping Head Pull: 50 kN
• Motor Power: 30–45 kW
• Drive Type: Electric
• Configuration: Single gypsy + single drum + warping head
• Chain Standard: ISO / Class Rules
• Control: Local + Remote
• Application: Anchor handling systems
Main Technical Parameters
| Chain (mm) | Chain Pull (kN) | Brake Load (kN) | Speed (m/min) | Warping Pull (kN) | Motor Power (kW) |
| 50/52/54 | 106.3/114.9/123.9 | 617/664/713 | ≥9 | 50 | 30/30/22 |
Selection Guide
Step 1 – Confirm Chain Size (50mm U3) | Step 2 – Select Required Chain Pull | Step 3 – Verify Brake Holding Load | Step 4 – Confirm Chain Speed | Step 5 – Select Drive Type (Electric) | Step 6 – Select Configuration | Step 7 – Confirm Installation Layout
Structure & Components

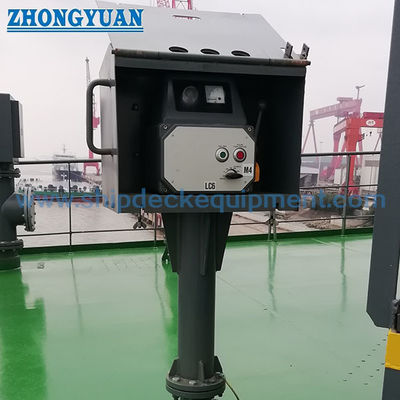

Structure & Components: Electric motor | Gearbox | Gypsy wheel (chain handling) | Single drum (rope handling) | Warping head | Band brake | Jaw clutch | Control panel | Base frame
Custom Attributes
Chain Size: 50 mm | Chain Grade: U3 | Chain Pull: 106–124 kN | Brake Load: 617–713 kN | Drive Type: Electric | Configuration: Single gypsy single drum
Custom Configuration & Inquiry Guide
Chain Size | Chain Grade | Pull Requirement | Brake Load | Control System | Installation Space | Vessel Type
Send above information for model selection, GA drawing, and quotation.
How It Works
The electric motor drives the gearbox to rotate the gypsy wheel for anchor chain handling.
The anchor chain is controlled through the gypsy, while the brake system ensures safe holding during anchoring.
The drum and warping head provide auxiliary rope handling for mooring assistance.
Applications
Applications: Anchor handling operations | Commercial vessels | Bulk carriers | Offshore vessels | Tankers | Ship anchoring systems
Certifications & Advantages
Certifications: CCS | ABS | DNV | BV | LR | NK | RINA | IRS | RS
Advantages: Class-compliant design | Dedicated chain handling system | Stable braking performance | Reliable electric drive | Suitable for medium to large vessels | Easy maintenance
Drawing & Photos
• General arrangement drawing
• Gypsy and chain system drawing
• Installation layout
• Product photos
Ordering Information
• MOQ: 1 Unit
• Delivery Time: Project based
• Payment: T/T, L/C
• Customization: Available
FAQ
Q1: What is the main function of this windlass?
A: Anchor chain handling using gypsy system.
Q2: Is this suitable for mooring operations?
A: It provides auxiliary mooring via drum but is primarily for anchor handling.
Q3: What chain grade is supported?
A: Grade 3 (U3) anchor chains.
