2–300kN Hydraulic Mooring Capstan Winch | Marine Vertical & Horizontal Capstan for Ship Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Function: | Mooring | Working Load: | 2KN To 250KN |
|---|---|---|---|
| Warping Head Diameter: | 200-500 Mm | Speed(m/min): | 5-30m/Min |
| SW Rope Diameter: | 11 - 46 (mm) | Material: | Carbon Steel, Casting, Stainless Steel |
| Power: | Hydraulic Driven | Control: | Local Or Remote Control |
| Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA | ||
| Highlight: | Hydraulic Mooring Capstan Winch,Boat Hydraulic Mooring Capstan Winch,Boat Mooring Capstan Winch |
||
Product Description
2–300kN Hydraulic Mooring Capstan Winch | Marine Vertical & Horizontal Capstan for Ship Deck
Product Overview
Hydraulic mooring capstan winch is a marine deck equipment used for mooring, rope handling and traction operations.
Driven by a hydraulic motor, it provides high torque output, adjustable speed and stable control performance.
It is widely used in ship deck operations, offshore platforms and port handling systems.
Quick Specifications
Working Load: 2–300 kN → Determines pulling capacity
Warping Head Diameter: 250–800 mm → Matched with rope diameter
Speed: 5–30 m/min → Affects operation efficiency
Rope Type: Steel Wire Rope / Synthetic Rope → Defines application flexibility
Rope Diameter: 11–80 mm → Determines compatibility
Drive Type: Hydraulic → Ensures high torque output
Control Type: Lever / Proportional → Provides precise operation
Mounting Type: Vertical / Horizontal → Defines installation layout
Material: Cast Steel → Ensures durability
Main Technical Parameters
| Working Load (kN) | Warping Head (mm) | Speed (m/min) | SWR (mm) | Synthetic Rope (mm) | Hydraulic Power (kW) |
| 2 | 250 | 5–30 | 11 | 28 | 3.5 |
| 10 | 300 | 5–30 | 11 | 28 | 7.5 |
| 50 | 400 | 5–30 | 20.5 | 40 | 30 |
| 100 | 450 | 5–30 | 28 | 50 | 55 |
| 200 | 500 | 5–30 | 40 | 80 | 110 |
| 250 | 500 | 5–30 | 46 | 80 | 110 |
Selection Guide
Step 1 – Select Working Load → Determines pulling capacity
Step 2 – Select Rope Type → Steel or synthetic rope
Step 3 – Confirm Rope Diameter → Determines compatibility
Step 4 – Select Speed → Affects efficiency
Step 5 – Choose Mounting Type → Vertical or horizontal
Step 6 – Select Control Type → Lever or proportional
Structure & Components
Hydraulic motor | Gearbox transmission system | Warping head | Shaft and bearing | Brake system | Control valve | Base frame
Custom Attributes
Working Load: 2–300 kN → Defines pulling capacity
Speed: 5–30 m/min → Defines operation efficiency
Rope Diameter: 11–80 mm → Determines compatibility
Drive Type: Hydraulic → Ensures high torque performance
Control Type: Lever / Proportional → Provides operational precision
Mounting Type: Vertical / Horizontal → Affects installation layout
Material: Cast Steel → Ensures durability
Certification: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS → Meets international marine standards
Custom Configuration & Inquiry Guide
Please provide working load, rope type, rope diameter, speed, mounting type and control type.
We will provide model selection, technical drawings and quotation.
How It Works
The hydraulic motor drives the warping head through gearbox to pull or release rope. Speed is controlled by hydraulic valve system.
Applications
Ship mooring operations | Anchor chain handling | Offshore vessels | Barges and cargo ships | Port and harbor operations
Certifications & Advantages
Certifications: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS
High torque output, stable control, adjustable speed, heavy-duty design, reliable safety system.
Drawing & Photos

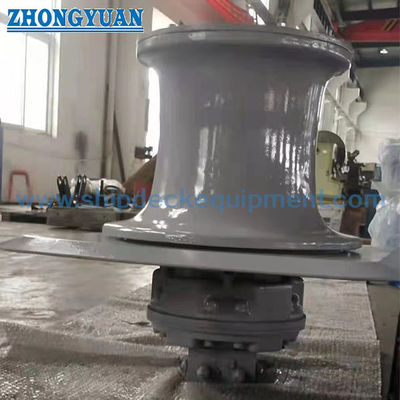

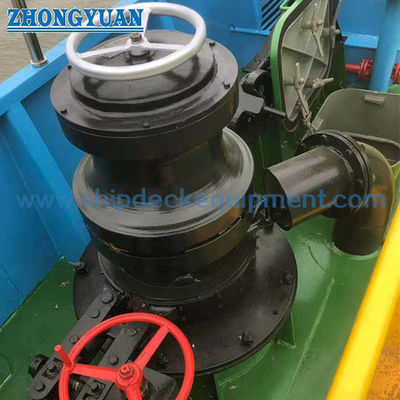

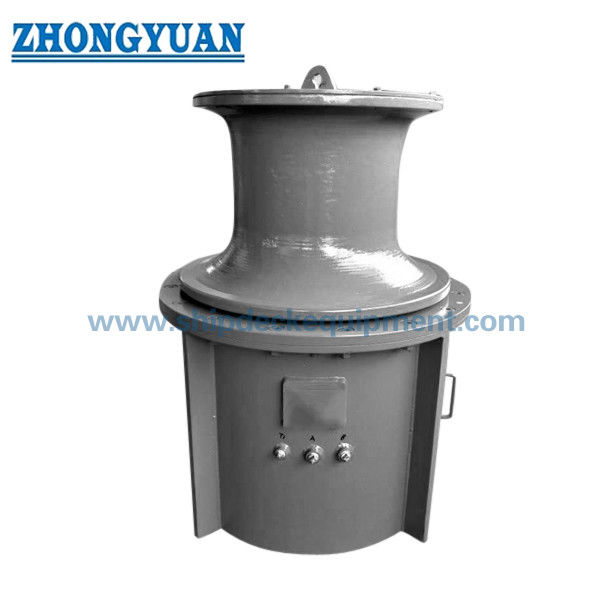

General arrangement drawing | Product photos | Installation layout
Ordering Information
MOQ: 1 Unit | Delivery Time: As per project | Payment: T/T, L/C | Customization: Available
FAQ
Q1: How to select correct model?
A: Based on working load, rope diameter and application.
Q2: Can it support synthetic rope?
A: Yes, both steel wire rope and synthetic rope are supported.
