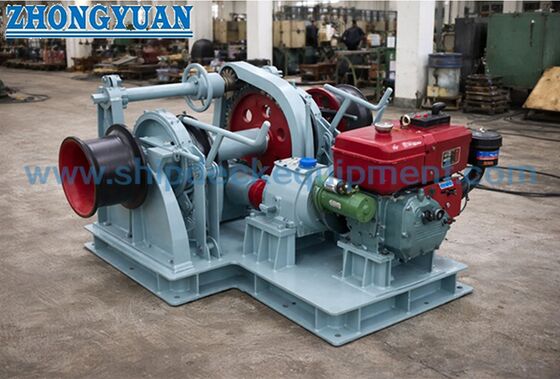

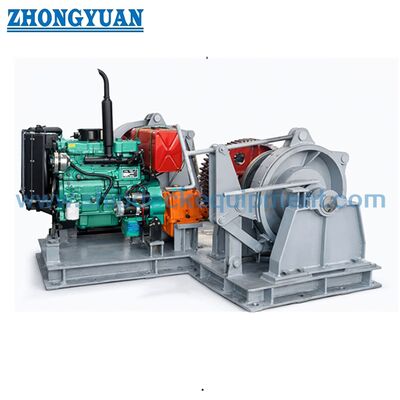

38mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Double Gypsy Windlass
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS / ABS / DNV / LR / NK / BV / KR / RINA / IRS / RS / CRS |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Anchor Chain Diameter: | 38mm | Rated Pull Load: | 46.9kN |
|---|---|---|---|
| Chain Speed: | 9m/min | Support Load: | 162.6KN |
| Diesel Engine: | S4100 | Worm Gear Box: | WD190, Etc. |
| Gear Box: | 32F16A | Number Gypsy: | Double Or Single |
| Color: | Customer Specified | Composition: | Mainly Composed Of Diesel Engine Main Engine And Electrical Starting System, Worm Gear Box, Gear Box, Base, Wall Frame, Anchor Sprocket, Clutch, Brake, Twisted Pair Cable Drum, Reducer, Anchor Brake, Roller, Etc. |
| Classification Certificates: | CCS / ABS / DNV / LR / NK / BV / KR / RINA / IRS / RS / CRS | ||
Product Description
38mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Double Gypsy Windlass
Product Overview
A 38mm marine anchor windlass is a type of ship deck equipment designed for anchoring and mooring operations using a 38mm anchor chain.
This diesel engine driven windlass provides stable pulling force, independent operation, and reliable performance in harsh marine environments. It is equipped with a gypsy wheel, gearbox, brake, and clutch system.
It is widely used in cargo ships, barges, and offshore vessels.
Quick Specifications
Chain Diameter: 38 mm
Chain Grade: Grade 2 / Grade 3
Working Load: 42–47 kN
Drive Type: Diesel Engine
Gypsy: Single / Double
Warping Head: Optional
Mooring Drum: Optional
Main Technical Parameters
|
Chain Size |
Gypsy Speed |
Working Load |
Holding Capacity |
|---|---|---|---|
| 36 / 38 mm | ≥9 m/min | 42.2 / 46.9 kN | 146.4 / 162.6 kN |
Anchor Windlass + Engine Selection
✔ Recommended Engine Power
For a 38mm anchor chain windlass:
Working Load: approx. 42–47 kN
Recommended Engine Power: 18–30 kW
✔ Selection Logic
Grade 2 chain → lower power requirement
Grade 3 chain → higher load, recommend higher power engine
Continuous operation → increase power margin
✔ Engineering Note
The final engine configuration should be selected based on classification society rules and actual working conditions.
Structure & Components
Structure & Components: Diesel engine | Worm gearbox | Gypsy wheel (for 38 mm chain) | Brake & clutch system | Base frame | Warping head (optional) | Mooring drum (optional)
How It Works
The diesel engine drives the windlass through a gearbox system.
The gypsy wheel engages the 38mm anchor chain to control anchoring and lifting operations, while the brake ensures safety.
Applications
Cargo ships | Barges | Offshore vessels | Port operations
Certifications & Advantages
Certifications
CCS / ABS / DNV / LR / NK / BV / KR / RINA / IRS / RS / CRS
Advantages
Designed for 38 mm anchor chain | Stable pulling force | Independent diesel operation | Easy maintenance
Ordering Information
MOQ: 1 Unit
Delivery Time: 90 Days
Customization: Available
FAQ
Q1: Is this windlass suitable for Grade 3 chain?
Yes, it supports both Grade 2 and Grade 3 anchor chains.
Q2: Can I choose engine brand?
Yes, multiple engine brands are available.
Q3: What is the typical vessel size for 38mm windlass?
Usually medium-sized cargo vessels and barges.
