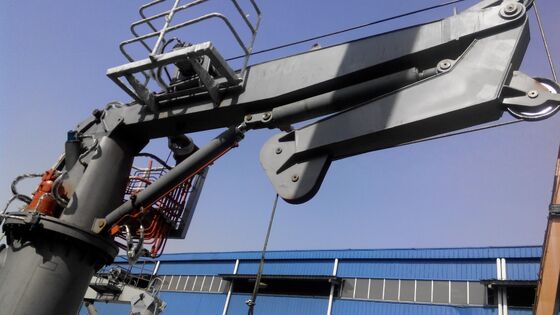

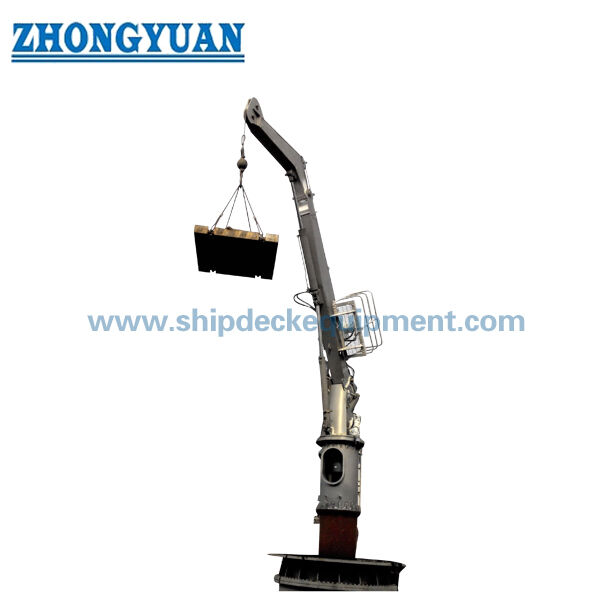

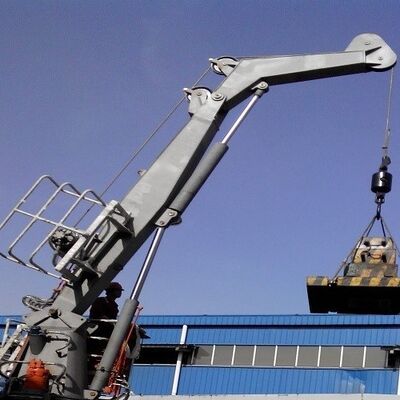

Pedestal Hydraulic Knuckle Boom Slewing Crane Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Boom Type: | Knuckle Boom | Working Temperature: | -40 To 50℃ Etc. |
|---|---|---|---|
| Slewing: | 0-360° | Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint |
| Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA | ||
| Highlight: | hydraulic knuckle boom crane,hydraulic knuckle boom crane offshore,marine knuckle boom crane |
||
Product Description
Pedestal Hydraulic Knuckle Boom Slewing Crane Ship Deck Equipment
Description:
It is suitable for ship with limit space. The cranes have been designed for a wide range of applications including shipboard, offshore platforms, fishing and sea farming industry.
Main Technical Specifications:
- Boom Type: Knuckle Boom
- Working Temperature: -40 to 50℃ Etc.
- Slewing: 0-360°
- Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
| SWL (Ton) |
Working Radius |
Slewing Speed (rpm) |
Hoisting Speed |
Luffing Time (Second) |
Hoisting Height (m) |
Power Rating (kw) |
| 1 | 2-25 | 0.8-1 | 10-15 | 50-60 | 30-40 | 11 |
| 1.5 | 2-25 | 0.8-1 | 10-15 | 50-60 | 30-40 | 15 |
| 2 | 2-25 | 0.8-1 | 10-15 | 50-60 | 30-40 | 18.5 |
| 3 | 2-25 | 0.8-1 | 10-15 | 60-70 | 30-40 | 22 |
| 5 | 2-25 | 0.8-1 | 10-15 | 70-80 | 30-40 | 45 |
| 8 | 2-25 | 0.6-0.9 | 10-15 | 90-100 | 30-40 | 75 |
Drawing of Pedestal Hydraulic Knuckle Boom Slewing Crane Ship Deck Equipment
