Hydraulic Full Knuckle Telescopic Boom Crane For Limit Deck Space Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Boom Type: | Knuckle & Telescope Boom | Working Temperature: | -40 To 50℃ Etc. |
|---|---|---|---|
| Slewing: | 0-360° | Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA | ||
| Highlight: | offshore knuckle boom crane,hydraulic telescopic boom crane,fishing telescopic boom crane |
||
Product Description
Hydraulic Full Knuckle Telescopic Boom Crane For Limit Deck Space Ship Deck Equipment
Description:
It is used on very limit deck area. Cranes are designed and manufactured for marine, offshore, fishing, fish farming, cargo handling, Navy, tugs, dredging, oil industry, yachts, research vessels, nuclear submarines, minesweepers, platform supply vessels or other fields.
Main Technical Specifications:
- Boom Type: Knuckle & Telescope Boom
- Working Temperature: -40 to 50℃ Etc.
- Slewing: 0-360°
- Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
| Safety Load KN |
Max Outreach m |
Lifting Speed m/min |
Slewing Speed m/min |
Luffing Time s |
Hoisting Height m |
| 10 | 6-20 | 15 | 1 | 60 | 30 |
| 15 | 8-22 | t | 15 | 60 | 30 |
| 20 | 5-24 | 15 | 1 | 60 | 30 |
| 30 | 8-25 | 15 | 0.9 | 70 | 30 |
| 50 | 12-25 | 15 | 0.75 | 80 | 30 |
| 80 | 12-25 | 15 | 0 75 | 100 | 40 |
| 100 | 12-25 | 15 | 0.75 | 110 | 40 |

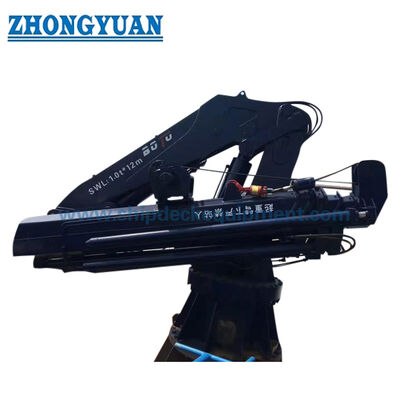

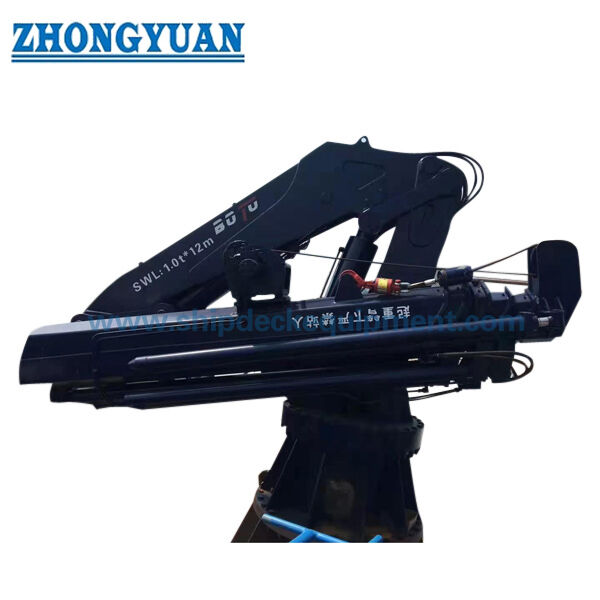

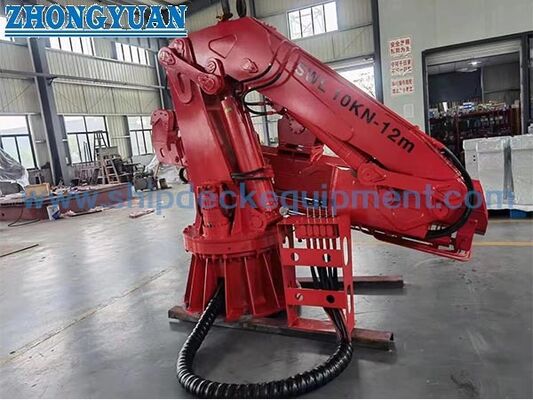

Drawing of Hydraulic Full Knuckle Telescopic Boom Crane For Limit Deck Space Ship Deck Equipment
