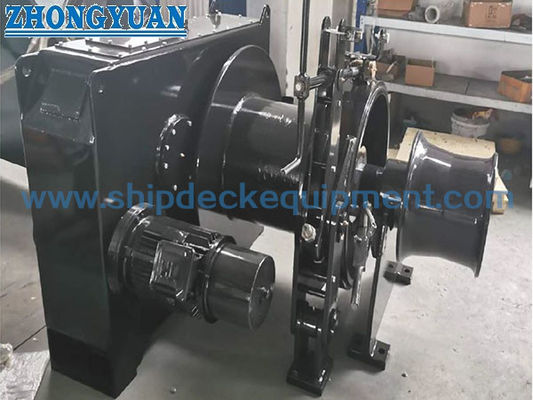

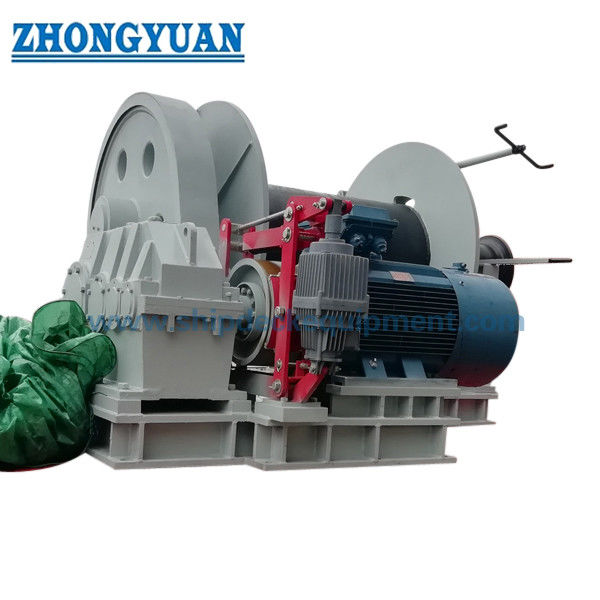

5–500kN Electric Mooring Winch for Ship Deck | Single Drum with Warping Head
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Safety Pull Capacity: | 5-800KN | Speed: | 4-20m/min |
|---|---|---|---|
| Warping Speed(m/min): | 9-18m/Min | Drum Capacity: | 40 To 250m |
| Motor Power: | Motor Power | Rope Dia: | 11 – 90 (mm) |
| Control Position: | Remote And Local Control | Optional: | Load Measuring, Rope Speed And Length Measuring Device |
| Power Supply: | AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH | Material: | Stainless Steel (Polished), Mild Steel |
| Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint | Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, RINA, IRS, RS, Etc |
| Highlight: | 12m/min Electric Mooring Winch,100kw Electric Mooring Winch,100kw Ship Deck Equipment |
||
Product Description
5–500kN Electric Mooring Winch for Ship Deck | Single Drum with Warping Head
Product Overview
Electric mooring winch designed for ship deck mooring operations, supporting both steel wire rope and synthetic rope.
Integrated single drum and warping head provides efficient rope handling and storage for port and offshore operations.
Quick Specifications
Rated Pull: 5–500 kN → Defines mooring capacity
Rated Speed: 4–12 m/min → Determines operation efficiency
Drum Capacity: 100–250 m → Defines rope storage
Motor Power: 1.2–85 kW → Depends on load
Rope Diameter: 8–58 mm → Compatibility
Auto Tension: Optional → Maintains constant tension
Main Technical Parameters
| Rated Pull (Ton/kN) | Rated Speed (m/min) | Drum Capacity (mm×m) | Motor Power (kW) |
| 0.5 / 5 | ≥12 | Φ8×100 | 3/1.2 |
| 1 / 10 | ≥12 | Φ10×150 | 4.3/1.7 |
| 2 / 20 | ≥12 | Φ15×150 | 8.5/3.5 |
| 3 / 30 | ≥12 | Φ17×150 | 11/11/7.5 |
| 4 / 40 | ≥15 | Φ18×150 | 16/16/11 |
| 5 / 50 | ≥15 | Φ20.5×180 | 22/22/16 |
| 7.5 / 75 | ≥15 | Φ26×200 | 30/30/22 |
| 8 / 80 | ≥15 | Φ26×200 | 30/30/22 |
| 10 / 100 | ≥15 | Φ30×200 | 45/45/30 |
| 15 / 150 | ≥15 | Φ30×200 | 45/45/30 |
| 16 / 160 | ≥15 | Φ32×250 | 60/60/45 |
| 20 / 200 | ≥9.6 | Φ40×250 | 45/45/30 |
| 25 / 250 | ≥9.6 | Φ44×250 | 60/60/45 |
| 31.5 / 315 | ≥7.8 | Φ52×250 | 60/60/45 |
| 40 / 400 | ≥7.8 | Φ56×250 | 85/85/64 |
| 45 / 450 | ≥6 | Φ56×250 | 85/85/64 |
| 50 / 500 | ≥7.8 | Φ58×250 | 85/85/64 |
Selection Guide
Step 1 – Select Rated Pull → Determines mooring force
Step 2 – Confirm Rope Diameter → Compatibility
Step 3 – Confirm Drum Capacity → Storage requirement
Step 4 – Select Speed → Efficiency
Step 5 – Select Auto Tension → Safety requirement
Step 6 – Confirm Power → Based on load
Structure & Components
Electric motor | Gearbox | Drum | Warping head | Brake | Control system
Custom Attributes
Rated Pull: 5–500 kN → Capacity
Speed: 6–12 m/min → Efficiency
Drum Capacity: 100–250 m → Storage
Motor Power: 1.2–85 kW → Depends on configuration
Auto Tension: Optional → Safety function
Inquiry Guide
Provide pull, rope diameter, drum capacity, speed, and control requirement.
How It Works
Motor drives drum, warping head assists line handling, optional auto tension maintains load.

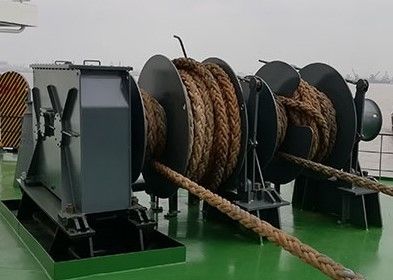

Applications
Ship deck mooring | Port operations | Offshore vessels
Certifications & Advantages
CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate;
High efficiency, flexible configuration, reliable performance.
Drawing & Photos
GA drawing | Photos | Installation layout
Ordering Information
MOQ: 1 Unit | Delivery Time: 120 Days | Payment: T/T, L/C | Customization: Available
FAQ
Q: Auto tension needed? A: Recommended for safety.
Drawing of Single Drum Single Warping End Electric Mooring Winch Ship Deck Equipment
