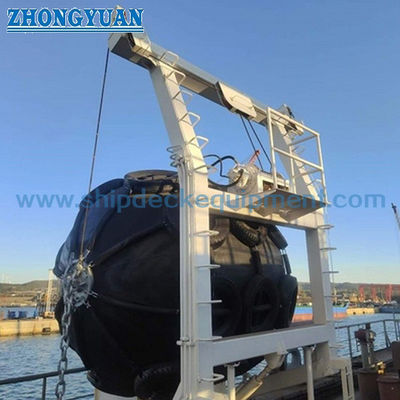

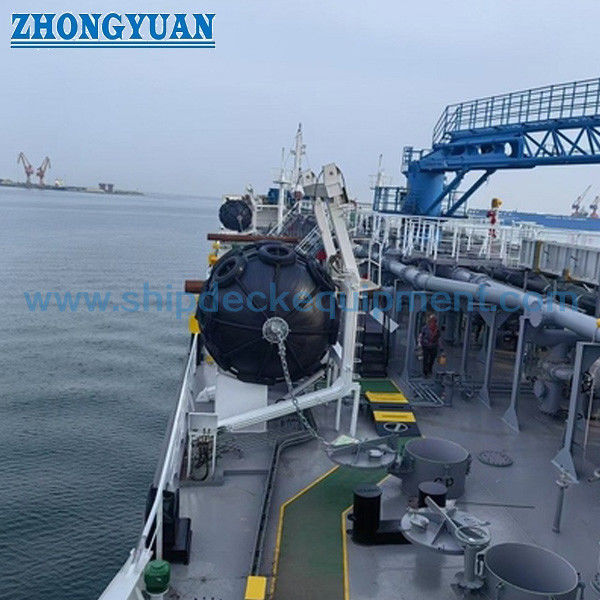

2.5–16T Hydraulic Fender Crane | Rubber Fender Davit for Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Material: | Square Tube | General Structure: | Foundation, Main Davit, Support, Rigging |
|---|---|---|---|
| Hydraulic Luffing: | Yes | Hoisting: | Eectric, Hydraulic |
| Applicable Fender: | Ø1500x3000mm To Ø4500x9000mm | Remote Control: | Yes |
| Certificate: | BV, DNV, ABS, LR, RMRS, CCS, RINA, Etc. | Temperature: | -40℃ To 45℃ |
| Power Supply: | 380V To 690V, 50 To 60 Hz, 3Ph | ||
| Highlight: | Hydraulic Pneumatic Rubber Fender Davit,Davit for Pneumatic Rubber Fender,Hydraulic Fender Crane Davit |
||
Product Description
2.5–16T Hydraulic Fender Crane | Rubber Fender Davit for Ship Deck Equipment
Product Overview
Hydraulic fender crane is a specialized marine lifting system designed for safe deployment, retrieval, and storage of pneumatic rubber fenders during ship-to-ship operations.
The system adopts an electro-hydraulic drive, providing high torque, smooth motion control, and reliable performance under dynamic offshore conditions.
It is widely applied on FSRU, FLNG, FSO, oil tankers, and offshore platforms where controlled fender handling is critical.
Quick Specifications
- Safe Working Load: 2.5–16 Ton → Determines lifting capacity for fender handling
- Outreach: 1.5–5 m → Defines working range from ship side
- Span: 3–9 m → Determines coverage area on deck
- Hoisting Speed: 5–12 m/min → Affects lifting efficiency and control
- Lowering Height: Up to 50 m → Defines vertical handling capability
- Power Range: 11–90 kW → Determined by SWL, outreach and operating conditions
- Drive Type: Electro-Hydraulic → Ensures high torque and stable performance
- Control System: Local Control Box / Remote Control → Enables safe operation
- Fender Size: Ø1500×3000 to Ø4500×9000 mm → Defines application compatibility
- Working Temperature: -40°C to +45°C → Suitable for harsh marine environments
Main Technical Parameters
| SWL (T) | Outreach (m) | Span (m) | Hoisting Speed (m/min) | Lowering Height (m) | Power Range (kW) |
| 2.5 | 1.5–3 | 3–5 | 5–12 | 50 | 11–18 |
| 5 | 2–4 | 4–6 | 5–12 | 50 | 18–30 |
| 10 | 3–5 | 5–8 | 5–12 | 50 | 30–55 |
| 16 | 3–5 | 6–9 | 5–12 | 50 | 55–90 |
Engineering Note
Hydraulic power is calculated based on SWL, outreach, hoisting speed, and actual operating conditions. Final configuration will be confirmed during technical evaluation.
Selection Guide
Step 1 – Select SWL → Determines lifting capacity
Step 2 – Confirm Fender Size → Determines crane configuration
Step 3 – Confirm Outreach → Defines working range
Step 4 – Confirm Hoisting Height → Determines lifting reach
Step 5 – Select Control Type → Local or remote operation
Step 6 – Confirm Installation Layout → Based on deck space and structure
Structure & Components
Crane arms | Hydraulic cylinders | Hydraulic power unit (HPU) | Winch system | Control console | Slewing base | Safety locking device
Custom Attributes
- SWL: 2.5–16 Ton → Defines lifting capacity
- Outreach: 1.5–5 m → Defines working range
- Span: 3–9 m → Defines deck coverage
- Hoisting Speed: 5–12 m/min → Defines efficiency
- Power Range: 11–90 kW → Depends on configuration
- Drive Type: Electro-Hydraulic → Ensures stable performance
- Control Type: Local / Remote → Provides operational flexibility
- Fender Size: Ø1500–Ø4500 mm → Defines compatibility
- Certification: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS → Meets marine standards
Custom Configuration & Inquiry Guide
Please provide fender size, SWL, outreach, hoisting height, power supply and control requirement.
We will provide model selection, GA drawing, and quotation.
How It Works
The crane deploys and retrieves fenders through a hydraulic winch and cylinder system. Slewing, lifting, and lowering are controlled by hydraulic valves ensuring smooth and safe operation.
Applications
Ship-to-ship transfer | FSRU / FLNG / FSO | Oil tankers | Offshore platforms | Port operations
Certifications & Advantages
Certifications: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS
Safe fender handling, high efficiency deployment, reduced manpower, stable hydraulic control, reliable operation in harsh offshore environments.
Drawing & Photos
General arrangement drawing | Structural drawing | Installation layout | Product photos
Ordering Information
MOQ: 1 Unit | Delivery Time: As per project | Payment: T/T, L/C | Customization: Available
FAQ
Q1: How to select correct fender crane?
A: Based on fender size, SWL, outreach and operating conditions.
Q2: Can it operate in harsh weather?
A: Yes, designed for offshore and extreme environments.
Drawing of Davit for Pneumatic Rubber Fender, Hydraulic Fender Crane,
