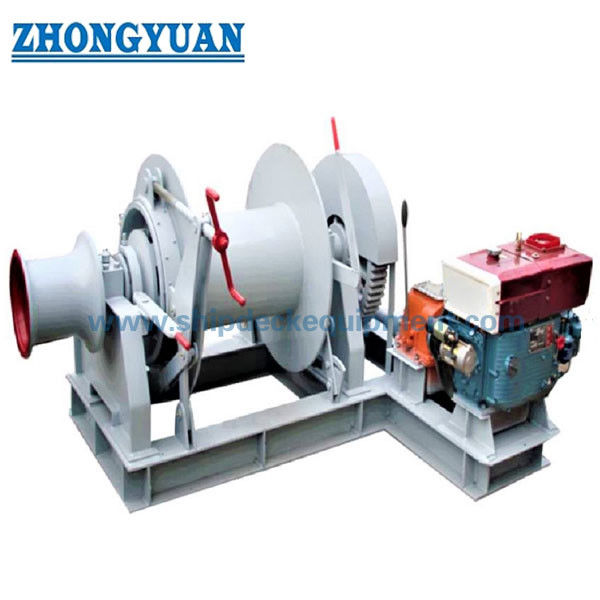

Diesel Engine Driven Anchor Winch with Single Drum Single Warping End
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Safety Pull Capacity: | 10-300KN | Speed: | 8-30m/min |
|---|---|---|---|
| Drum Capacity: | 40 To 250m | Motor Power: | 3 To 75 Kw |
| Rope Dia: | 11 – 90 (mm) | Control Position: | Remote And Local Control |
| Optional: | Load Measuring, Rope Speed And Length Measuring Device | Power Supply: | Diesel Engine |
| Material: | Mild Steel | Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint, Galvanized |
| Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate | ||
| Highlight: | 30m/Min engine driven winch,75kw 30m/Min engine powered winch,Mild Steel 75kw diesel engine winch |
||
Product Description
10-80kN Diesel Engine Driven Anchor Winch Single Drum | Marine Anchor Handling Equipment
Product Overview
Diesel engine driven anchor winch is designed for anchor handling operations on vessels with limited electrical power supply.
The system uses diesel engine drive to ensure independent and reliable operation in remote or offshore environments.
It is suitable for anchor lifting and releasing on workboats, barges,
Quick Specifications
• Working Load: 10-80 kN
• Speed: 8-16 m/min
• Drum Capacity: 100-250 m
• Wire Rope Diameter: 9.3-26 mm
• Drive Type: Diesel engine
• Drum Type: Single drum
• Warping End: Single
• Control: Local
• Material: Mild steel
• Surface Treatment: Sa2.5 + Epoxy coating
Main Technical Parameters
| Load (kN) | Speed (m/min) | Capacity (m) | Rope Dia (mm) | Power (kW) |
| 10 | 15 | 100 | 9.3 | 3 |
| 16 | 16 | 150 | 12.5 | 5.5 |
| 20 | 16 | 150 | 13 | 7.5 |
| 32 | 9.5 | 195 | 15.5 | 7.5 |
| 50 | 12 | 200 | 15.5 | 7.5 |
| 80 | 8 | 250 | 26 | 15 |
Selection Guide
Step 1 - Working Load: 10-80 kN | Step 2 - Rope Diameter: 9-26 mm | Step 3 - Speed: 8-16 m/min | Step 4 - Drive Type: Diesel engine | Step 5 - Control: Local | Step 6 - Installation: Deck mounted
Structure & Components
Structure & Components: Diesel engine | Gearbox transmission | Single drum | Wire rope system | Warping end | Brake system | Control panel | Base frame
Custom Attributes
Working Load: 10-80 kN | Rope Diameter: 9-26 mm | Speed: 8-16 m/min | Drive Type: Diesel | Drum Type: Single | Control: Local / Remote
Custom Configuration & Inquiry Guide
Working Load | Rope Diameter | Drum Capacity | Speed | Control Type | Installation Requirement
How It Works
The diesel engine drives the gearbox to rotate the drum, enabling controlled winding and releasing of the wire rope.
The system ensures stable anchor handling even without electrical power supply.
Applications
Applications: Workboats | Barges | Small ships
Certifications & Advantages
Certifications: CCS | NK | BV | ABS | DNV | LR | KR | RINA | IRS | RS
Advantages: Independent power system | Suitable for low power vessels | Reliable diesel drive | Compact structure | Easy maintenance
Drawing & Photos
• General arrangement drawing
• Anchor winch structure drawing
• Diesel drive layout

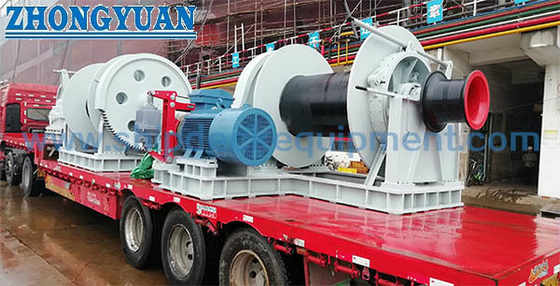

• Product photos
Ordering Information
• MOQ: 1 Unit
• Delivery Time: Based on project
• Payment: T/T, L/C
FAQ
Q1: Can it work without electricity?
A: Yes, powered by diesel engine.
Q2: Is it suitable for small vessels?
A: Yes, ideal for vessels with limited power.
Q3: Can configuration be customized?
A: Yes, customization available.
