17.5-50mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Anchor Windlass with Engine Selection
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate, Etc. |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | TT, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Anchor Chain Diameter: | Φ17.5 To 50mm | Rated Tension: | 9.5 To 103kN |
|---|---|---|---|
| Working Speed: | 9m/min | Support Load: | 38.5 To 617KN |
| Diesel Engine: | S1115, S4100, S2100 | Worm Gear Box: | WD190, Etc. |
| Gear Box: | 32F16A | Mooring Speed: | 9m/min |
| Number Gypsy: | Double Or Single | Color: | Customer Specified |
| Composition: | Mainly Composed Of Diesel Engine Main Engine And Electrical Starting System, Worm Gear Box, Gear Box, Base, Wall Frame, Anchor Sprocket, Clutch, Brake, Twisted Pair Cable Drum, Reducer, Anchor Brake, Roller, Etc. | Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, RINA, IRS, RS, CRS |
| Highlight: | 26kN marine anchor windlass,9m/min ship anchor windlass,Windlass Ship Deck Equipment |
||
Product Description

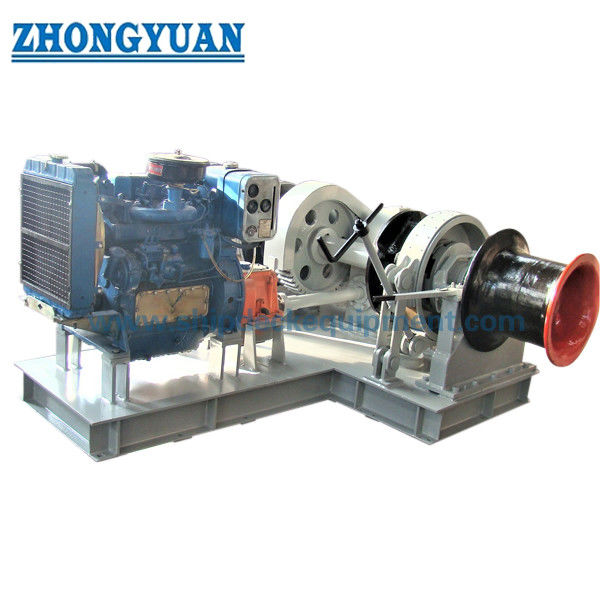

17.5-50mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Anchor Windlass with Engine Selection
Product Overview
A diesel engine driven marine anchor windlass is a type of ship deck equipment used for anchoring and mooring operations.
It consists of a diesel engine, gearbox, gypsy wheel, brake and clutch system, providing reliable pulling force and independent operation without relying on onboard electrical systems.
It is widely used in barges, cargo ships, and offshore vessels.
Quick Specifications & Contact us for model selection and quotation
- Chain Diameter: 28–50 mm
- Chain Grade: Grade 2 / Grade 3
- Drive Type: Diesel Engine
- Gypsy: Single / Double
- Warping Head: Optional
- Mooring Drum: Optional
Main Technical Parameters:
| Chain Size (mm) |
Gypsy Speed (m/min) |
Working Load (KN) |
Holding Capacity (KN) |
| 17.5 | ≥9 | 9.5 | 38.5 |
| 19/22 | ≥9 | 11.7/15.8 | 42/56 |
| 24/26 | ≥9 | 18.7/ 20.3 | 66.4/77.8 |
| 28/30 | ≥9 | 25.5/29.3 | 89.8/102.5 |
| 32 | ≥9 | 33.3 | 116 |
| 34 | ≥9 | 37.6 | 132 |
| 36/38 | ≥9 | 42.2/46.9 | 146.4/162.6 |
| 40/42 | ≥9 | 68/50 | 402/447 |
| 44/46 | ≥9 | 82.3/90 | 483/526 |
| 48/50 | ≥9 | 97/106.3 | 570/617 |
✔ Step 1: Select by Chain Size
Choose the windlass based on anchor chain diameter:
- 28–32 mm → Small / medium vessels
- 34–38 mm → Medium vessels
- 40–50 mm → Large vessels
✔ Step 2: Confirm Working Load
From the table above:
- 28–30 mm → approx. 25–29 kN
- 36–38 mm → approx. 42–47 kN
- 44–50 mm → approx. 82–106 kN
✔ Step 3: Engine Power Selection
The diesel engine power is selected based on working load and efficiency requirements.
Recommended Engine Power Range:
|
Chain Size (mm) |
Working Load (kN) |
Recommended Engine Power |
|---|---|---|
| 28–32 | 25–33 kN | 10–18 kW |
| 34–38 | 37–47 kN | 18–30 kW |
| 40–42 | 50–68 kN | 30–45 kW |
| 44–50 | 82–106 kN | 45–70 kW |
✔ Step 4: Engine Configuration Options
- Engine Brand: Weichai / Changchai / International brands
- Starting Method: Electric start
- Cooling: Water cooling
- Silencer: Included for low noise operation
✔ ✔ Engineering Note
The engine power is selected according to classification society rules and actual working conditions. Final configuration should be confirmed based on project requirements.
Structure & Components
- Diesel engine | Worm gearbox & transmission system | Gypsy wheel | Brake system | Clutch | Base frame | Warping head (optional) | Mooring drum (optional)
How It Works
The diesel engine drives the windlass through a gearbox or hydraulic system.
The gypsy wheel controls the anchor chain movement, while the brake and clutch ensure safe operation.
Applications
- Barge anchoring | Cargo ships | Offshore platforms | Fishing vessels | Port operations
Certifications & Advantages
Certifications
CCS / ABS / DNV / LR / BV / KR / RINA / IRS / RS / CRS
Advantages
- Independent diesel power
- Stable performance
- Cost-effective
- Easy maintenance
Drawing & Photos
General arrangement drawing
- Product photos
Ordering Information
- MOQ: 1 Unit
- Delivery Time: 90 Days
- Payment: T/T, L/C
- Customization: Available
FAQ
Q1: How to choose the correct engine power?
Based on chain size, working load, and operating conditions.
Q2: Can the engine brand be customized?
Yes, both local and international brands are available.
Q3: Is hydraulic drive available?
Yes, optional hydraulic system can be provided.
