OCIMF Type Single Point Mooring Chain Stopper Welded Mounting Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Material: | Mild Steel, C-Mn Steel, High Tensile Steel, Cast Steel | Mounting Type: | Welded Mounting |
|---|---|---|---|
| Nominal Chain Diameter: | 54~56mm, 76~78mm | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc |
| Highlight: | OCIMF mooring chain stopper,single point mooring chain stopper,Welded chain cable stopper |
||
Product Description

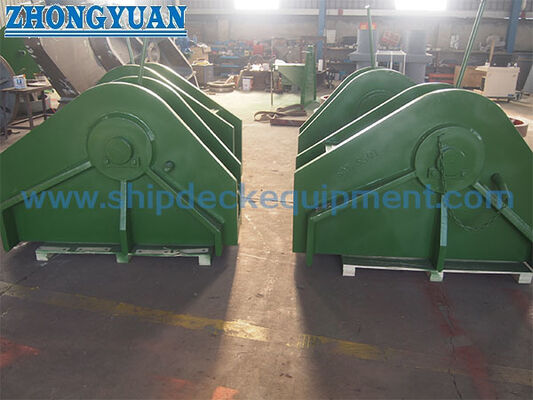

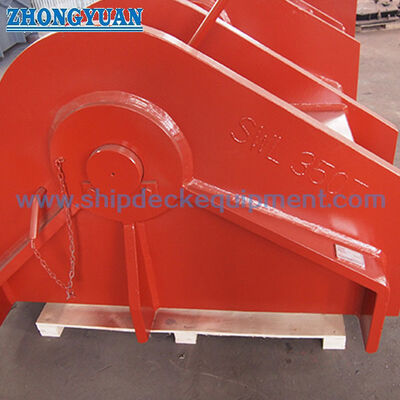

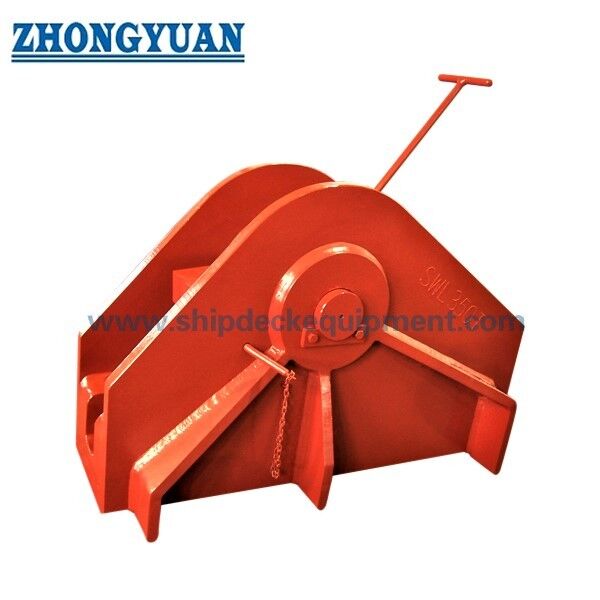

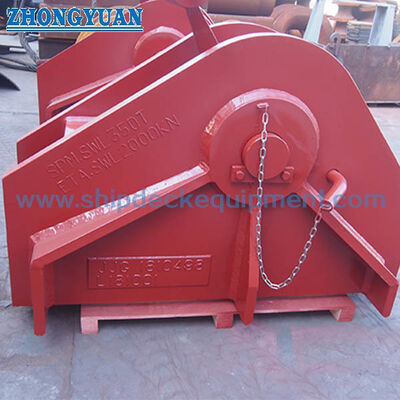

OCIMF Type Single Point Mooring Chain Stopper Welded Mounting Ship Towing Equipment
Description
OCIMF Type Single Point Mooring Chain Stopper is installed to clamp the chafing chain. It is strictly complying with standards, guidelines about safe mooring which are proposed by Oil Companies International Marine Forum. It has high quality, stable performance.
Main Technical Specification:
1. Material: Mild Steel, C-Mn Steel, High Tensile Steel, Cast Steel;
2. Mounting Type: Welded Mounting
3. Optional base foundation type
4. Nominal Chain Diameter:54~56mm, 76~78mm;
5. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.
6. Can be customized
Main Technical Parameters:
| Nominal Chain Dia. (mm) |
SWL | Dimensions (mm) | Weight (KG) |
||||
| L | B | H | H1 | b | |||
| 54-56 | 100T | 1,336 | 474 | 631 | 481 | 400 | 488 |
| 76-78 | 200T | 1,800 | 640 | 850 | 648 | 540 | 1,421 |
Drawing of OCIMF Type Single Point Mooring Chain Stopper Welded Mounting ShipTowing Equipment
