CB/T 3015 Engineering Vessel's Four Rollers Fairlead Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Standard: | CB* 3015-83 | Type: | Type A, 2 Vertical Rollers And 2 Bottom Horizontal Rollers |
|---|---|---|---|
| Roller Diameters: | 100mm To 300mm | Materials: | C-Mn Steel, Mild Steel, Stainless Steel |
| Applications: | Dredgers, Crane Ships, Piling Boats And Other Engineering Vessels | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished, Galvanized, Customized Surface Treatment Available |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA | ||
Product Description

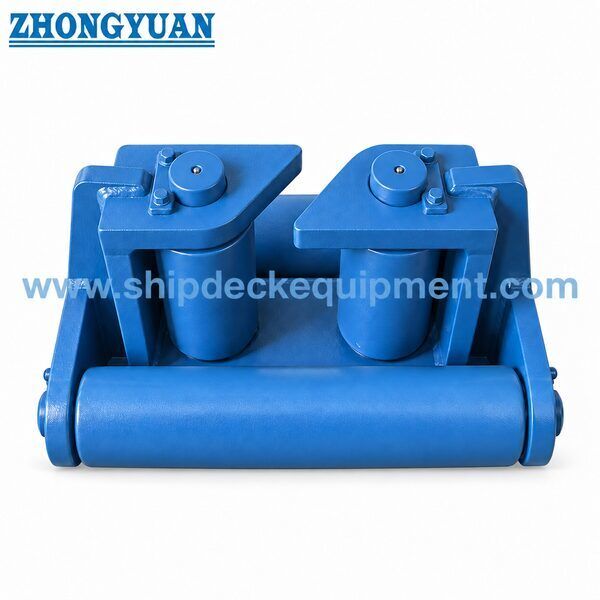

CB/T 3015 Engineering Vessel's Four Rollers Fairlead Ship Towing Equipment
Description
Engineering ship's Fairlead is widely applicable to offshore, engineering barge, dredgers, crane ships, piling boats and other vessels. It is produced according to the latest standard CB*3015. All fairleads obtain the certificates of quality. Type A engineering ship fairleads has 2 vertical rollers and 2 bottom horizontal rollers. Please feel free to contact us for more information.
Main Technical Specification:
- Standard: CB* 3015-83
- Type: Type A, 2 vertical rollers and 2 bottom horizontal rollers
- Roller diameters: 100mm to 300mm;
- Materials: C-Mn Steel, Mild Steel, Stainless Steel
- Applications: dredgers, crane ships, piling boats and other engineering vessels;
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameter:
| Roller Dia. D |
Horizontal Roller Dia. D1 |
Applicable Steel Wire Rope Dia. Φ |
L | B | H | b | h1 | h2 | l | d |
| 100 | 85 | 19.5 | 540 | 340 | 240 | 250 | 220 | 50 | 200 | 22 |
| 150 | 120 | 26 | 760 | 460 | 340 | 340 | 320 | 65 | 290 | 26 |
| 200 | 150 | 37.5 | 980 | 580 | 430 | 430 | 410 | 80 | 380 | 32 |
| 250 | 200 | 176 | 1220 | 740 | 520 | 540 | 500 | 110 | 480 | 39 |
| 300 | 250 | 370 | 1460 | 900 | 620 | 650 | 590 | 135 | 580 | 39 |
Drawing of CB/T 3015 Engineering Vessel's Four Rollers Fairlead Ship Towing Equipment
