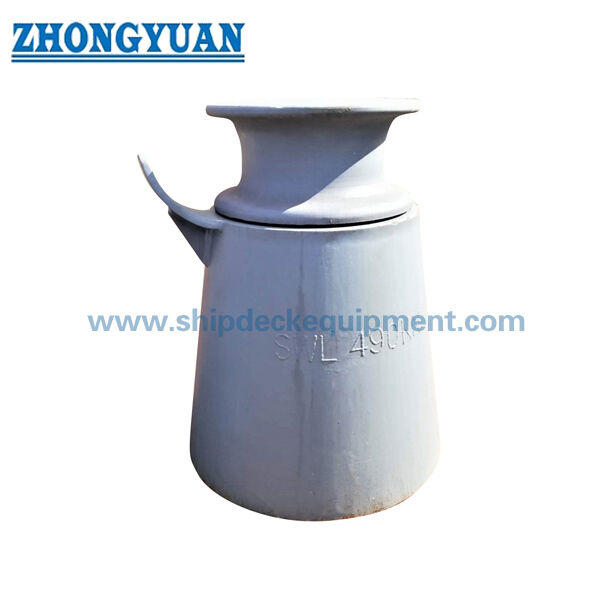

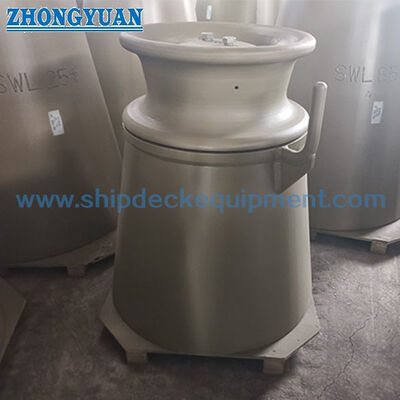

ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Technical Standard: | ISO 13776:2012 | SWL: | 265KN To 1942KN (θ=90°), 186KN To 1373KN (θ=0°) |
|---|---|---|---|
| Type: | Type A, B, C | Nominal Size: | 150-500 Mm |
| Roller No.: | Single Roller | Materials: | High Tensile Steel, Stainless Steel, Casting Steel, Nodular Cast Iron |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available | Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, Etc |
Product Description
ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment
Description
ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment is an important mooring equipment changing the direction & reducing the abrasion of mooring ropes.
Types of fairleads we supply:ISO 13776:2012, DIN 81907:1997-12 Pedestal Cleat Fairlead (Form A&B),CB*436-2000 Pedestal Cleat Fairlead with single roller (type A& B).We can also provide the customized fairleads according to customer’s special requirement.
Main Technical Specification:
- Technical Standard: ISO 13776:2012
- SWL: 265KN to 1942KN (θ=90°), 186KN to 1373KN (θ=0°),
- Type: Type A, B, C
- Nominal Size: 150-500 mm;
- Roller No.: Single Roller
- Materials: High Tensile Steel, Stainless Steel, Casting Steel, Nodular Cast Iron;
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, Etc.
- Can be Customized
Main Technical Parameter:
|
Nominal size Dn |
D1 |
D2 |
d |
h |
h1 |
t1 |
t2 |
t3 |
Welding leg length | ||||||||
| Type A& B | Type C | Z1 | Z2 | ||||||||||||||
| 150 | 220 | 230 | 71,5 | 81,5 | 200 | 100 | 16 | 10 | 16 | 8 | 5 | ||||||
| 200 | 288 | 300 | 93,5 | 102,5 | 200 | 100 | 20 | 12 | 20 | 10 | 6 | ||||||
| 250 | 357 | 370 | 113,5 | 119,5 | 200 | 100 | 22 | 12.5 | 22 | 11 | 6 | ||||||
| 300 | 417 | 430 | 128,5 | 130,5 | 225 | 125 | 24 | 13 | 24 | 12 | 6,5 | ||||||
| 350 | 472 | 490 | 145,5 | 152,5 | 225 | 125 | 26 | 17 | 26 | 15 | 8,5 | ||||||
| 400 | 540 | 560 | 154,5 | 164,5 | 250 | 150 | 28 | 18 | 28 | 17 | 9 | ||||||
| 450 | 600 | 620 | 167,5 | 179,5 | 250 | 150 | 30 | 20 | 30 | 20 | 10 | ||||||
| 500 | 655 | 680 | 178,5 | 195,5 | 250 | 150 | 32 | 22 | 34 | 23 | 11 | ||||||
|
Nominal size Dn |
SWL |
Calculated weight (kg) (For Reference only) |
|||||||||||||||
| θ=90° | θ=00 | ||||||||||||||||
| (Kn) | (ton) | (kN) | (ton) | H=500 | H=1000 | H=1500 | |||||||||||
| 150 | 265 | 27 | 186 | 19 | 55 | 115 | 198 | ||||||||||
| 200 | 441 | 45 | 314 | 32 | 86 | 169 | 278 | ||||||||||
| 250 | 579 | 59 | 412 | 42 | 113 | 210 | 335 | ||||||||||
| 300 | 726 | 74 | 510 | 52 | 145 | 256 | 395 | ||||||||||
| 350 | 1040 | 106 | 736 | 75 | 201 | 358 | 552 | ||||||||||
| 400 | 1246 | 127 | 883 | 90 | 255 | 436 | 657 | ||||||||||
| 450 | 1599 | 163 | 1128 | 115 | 314 | 530 | 791 | ||||||||||
| 500 | 1942 | 198 | 1373 | 140 | 383 | 636 | 938 | ||||||||||
|
a Welding with chamfering is available based on the same welding volume/ strength b θ is the relative angle of ropes on the pedestal fairlead (Refer to Annex A) c SWL 1s the maximum applicable rope tension based 90° (θ= 90 °) and 180° (θ=0 °) deflection of rope direction by pedestal fairlead. SWLs shown in the Table are for reference only. "SWL" may be adjusted depending on the actual loading conditions, and the actual marking is to be per the agreement between the user and the manufacturer. d Calculated weight is for reference excluding steel roller on the pedestal fairlead. e d is to be decided depend on the type of steel roller (Type A &Band Type C) as specified in ISO 13755 Steel rollers |
|||||||||||||||||
Drawing of ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment
