CB/T 436 Type B Ship Pedestal Roller Fairlead With Cleat Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Roller Diameters: | 150mm~450mm | Roller No.: | Single Roller |
|---|---|---|---|
| Roller Weight: | 24.8kg~310kg | Base Weight: | 129kg~452kg |
| Materials: | Mild C-Mn Steel, Stainless Steel, Casting Steel, Cast Iron | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Customized |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc. | Technical Standard: | CB/T 436-2000; |
| Highlight: | Type B Single Roller Fairlead,Single Roller Fairlead With Cleat,CB/T 436-2000 Ship Towing Equipment |
||
Product Description

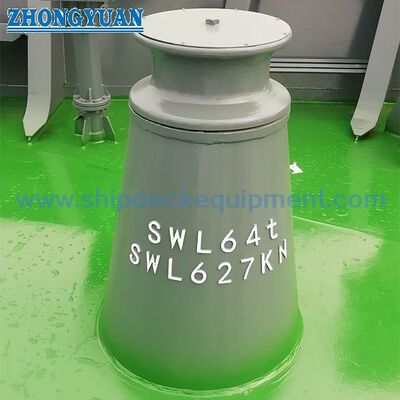

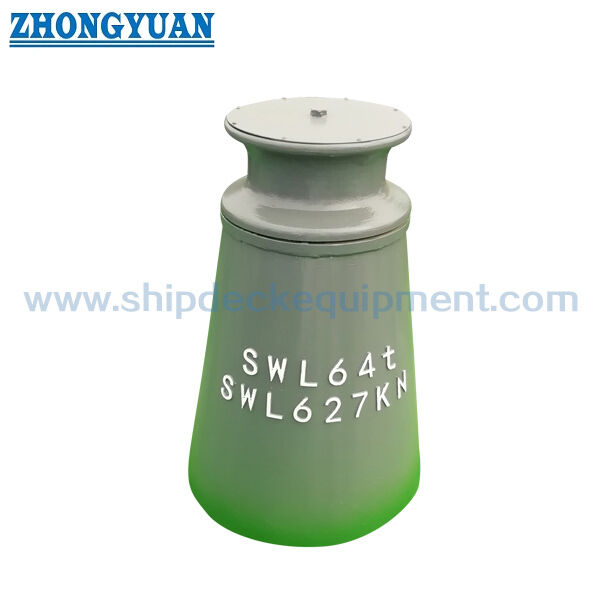

CB/T 436 Type B Ship Pedestal Roller Fairlead With Cleat Ship Towing Equipment
Description:
CB*436-2000 cleat fairlead with single roller has type A and B. CB*436-2000 type Bfitted with CB3861 roller. All weld and surface are ground smoothly.
Main technical specification:
1. Technical Standard: CB/T 436-2000;
2. Type B with CB/T 3861 standard roller
3. Roller Diameters: 150mm~450mm
4. Roller No.: Single Roller
5. Roller Weight: 24.8kg~310kg
6. Base Weight: 129kg~452kg
7. Materials: Mild C-Mn Steel, Stainless Steel, Casting Steel, Cast Iron
8. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.
9. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
10.Can be Customized
Main technical Parameter:
| Roller Dia. |
Applicable Wire Rope Dia. (Max.) (For reference only) |
Dimensions | Weight kg |
|||||||||||||||||
| Fiber Rope Dia. |
Hemp Rope Dia. |
SWR (GB /T 8918) Strength 1570 Mpa |
a | D1 | D2 | D3 | D4 | H | H1 | K | K1 | L | s | t | T1 | Roller | Pedestal | |||
| 6X24 | 6X37 | |||||||||||||||||||
| 150 | 32 | 45 | 16~18 | 14~16 | 60 | 240 | 90 | 85 | 264 | 154 | 30 | 9 | 7 | 75 | 5 | 12 | 8 | 24. 8 | 129 | |
| 200 | 40 | 55 | 22. 0 | 20 | 60 | 310 | 115 | 110 | 338 | 186 | 30 | 10 | 8 | 85 | 5 | 14 | 10 | 49. 3 | 178 | |
| 250 | 45 | 65 | 24 | 24. 0 | 80 | 380 | 135 | 130 | 408 | 230 | 35 | 10 | 8 | 100 | 6 | 14 | 10 | 92. 0 | 201 | |
| 300 | 50 | 70 | 30. 0 | 28 | 80 | 440 | 155 | 150 | 472 | 255 | 35 | 13 | 10 | 100 | 7 | 16 | 12 | 127. 0 | 265 | |
| 350 | 55 | 75 | 38 | 34 | 80 | 500 | 175 | 170 | 536 | 271 | 35 | 13 | 10 | 100 | 7 | 18 | 14 | 168. 0 | 332 | |
| 400 | 65 | 85 | 40~42 | 38~40 | 100 | 560 | 185 | 180 | 600 | 307 | 40 | 14 | 12 | 100 | 7 | 20 | 16 | 252,5 | 401.3 | |
| 450 | 80 | 95 | 44 | 42~44 | 100 | 630 | 210 | 205 | 670 | 316 | 40 | 14 | 12 | 120 | 7 | 20 | 16 | 310,0 | 452. 0 | |
Drawing of CB/T 436 Type B Ship Pedestal Roller Fairlead With Cleat Ship Towing Equipment
