DIN 82607:1995-1 Stainless Steel Double Bitt Bollard Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Technic Standard:: | DIN82607:1995-1 | Type:: | DIN-1, DIN-2, DIN-3, DIN-5, DIN-8, DIN-12, DIN-20, DIN-32; |
|---|---|---|---|
| Materials:: | Mild Steel, C-Mn Steel, Stainless Steel, Also Can Supply Special Steel For Icebreaker. | Nominal Diameters:: | 140 To 560 Mm; |
| Weight:: | 21 To 770kg; | Surface Treatment:: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Mirror Or Satin Polished, Polished, Galvanized, |
| SWL Range:: | 10-320KN; | Classification Certificates：: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, |
Product Description

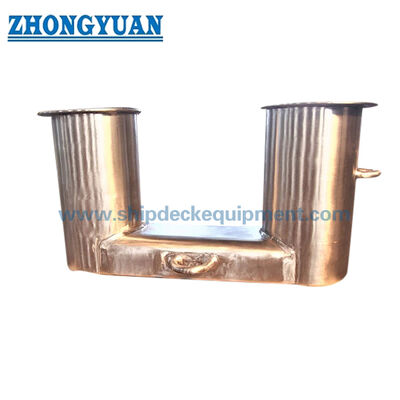

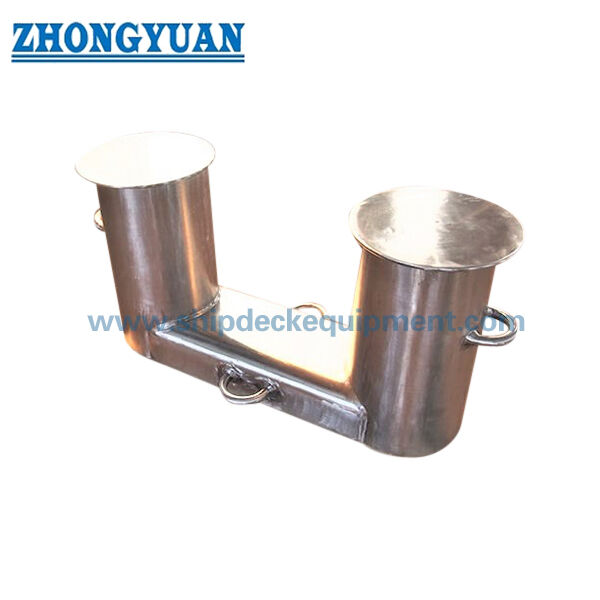

DIN 82607:1995-1 Stainless Steel Double Bitt Bollard Ship Towing Equipment
Description:
DIN 82607:1995-1 stainless steel double bitt bollard ship towing equipment is designed and shaped according to berthing capacity, wharf structure to meet the safety and convenience for the dock, mooring, shifting berth, turning around. Its' appearance ropes are wire rope, manila and sisal fiber rope, synthetic rope. Also we can provide you other standard of marine bollards.
Main Technical Specification:
- Technic Standard: DIN82607:1995-1
- Type: DIN-1, DIN-2, DIN-3, DIN-5, DIN-8, DIN-12, DIN-20, DIN-32;
- Materials: Mild Steel, C-Mn Steel, Stainless Steel, also can supply special steel for icebreaker.
- Nominal Diameters:140 to 560mm;
- Weight: 21 to 770kg;
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
- SWL Range: 10-320KN;
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS,
Main Technical Parameter:
| Type |
Max. Towing Load KN |
d1 ×s1 | b | d2 | d3 | e±10 | h1 | h2 | h3 | h4 | h5 | r | s2 | s3 | u | a1 | a2 |
Weight (kg) ≈ |
| DN-1 | 10 | 139.7×6.3 | 130 | 160 | - | 430 | 370 | 105 | 25 | - | 55 | 40 | 5 | 18 | - | 3.5 | 4 | 18 |
| DN-2 | 20 | 219,1x 8 | 180 | 240 | - | 570 | 475 | 115 | 35 | - | 60 | 50 | 6 | - | 27 | |||
| DN-3 | 32 | 273 x10 | 250 | 300 | - | 700 | 570 | 135 | 45 | - | 75 | 60 | 8 | 25 | - | 4 | 50 | |
| DN-5 | 50 | 323.9x10 | 300 | 355 | 150 | 880 | 670 | 150 | 60 | 85 | 85 | 70 | 70 | 85 | ||||
| DN-8 | 80 | 355.6 x 14,2 | 330 | 390 | 170 | 1050 | 780 | 175 | 75 | 105 | 105 | 80 | 10 | 80 | 5 | 156 | ||
| DN-12 | 120 | 457 x16 | 420 | 490 | 210 | 1200 | 860 | 195 | 90 | 130 | 120 | 90 | 16 | 35 | 90 | 6 | 259 | |
| DN-30 | 200 | 508 x17,5 | 470 | 545 | 235 | 1350 | 970 | 230 | 115 | 155 | 150 | 100 | 100 | 7 | 376 | |||
| DN-32 | 320 | 559 x20 | 530 | 600 | 255 | 1400 | 1 000 | 270 | 145 | 180 | 110 | 110 | 649 |
Drawing of DIN 82607:1995-1 Stainless Steel Double Bitt Bollard Ship Towing Equipment
