NS 2584 Double Bitts Bollard Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Technical Standard: | NS 2584-1977 | Nominal Diameters: | 125 To 710mm |
|---|---|---|---|
| SWL: | 45-815 KN | Material: | Tube, Plate, Mild Steel; Stainless Steel |
| Weight: | 25.9 To 1532 Kg | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Mirror Or Satin Polished, Polished, Galvanized, Customized Surface Treatment Available |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc. | ||
Product Description

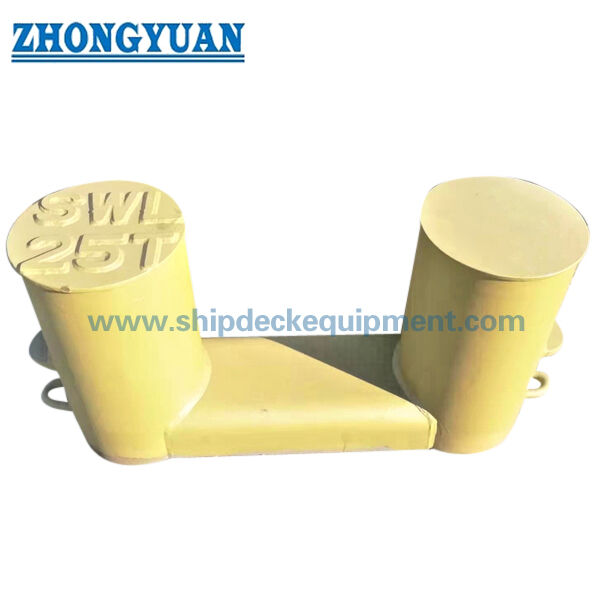

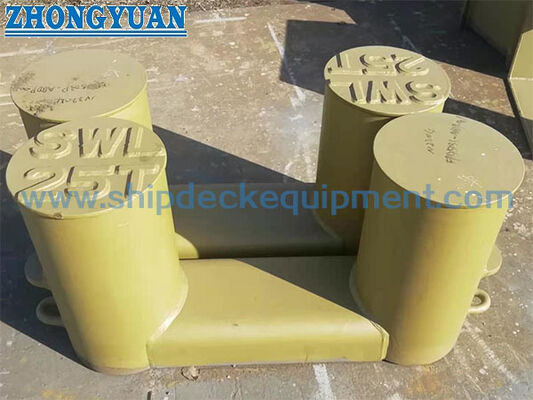

NS 2584 Double Bitts Bollard Ship Towing Equipment
Description:
NS 2584 Double Bitts Bollard Ship Towing Equipment is double bitts bollard. Bollard in accordance with DIN standard are in principle approved by DNV and LR. approval of the China Classification Society. The bollards can be loaded with two mooring ropes each with a breaking strength i=not exceeding the values given in table below. NS 2584 bollard can be used either mooring or towing purpose. We can provide bollard according to your specific requirements.
Main Technical Specification:
1. Technical Standard: NS 2584-1977
2. Nominal Diameters: 125 to 710mm;
3. SWL: 45-815 KN
4. Material: Tube, Plate, Mild Steel; Stainless Steel;
5. Weight: 25.9 to 1532 kg;
6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameter:
| Nominal size |
Bitts d1 × s |
Bitts d1 × s |
a1 | a2 | b1 | C | d2 | e | h | k | I1 | I2 | t1 | Half link fastening |
| 125 | 139,7 x10 | 140x10 | 4 | 5 | 20 | 80 | 170 | 165 | 250 | 15 | 315 | 455 | 6 | 1 |
| 160 | 168,3x10 | 168x10 | 4 | 5 | 24 | 90 | 200 | 195 | 300 | 15 | 400 | 568 | 6 | 1 |
| 200 | 219,1x12,5 | 219x12 | 5 | 6 | 32 | 100 | 260 | 250 | 400 | 15 | 500 | 719 | 6 | 1,6 |
| 250 | 273 x12,5 | 273x12 | 5 | 6 | 40 | 125 | 330 | 315 | 500 | 15 | 630 | 903 | 10 | 1,6 |
| 315 | 323,9x16 | 324x16 | 6 | 8 | 48 | 150 | 390 | 375 | 600 | 20 | 800 | 1124 | 10 | 2,5 |
| 400 | 406,4x17,5 | 406x16 | 8 | 9 | 56 | 175 | 480 | 435 | 700 | 20 | 1000 | 1406 | 10 | 4 |
| 500 | 508 x25 | 508x22 | 10 | 9 | 72 | 200 | 600 | 515 | 830 | 25 | 1250 | 1758 | 12 | 4 |
| 630 | 610 x25 | 610x22 | 10 | 9 | 88 | 225 | 720 | 615 | 1000 | 25 | 1570 | 2180 | 16 | 4 |
| 710 | 711 x28 | 711x25 | 10 | 9 | 96 | 250 | 830 | 675 | 1100 | 25 | 1750 | 2461 | 16 | 4 |
| Nominal size |
Maximum load in bollard | Weight | Code No. | |||
| when mooring | when towing | |||||
| kN | (Mp) | kN | (Mp) | kg | ||
| 125 | 45 | (4,5) | 130 | (13,0) | 25,9 | |
| 160 | 55 | (5,5) | 155 | (15,5) | 37,2 | |
| 200 | 100 | (10,0) | 285 | (28,5) | 75,2 | |
| 250 | 130 | (13,0) | 365 | (36,5) | 124 | |
| 315 | 205 | (20,5) | 540 | (54,0) | 230 | |
| 400 | 280 | (28,0) | 740 | (74,0) | 356 | |
| 500 | 510 | (51,0) | 1300 | -130 | 723 | |
| 630 | 615 | (61,5) | 1550 | -155 | 1084 | |
| 710 | 815 | (81,5) | 2150 | -215 | 1532 | |
Drawing of NS 2584 Double Bitts Bollard Ship Towing Equipment
