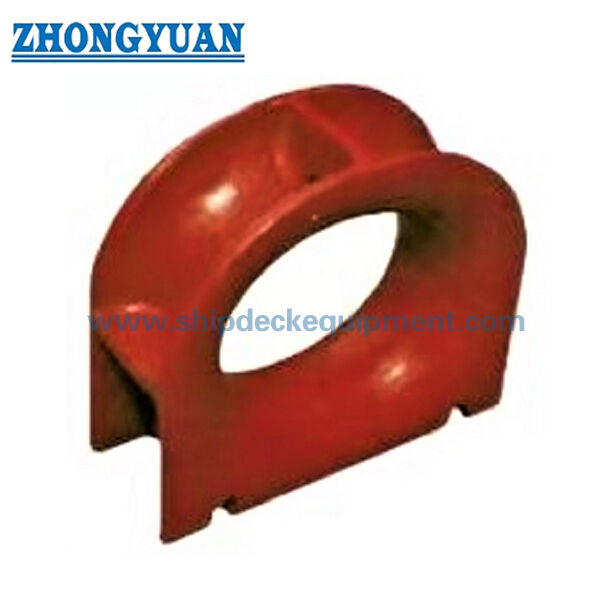

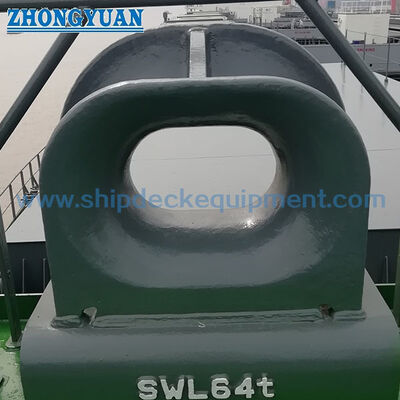

ISO 13713 Type A Casting Steel Deck Mounted Mooring Chock Ship Towing Equipment



Description:

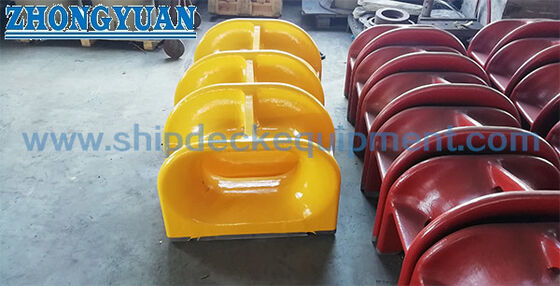

ISO 13713 type A casting steel deck mounted mooring chock is made according to the ISO 13713 standard and is a type of ship's mooring equipment installed on the shipside to lead the mooring rope from the ship's inboard to outboard. Type A is deck mounted chock and can be welded directly on upper deck or welded on the base sitting on the main deck. The mooring chocks are normally adopted for ships that use nylon or other synthetic ropes rather than wire ropes considering the small bending ratio (for wire rope see ISO13729 closed chocks). The tensile strength of the rope is reduced depending on the bend radius through the chock in accordance with the rope manufacture's guidelines. All surfaces, including welding, shall be free from any visible flaws or imperfections and in contact with the ropes, shall be free from surface roughness or irregularities likely to cause damage to the ropes by abrasion. The chock should be coated externally with an anti-corrosion protective finish.



Main Technical Specification:

1. Standard: ISO 13713-2020

2. Type: A; Deck mounted

3. SWL Range: 36-140T;

4. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.

5. Weight: 73 to 396kg;

6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.

7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS



Main Technical Parameter:

Nominal size
L x H
I1 I2 I3 B H1 H2 R R1 R2
250 X 200 100 250 444 160 377 80 100 197 80
300 X 250 110 300 536 200 468 100 125 243 100
350 X 250 125 350 608 220 489 110 125 254 110
400 X 250 135 400 682 240 511 120 125 266 120
450 X 250 150 450 760 260 535 130 125 280 130
500 x 250A 175 500 832 280 556 140 125 291 140
500 x 250B 175 500 840 280 560 140 125 295 140
Nominal size
L x H
R3 R4 Rs T T1 Welding leg length a
z1
SWL b
kN
SWL b
ton
Calculated weight c
kg
250 X 200 46 20 15 34 18 8,5 353 36 73
300 X 250 64 25 20 36 20 9 491 50 121
350 X 250 72 30 20 38 20 9,5 589 60 151
400 X 250 78 30 20 42 23 10,5 736 75 200
450 X 250 80 30 20 50 28 12,5 981 100 280
500 x 250A 88 30 20 52 30 13 1128 115 338
500x 250B 80 30 20 60 36 15 1373 140 396
a The welding method may be changed based on the same welding volume/strength .
b The SWLs shown are for reference only.
The "SWL" which is marked on the fitting may be adjusted depending on the actual loading cond1t10ns of mooring rope under the agreement between the user and the manufacturer.
C The calculated weight (mass) is for reference only.
