ISO 13767 Shipside 2 Rollers Fairlead With Seat Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Technical Standard: | ISO 13767-2012, Roller Standard ISO 13755 | Type: | 2roller Type/3 Roller Type |
|---|---|---|---|
| Roller Diameters: | 150~500mm | Roller No.: | 2/3 Rollers |
| Roller Weight: | 126~1618kg | Materials: | Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc |
Product Description

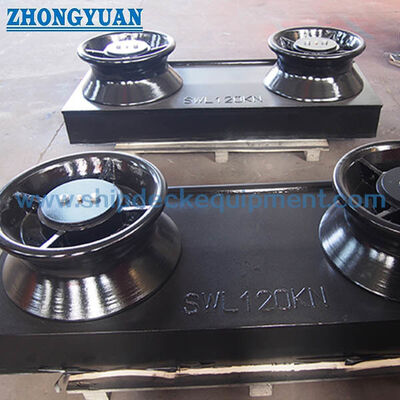

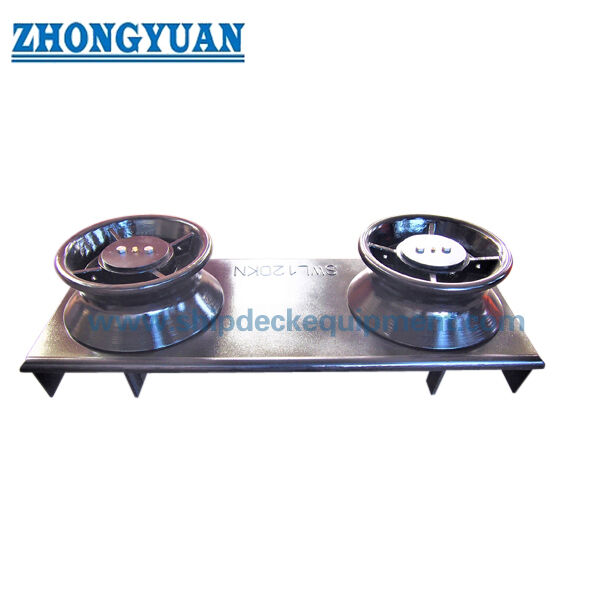

ISO 13767 Shipside 2 Rollers Fairlead With Seat Ship Towing Equipment
Description:
ISO 13767 Shipside 2 rollers Fairlead With seat is used for guide of mooring rope of ships. Depending on the construction, roller fairleads are to be classified as following two types : 2 roller type;3 roller type. The materials of components are to be used for manufacturing the roller fairleads : Seat - Weldable steel plates having a yield point of not less than 235 N/mm2.
Main Technical Specifications:
- Technical Standard: ISO 13767-2012, Roller Standard ISO 13755
- Type: 2roller type/3 roller type
- Roller Diameters: 150~500mm
- Roller No.: 2/3 Rollers
- Roller Weight:126~1618kg
- Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
- Can be Customized
Main Technical Parameters:
|
Nominal size Dn |
2-roller type | 3-roller type |
l1 |
l2 |
P |
SWL | |||||
|
l |
W |
l |
W |
=90 | =20 | ||||||
| (kN) | (ton) | (kN) | (ton) | ||||||||
| 150 | 570 | 770 | 870 | 1 070 | 300 | 135 | 200 | 260 | 26 | 186 | 19 |
| 200 | 740 | 990 | 1140 | 1390 | 400 | 170 | 250 | 437 | 45 | 314 | 32 |
| 250 | 910 | 1210 | 1410 | 1710 | 500 | 205 | 300 | 574 | 58 | 412 | 42 |
| 300 | 1070 | 1420 | 1670 | 2020 | 600 | 235 | 350 | 710 | 72 | 510 | 52 |
| 350 | 1230 | 1610 | 1930 | 2310 | 700 | 265 | 380 | 1025 | 104 | 736 | 75 |
| 400 | 1400 | 1780 | 2200 | 2580 | 800 | 300 | 380 | 1230 | 125 | 883 | 90 |
| 450 | 1560 | 1940 | 2460 | 2840 | 900 | 330 | 380 | 1571 | 160 | 1128 | 115 |
| 500 | 1720 | 2100 | 2720 | 3100 | 1000 | 360 | 380 | 1913 | 195 | 1373 | 140 |
|
a. is the relative angle of ropes on the roller fairlead. b, SWL is the maximum applicable rope tension based on ( = ) and 16 ( = 2 ) deflection of rope direction by roller fairlead. SWLs shown in the Table are for reference only. These are based on the loadings as mentioned in Annex A. SWL may be adjusted depending on the actual loading conditions, and the actual marking is to be per the agreement between the user and the manufacturer. c. P and W is for reference. The opening size on the shell or bulwark is to be determined considering overhauling space of the roller. |
|||||||||||
| Nominal size Dn |
A | B | C | R | d type A & B |
d type C |
h1 | t1 | t2 | Welding Leg Length Z1 |
Welding Leg Length Z2 |
Welding Leg Length Z3 |
Calculated (kg) 2 rollers type |
Calculated (kg) 3 rollers type |
| 150 | 145 | 165 | 50 | 20 | 71,5 | 81,5 | 100 | 10 | 12 | 8 | 5 | 8 | 126 | 171 |
| 200 | 182 | 200 | 50 | 20 | 93,5 | 102,5 | 100 | 12 | 14 | 10 | 6 | 10 | 191 | 265 |
| 250 | 225 | 235 | 50 | 25 | 113,5 | 119,5 | 100 | 15 | 16 | 11 | 7,5 | 12 | 286 | 404 |
| 300 | 256 | 265 | 50 | 25 | 128,5 | 130,5 | 125 | 16 | 18 | 12 | 8 | 13 | 367 | 525 |
| 350 | 296 | 295 | 50 | 30 | 145,5 | 152,5 | 125 | 21 | 24 | 15 | 10,5 | 17 | 569 | 820 |
| 400 | 333 | 330 | 70 | 30 | 154,5 | 164,5 | 150 | 23 | 26 | 17 | 11,5 | 18 | 719 | 1048 |
| 450 | 371 | 360 | 70 | 35 | 167,5 | 179,5 | 150 | 26 | 28 | 20 | 13 | 21 | 912 | 1339 |
| 500 | 402 | 390 | 70 | 35 | 178,5 | 195,5 | 150 | 27 | 32 | 23 | 13,5 | 22 | 1097 | 1618 |
Drawings of ISO 13767 Shipside Roller Fairlead 2 rollers 3 Rollers Fairlead With Base Ship Towing Equipment
