CB/T 295 Type D Cargo Hold Open Type Mushroom Ventilation Marine Outfitting
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Technical Standard: | CB/T 295-2000 | Type: | D, Flange Type, Always Open |
|---|---|---|---|
| Nominal Size: | 250-1400mm | Materials: | Mild Steel, Stainless Steel, Bronze, Copper |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available. | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc. |
| Highlight: | CB T295 mushroom ventilation,Type D CB T295 mushroom ventilation,CB T295 Marine Outfitting |
||
Product Description

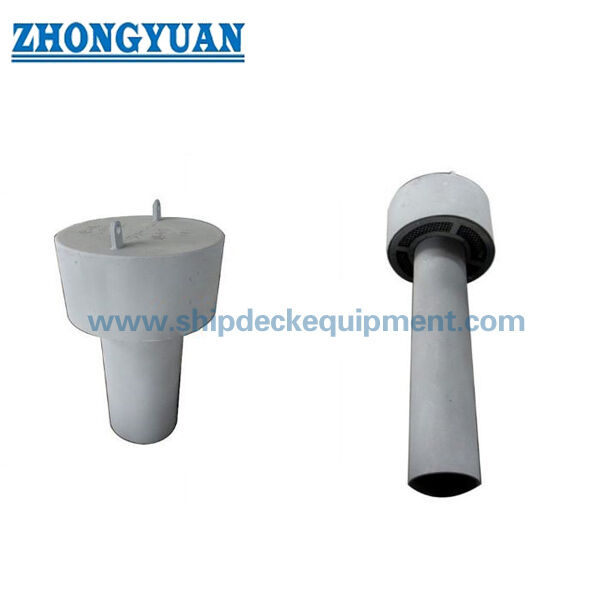

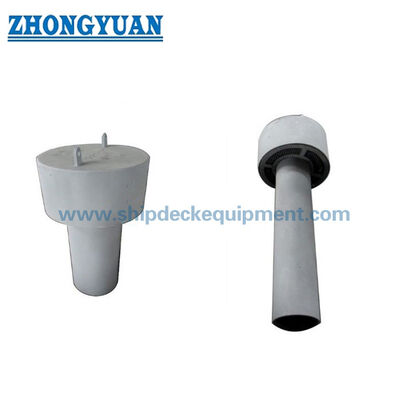

CB/T 295 Type D Cargo Hold Open Type Mushroom Ventilation
Description:
CB T295 type D mushroom Ventilation is generally used for kitchen and other accommodation area, It can also being used for cargo hold ventilator with shielded cabin for complying with Rule of Load Line requirement. It has flange to connect with fan or with damper to adjust the air volume and flow rate.
Main Technical Specification:
- Technical Standard: CB/T 295-2000
- Type: D, flange type, always open
- Nominal Size: 250-1400mm
- Materials: Mild Steel, Stainless Steel, Bronze, Copper
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
- Can be Customized
Main Technical Parameters:
|
Nominal diameter DN |
D1 | D2 | H | H1 | H2 | t |
Weight Kg |
| 250 | 440 | 200 | 220 | 90 | 195 | 6 | 42 |
| 300 | 530 | 265 | 52 | ||||
| 350 | 620 | 310 | 65 | ||||
| 400 | 710 | 280 | 345 | 105 | 205 | 81 | |
| 450 | 800 | 375 | 8 | 99 | |||
| 500 | 890 | 320 | 405 | 122 | |||
| 550 | 980 | 435 | 147 | ||||
| 600 | 1050 | 470 | 120 | 220 | 169 | ||
| 650 | 1160 | 500 | 194 | ||||
| 700 | 1240 | 520 | 218 | ||||
| 750 | 1320 | 540 | 233 | ||||
| 800 | 1410 | 560 | 140 | 240 | 299 | ||
| 850 | 1500 | 580 | 305 | ||||
| 900 | 1580 | 360 | 600 | 334 | |||
| 950 | 1670 | 620 | 358 | ||||
| 1000 | 1760 | 640 | 402 | ||||
| 1100 | 1930 | 680 | 496 | ||||
| 1200 | 2100 | 720 | 592 | ||||
| 1300 | 2270 | 760 | 645 | ||||
| 1400 | 2440 | 400 | 800 | 701 | |||
| Record: Ventilator weight does not include the weight of air duct | |||||||
Drawings of CB/T 295 Type D Cargo Hold Open Type Mushroom Ventilation Marine Outfitting
