OCIMF Type Single Point Mooring Chain Stopper Ship Towing Equipment

OCIMF Type Single Point Mooring Chain Stopper Ship Towing Equipment

Product Details:

Place of Origin: China
Brand Name: Zhongyuan
Certification: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number: Standard and Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: As per quotation
Packaging Details: Pallet or Customized
Delivery Time: As per offer
Payment Terms: TT, L/C, Etc.
Supply Ability: Satisfy clients needs
Get Best Price Contact Now

Detail Information

Material: Mild Steel, C-Mn Steel, High Tensile Steel, Cast Steel Mounting Type: Welded Mounting
Nominal Chain Diameter: 54~56mm, 76~78mm Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc
Highlight:

Welded CCS mooring chain stopper

,

CCS mooring chain stopper

,

CCS OCIMF chain cable stopper

Product Description

OCIMF Type Single Point Mooring Chain Stopper Ship Towing Equipment



Description

OCIMF Type Single Point Mooring Chain Stopper is installed to clamp the chafing chain. It is strictly complying with standards, guidelines about safe mooring which are proposed by Oil Companies International Marine Forum. It has high quality, stable performance.



Specification:

1. Material: Mild Steel, C-Mn Steel, High Tensile Steel, Cast Steel;

2. Mounting Type: Welded Mounting

3. Optional base foundation type

4. Nominal Chain Diameter:54~56mm, 76~78mm;

5. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.

6. Can be customized



Main Technical Parameters:

Nominal Chain
Dia. (mm)
SWL Dimensions (mm) Weight
(KG)
L B H H1 b
54-56 100T 1,336 474 631 481 400 488
76-78 200T 1,800 640 850 648 540 1,421

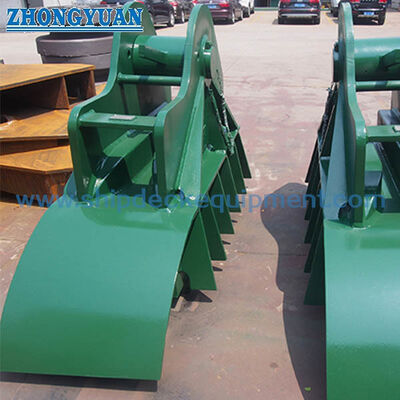

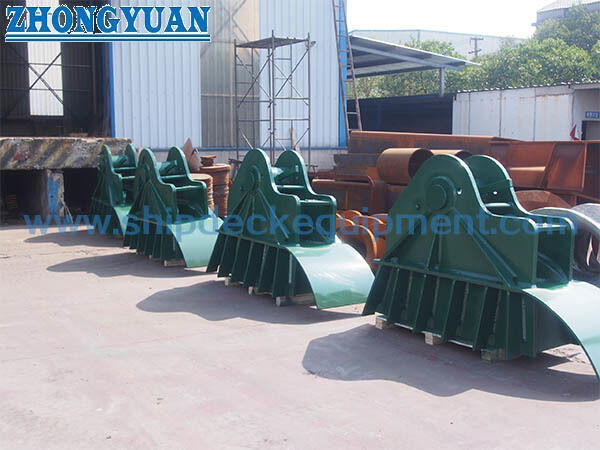

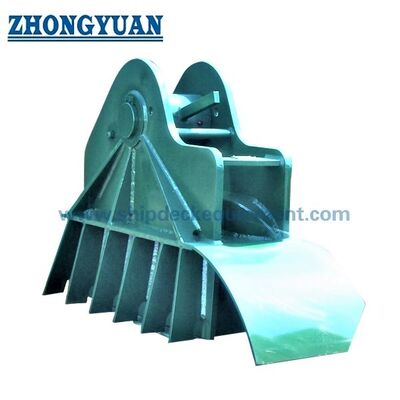

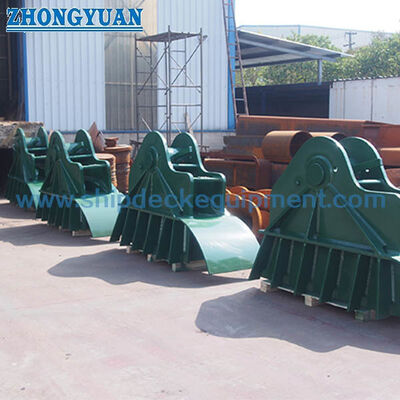

OCIMF Type Single Point Mooring Chain Stopper Ship Towing Equipment 0

Drawing of OCIMF Type Single Point Mooring Chain Stopper Ship Towing Equipment



OCIMF Type Single Point Mooring Chain Stopper Ship Towing Equipment 1



OCIMF Type Single Point Mooring Chain Stopper Ship Towing Equipment 2
