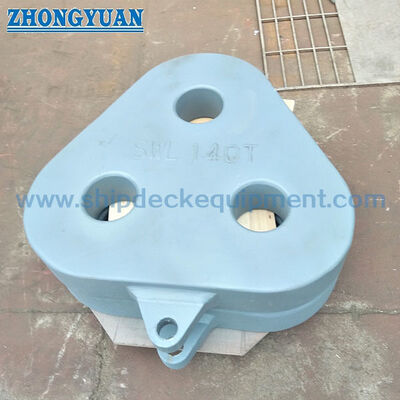

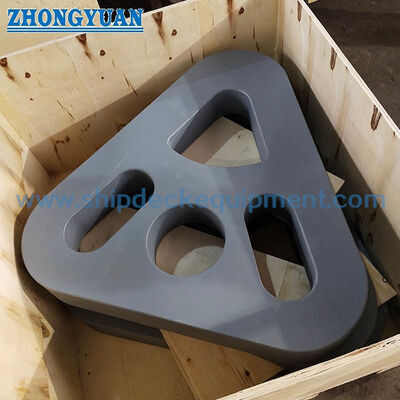

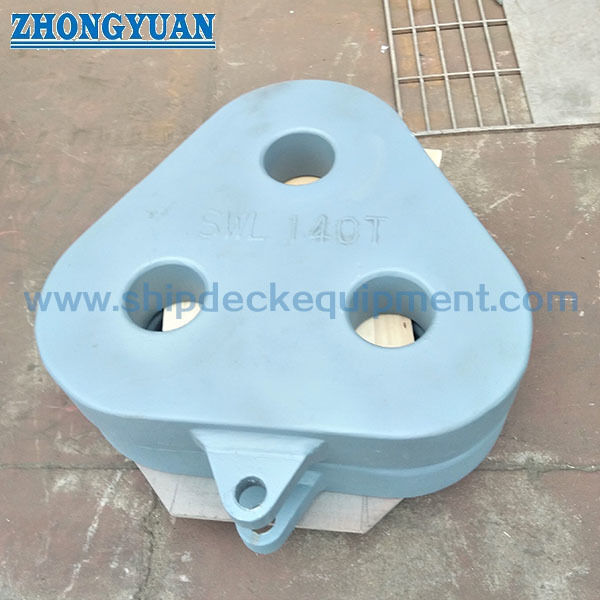

Steel Triangle Marine Plate Delta Plate For Towing Ship Towing Equipment

Steel Triangle Marine Plate Delta Plate For Towing Ship Towing Equipment

Product Details:

Place of Origin: China
Brand Name: Zhongyuan
Certification: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number: Standard and Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: As per quotation
Packaging Details: Pallet or Customized
Delivery Time: As per offer
Payment Terms: TT, L/C, Etc.
Supply Ability: Satisfy clients needs
Get Best Price Contact Now

Detail Information

Type: Marine Delta Plate / Triangle Plate, Straight Type, Curved Type Material: Forging Alloy Steel, Forging C-Mn Steel, Higher Tensile Mild Steel Plate, Stainless Steel
Proof Tested: 150% SWL Surface Treatment: Paint, Galvanized, Mirror Polished
Certificate: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc
Highlight:

Steel delta plate for towing

,

steel Marine delta plate for towing

,

Triangle marine plate

Product Description

Steel Triangle Marine Plate Delta Plate For Towing Ship Towing Equipment



Description:

Marine Triangle plate also called delta plate is commonly used to combine towing lines into a towing bridle. It is used for ship’s towing. All of the free edge is to be ground to R3 without burs.



Main Technical Specifications:

  1. Type: Marine Delta Plate / Triangle plate, straight type, Curved type
  2. Material: Forging Alloy Steel, Forging C-Mn Steel, Higher Tensile Mild Steel Plate, Stainless Steel;
  3. Proof Tested :150% SWL
  4. Surface treatment: Paint, Galvanized, Mirror Polished;
  5. Certificate: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.



Main Technical Parameters:

Safe Working Load Max. Breaking Load A B C R Weight
Ton Ton mm mm mm mm KG
17 85 47 35 120 65 10
25 125 55 40 150 80 18
35 175 60 50 160 90 28
55 275 75 70 210 105 58
85 425 90 80 230 135 96
120 600 105 100 280 170 188
150 750 115 110 320 185 256
175 875 115 110 320 195 274
200 1000 140 120 390 215 390
250 1250 150 140 390 240 518
300 1500 160 150 420 250 617
400 2000 185 200 490 300 1170
500 2500 200 200 550 360 1619
600 3000 220 200 600 400 1972


Steel Triangle Marine Plate Delta Plate For Towing Ship Towing Equipment 0

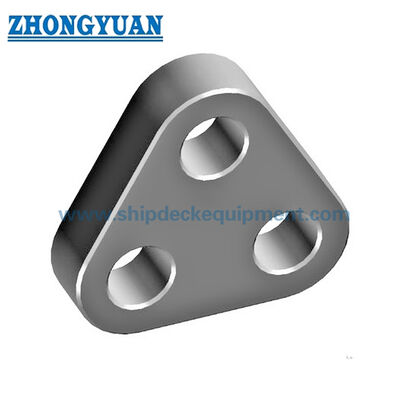

Drawing of Steel Triangle Marine Plate Delta Plate For Towing Ship Towing Equipment



Steel Triangle Marine Plate Delta Plate For Towing Ship Towing Equipment 1
