ASTM A27-70-36 Casting Steel Flanged Head Marine Outfitting
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Model Type: | Flanged Head Or Dished Head; | Types:: | 22, 29 And 33 Or As Customized |
|---|---|---|---|
| Material Grade: | Mild Steel, Casting Steel; | Quality Control: | Material Mechanical Test, Heat Treatment, Magmatic Examination If Required; |
| Surface Treatment: | Sandblasting To S2.5 | Certificate: | ABS Approval, Mill's Material Certificate. |
| Highlight: | astm a27-70-36 marine outfitting,flanged head marine outfitting,dished head marine outfitting |
||
Product Description

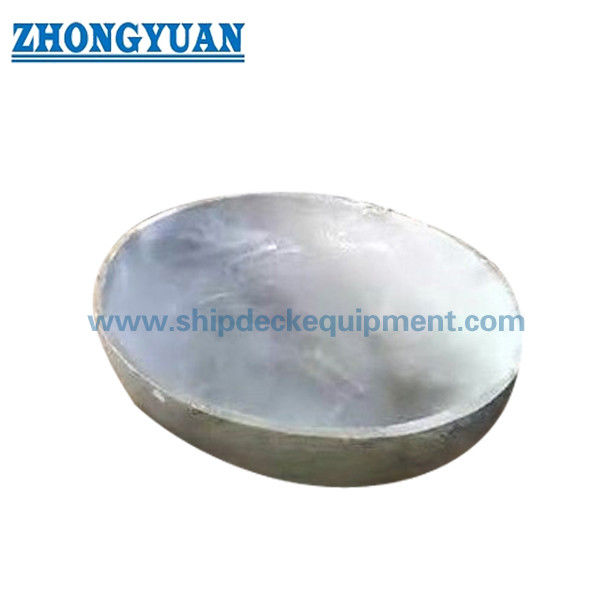

ASTM A27-70-36 Casting Steel Flanged Head
Description
Casting steel flanged head is made of ASTM A27-70-36 and has 3 types and with different dimensions. We can provide flanged head and flanged & dished head made from mild steel which use the mould tool to form. Casting steel has been heat treated before delivery with good mechanical property and surface quality. Magmatic examination will be carried out as required for free of sub-surface defects.
Main Technical Specification
- Model Type: Flanged head or dished head;
- Types: 22, 29 and 33 or as customized
- Material Grade: Mild Steel, Casting Steel;
- Quality Control: Material Mechanical Test, Heat treatmen,Magmatic examination if required;;
- Surface treatment: Sandblasting
- Certificate: ABS approval, Mill’s material certificate.
Main Technical Parameters:
| Type | Dimensions (inch) |
Weight | ||||
| A | B | C | D | E | (lbs) | |
| 22 | 24-3/4” | 3/8” | 8-3/8” | 2” | 6” | 98 |
| 29 | 25-1/2” | 3/4” | 6-3/4” | 0” | 6” | 165 |
| 33 | 36-3/4” | 3/8” | 6-3/8” | 3” | 1-1/8” | 143 |
Drawing of ASTM A27-70-36 Casting Steel Flanged Head Marine Outfitting
