56mm Two-Handle Steel Wire Rope Reel with Brake | Large-Diameter Wire Rope Storage on Ship Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
| Document: | Marine Rope Reel Manual Dri...92.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Applicable Steel Wire Diameter: | 13.0~56mm | Drum Storage Capacity Of Steel Wire Length: | 120~300m |
|---|---|---|---|
| Foot Bolts Quantity: | 6~14 | Material: | 304, 316L Stainless Steel, Polished Stainless Steel, Mild Steel |
| Highlight: | Two Handles Mooring Rope Reel,Steel Wire Mooring Rope Reel |
||
Product Description
56mm Two-Handle Steel Wire Rope Reel with Brake | Large-Diameter Wire Rope Storage on Ship Deck
Product Overview

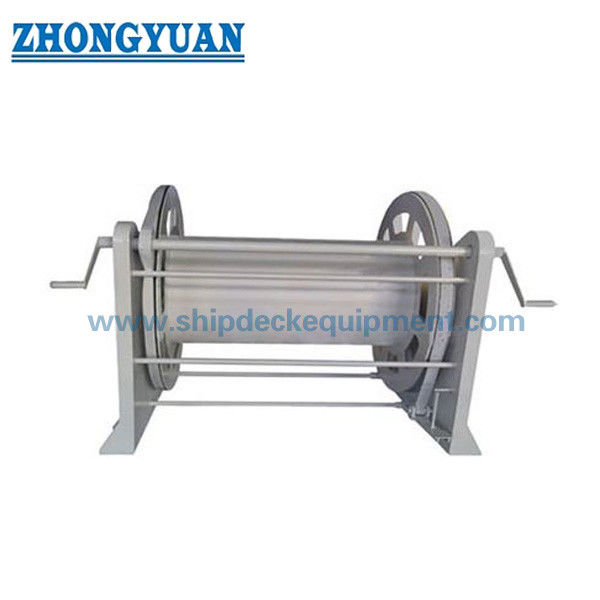

Type C two-handle steel wire rope reel is designed for storage and manual handling of large-diameter marine steel wire ropes on ship deck.
The C56 model is suitable for 56 mm steel wire rope with 300 m drum storage capacity. It is a storage reel, not a lifting or pulling winch.
Two handles allow two crew members to operate at the same time, improving control and reducing manual effort during winding and unwinding.
The reel uses a strong fabricated structure, bolted base, brake device and gear-driven operation to ensure stable storage, convenient installation and safe onboard use.
The gear system uses forged steel components, with ground and hardness-improved gear ring surfaces for smoother operation and better wear resistance. Weight-reduction holes reduce product weight without affecting structural strength.
Quick Specifications
- Standard: CB/T 3468-92 Type C -> Marine steel wire rope reel reference standard
- Model: Type C / C56 -> Designed for large-diameter steel wire rope storage
- Applicable Wire Rope Diameter: 56 mm -> Suitable for heavy steel wire rope storage
- Drum Capacity: 300 m -> Stores long steel wire rope on deck
- Operation: Two handles -> Allows two crew members to operate together
- Brake: Available -> Keeps the reel stable during storage
- Base: Bolted installation -> Easy fixing, movement and replacement
- Gear Material: Forged steel -> Higher strength and wear resistance
- Gear Ring: Ground and hardness improved -> Smooth operation and longer service life
- Weight-Reduction Holes: Designed on gear ring -> Reduces weight without affecting structural strength
- Material Options: Mild steel / 304 / 316L stainless steel -> Select according to corrosion requirement
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Main Technical Parameters
| Description | Type | Model | Wire Rope Diameter (mm) | Drum Capacity (m) |
| Type C Steel Wire Reel | C | C56 | 56 | 300 |
Selection Guide
Step 1 - Confirm rope diameter -> C56 is selected for 56 mm steel wire rope
Step 2 - Confirm storage length -> Standard drum capacity is 300 m
Step 3 - Confirm operation method -> Two handles are recommended for large-diameter rope operation
Step 4 - Confirm brake requirement -> Brake is recommended for stable storage and safe handling
Step 5 - Confirm installation -> Bolted base arrangement should match ship deck foundation
Step 6 - Confirm material and coating -> Mild steel, stainless steel or customized coating can be selected
Structure
Drum | Shaft | Support frame | Two handles | Brake device | Forged steel gear | Ground gear ring | Bolted base | Weight-reduction holes
Design and Quality Advantages
- Two-handle operation -> Two crew members can operate together, improving control and reducing manual effort
- Brake device -> Prevents reel rotation during storage and improves safety
- Forged steel rotating gear -> Improves transmission strength and wear resistance
- Ground gear ring with hardness enhancement -> Provides smoother operation and longer service life
- Weight-reduction holes -> Reduce reel weight without affecting structural strength
- Bolted base -> Convenient for installation, movement and replacement on ship deck
- Lubricated shaft and rotating parts -> Smoother rotation and easier manual operation
- Smooth surface without burrs or sharp corners -> Protects steel wire rope and improves handling safety
Custom Attributes
- Product Type: Two-handle steel wire rope storage reel -> Used for marine wire rope storage, not lifting
- Standard: CB/T 3468-92 -> Marine reel reference standard
- Model: Type C / C56 -> Large-diameter wire rope storage configuration
- Applicable Rope: Large-diameter marine steel wire rope -> Suitable for deck storage applications
- Wire Rope Diameter: Up to 56 mm -> Matches C56 model selection
- Capacity: Up to 300 m -> Supports long rope storage
- Operation: Manual two-handle operation -> Two crew members can operate together
- Brake: Available -> Improves storage stability and operational safety
- Installation: Bolted base -> Convenient fixing, movement and replacement
- Material: Mild steel / 304 / 316L stainless steel -> Select based on corrosion and budget requirements
- Surface Treatment: Sa2.5 blasting + epoxy coating / polished stainless steel / customized -> Marine corrosion protection
- Customization: Drum size, base arrangement, brake, coating and material -> Supports project-specific requirements
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate -> Supports project documentation and inspection requirements
Inquiry Guide
Please provide wire rope diameter, rope length, required model, brake requirement, base fixing arrangement, material, coating system and certification requirement.
Not sure about the correct reel size? Send the rope diameter and length, and we will recommend a suitable reel configuration.
How It Works
The steel wire rope is wound onto the drum. Two handles drive the reel manually through the gear system, allowing controlled rotation. The brake holds the reel in position when the rope is stored or when the reel is not in operation.
Applications
Ship deck wire rope storage | Mooring wire storage | Marine deck equipment | Shipyard and onboard rope handling
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate. Advantages include two-person operation, brake locking, forged steel gear, lightweight gear-ring design, bolted base installation and customizable materials.
Drawing & Photos
General arrangement drawing and product photos
Ordering
Specify: model C56, wire rope diameter, rope length, material, brake, base arrangement, coating, quantity and certification requirement.
FAQ
Q1: Is this reel used for lifting or pulling?
A: No. This product is designed for steel wire rope storage, not for lifting, towing or pulling operations.
Q2: Why does Type C use two handles?
A: The two-handle design allows two crew members to operate together, which reduces manual effort and improves control when handling large-diameter steel wire rope.
Q3: Why is a brake needed on a storage reel?
A: The brake prevents unwanted drum rotation and keeps the rope stable during storage, transportation or standby condition.
Q4: Why use forged steel gears and hardened gear ring?
A: Forged gears and hardened, ground gear ring surfaces improve transmission strength, rotation smoothness and wear resistance.
Q5: Can the reel size be customized?
A: Yes. Drum size, base arrangement, brake, coating and material can be customized according to rope diameter, storage length and ship deck layout.
