CB/T 3861 Type A Casting Steel Roller Fairlead With Dust Cover Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Technical Standard: | CB/T 3861-2011 | Type: | CB/T 3861-2011 Form A |
|---|---|---|---|
| Roller Diameters: | 100~450mm | Roller No.: | Single Roller |
| Roller Weight: | 9.9~462kg | Materials: | Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished Stainless Steel, Customized Surface Treatment Available. | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, BKI, IRS, RS, Etc |
| High Light: | single roller fairlead CB/T 3861-2011,CB/T 3861-2011 marine roller fairlead,CCS CB/T 3861-2011 marine roller fairlead |
||
Product Description

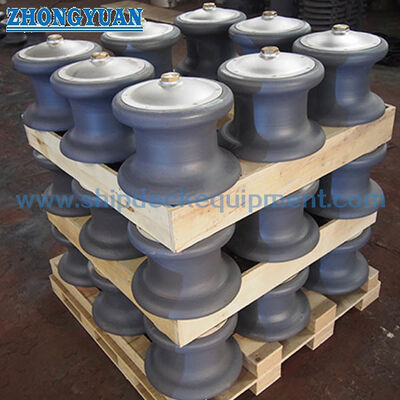

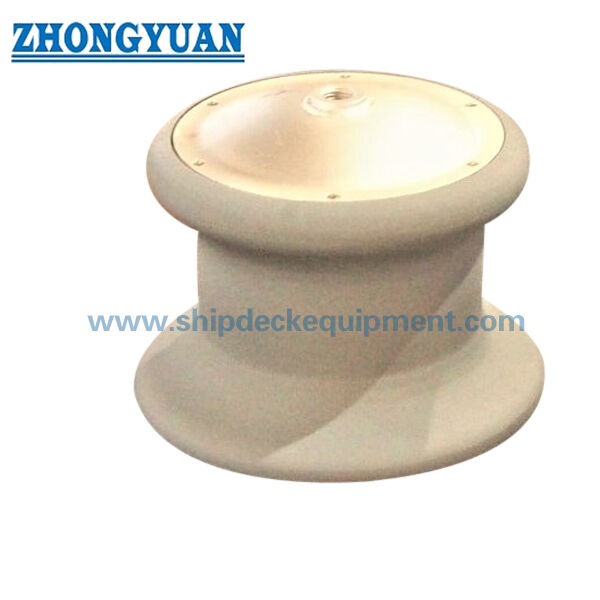

CB/T 3861 Type A Casting Steel Roller Fairlead With Dust Cover Ship Mooring Equipment
Description:
This kind of fairlead roller has single roller without base. And two or three can be used in one group toguide ropes from any direction. Besides, this products obtain IACS class certificates and other certificates.
Main Technical Specifications:
- Technical Standard: CB/T 3861-2011
- Type: CB/T 3861-2011 Form A
- Roller Diameters: 100~450mm
- Roller No.: Single roller
- Roller Weight:9.9~462kg
- Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
- Can be Customized
Main Technical Parameters:
| Roller Dia. |
SWL KN |
Fiber Rope Dia. |
SWR Dia. 6x37 | D1 | D2 | H | H | d | S | K | K1 |
Weight kg |
|
| 100 | 54 | 28 | 12. 0 | 160 | 45 | 128 | 114 | 50 |
3 |
5 | 9.9 | ||
| 150 | 127 | 32 | 16. 0 | 240 | 65 | 2l1 | 170 | 75 | g | 7 | 33.8 | ||
| 200 | 191 | 40 | 20.0 | 310 | 85 | 251 | 209 | 95 |
10 |
8 |
68. 0 | ||
| 250 | 274 | 45 | 24.0 | 380 | 95 | 298 | 249 | 110 |
4 |
114 | |||
| 300 | 323 | 50 | 28.0 | 440 | 115 | 321 | 270 | 125 |
13 |
10 |
168 | ||
| 350 | 431 | 55 | 34. 0 | 500 | 130 | 346 | 293 | 145 | 248 | ||||
| 400 | 559 | 65 | 10.0 | 560 | 145 | 375 | 316 | 160 |
5 |
14 |
12 |
355 | |
| 450 | 617 | 80 | 44.0 | 620 | 160 | 391 | 330 | 175 | 462 | ||||
Drawings of CB/T 3861 Type A Casting Steel Roller Fairlead With Dust Cover Ship Mooring Equipment
