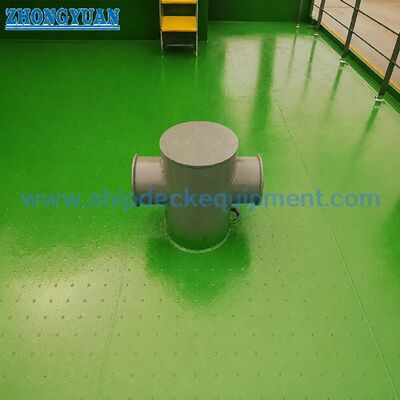

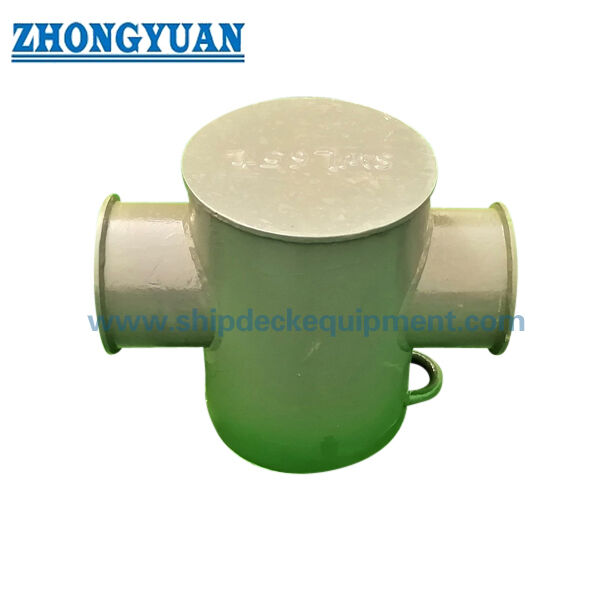

ISO 13797 Plate Fabricated Pipe Welded Mooring Towing Cruciform Bollards Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Nominal Diameters: | 150 To 350mm | Technical Standard: | GB/T 36665-2018 & ISO 13797:2020(E) |
|---|---|---|---|
| Material: | Mild Steel; Stainless Steel | Weight: | 31 To 204kg |
| SWL: | 78-736KN | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Mirror Or Satin Polished, Polished, Galvanized, Customized Surface Treatment Available |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc | ||
| Highlight: | Mooring Towing Cruciform Bollards,Ship Towing Equipment Cruciform Bollards,ISO 13797 Plate Fabricated Pipe Bollards |
||
Product Description
ISO 13797 Plate Fabricated Pipe Welded Mooring Towing Cruciform Bollards Ship Towing Equipment
Description:
The crusiform bollards is suitable for installation on sea going vessels to meet normal mooring and towing requirements
Main Technical Specifications:
- Nominal Diameters: 150 to 350mm;
- Technical Standard: GB/T 36665-2018 & ISO 13797:2020(E)
- Material: Mild Steel; Stainless Steel ;
- Weight: 31 to 204kg;
- SWL: 78-736KN
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameter:
Nominal size Dn |
Type | I | D1 | D3 | T1 | T2 | H | h | Welding leg length note a z |
SWL note b kn |
SWL note b ton |
Calculated weight |
| 150 | Type A | 350 | 165,2 | 114,3 | 11,0 | 8,6 | 450 | 225 | 6 | 78 | 8 | 37 |
| Type B | 350 | 170,0 | 120,0 | 8,0 | 8,0 | 450 | 225 | 5 | 78 | 8 | 31 | |
| 200 | Type A | 450 | 216,3 | 165,2 | 12,7 | 11,0 | 500 | 250 | 7 | 147 | 15 | 58 |
| Type B | 450 | 220,0 | 170,0 | 10,0 | 8,0 | 500 | 250 | 7 | 147 | 15 | 48 | |
| 250 | Type A | 575 | 267,4 | 216,3 | 15,1 | 12,7 | 600 | 300 | 8 | 245 | 25 | 92 |
| Type B | 575 | 270,0 | 220,0 | 13,0 | 10,0 | 600 | 300 | 8 | 245 | 25 | 81 | |
| 300 | Type A | 625 | 318,5 | 267,4 | 17,4 | 15,1 | 600 | 300 | 10 | 392 | 40 | 132 |
| Type B | 625 | 320,0 | 270,0 | 15,0 | 12,0 | 600 | 300 | 9 | 392 | 40 | 115 | |
| 350 | Type A | 670 | 355,6 | 267,4 | 19,0 | 15,1 | 600 | 350 | 10 | 491 | 50 | 150 |
| Type B | 670 | 360,0 | 270,0 | 16,0 | 12,0 | 600 | 350 | 9 | 491 | 50 | 130 | |
| 400 | Type A | 720 | 406,4 | 267,4 | 21,4 | 15,1 | 600 | 350 | 10 | 736 | 75 | 178 |
| Type B | 720 | 410,0 | 270,0 | 19,0 | 14,0 | 600 | 350 | 9 | 736 | 75 | 165 | |
| a Welding with chamfering is available based on the same welding volume/strength. b The SWL which is marked on the fitting is the maximum applicable rope tension. The SWLs shown in this table are for reference only. These are based on the loadings as mentioned in An nex A. C The calculated weight (mass) is for reference only. |
||||||||||||
Drawing of ISO 13797 Plate Fabricated Pipe Welded Mooring Towing Cruciform Bollards Ship Towing Equipment
