Hydraulic Operation Pilot Door, Watertight Ship Side Door
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Standard: | CB 672, GB 10840,CB/T 3007 CB 3041,ISO Standard | Material: | Mild Steel, Stainless Steel, Aluminium |
|---|---|---|---|
| Test: | Fire Approval Test, Gas Tightness Test, Hydraulic Pressure Test, Hose Test, Air Test, Chalk Test, As Applicable | Dimension: | Customized, As Client’s Drawing, As Standard |
| Application Type: | Watertight, Weathertight, Gastight, Sound Proof, Fire Proof (C To A60 Class), As Applicable | Leaf Type: | Single Leaf, Double Leaf, Single Skin, Double Skin |
| Application Location: | Accommodation, Cargo Hold, Bulkhead, Boundary | Open Type: | Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, Etc |
| Power Resource: | Pneumatic, Electric, Hydraulic, Manual | Closing Device: | Anti-Piracy |
| Classification Certificates: | Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc. | ||
| Highlight: | offshore Ship side door,Weathertight boat side door,Marine Outfitting sode door |
||
Product Description

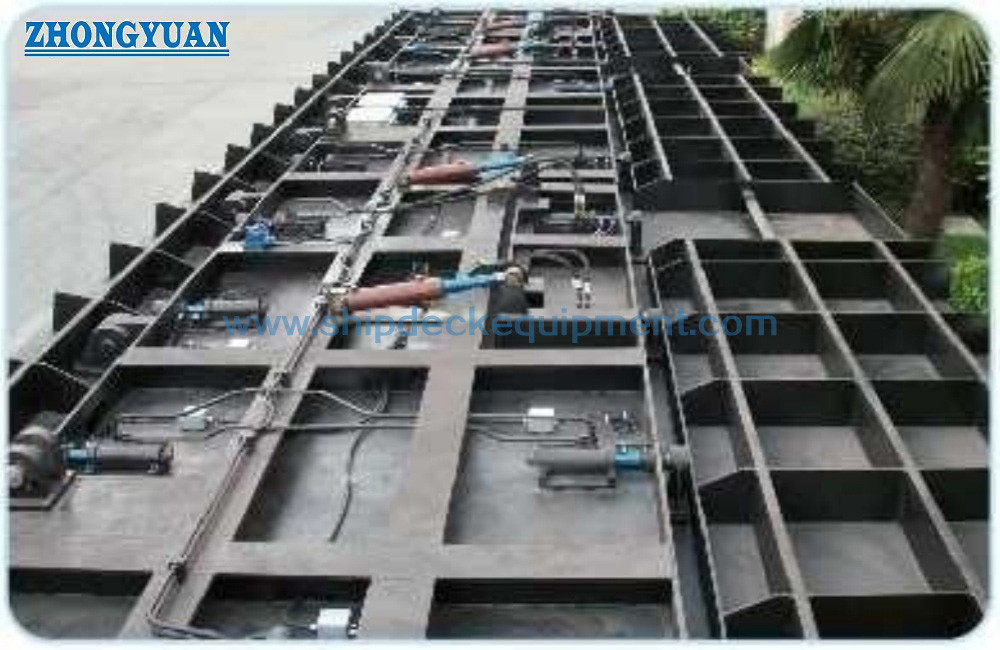

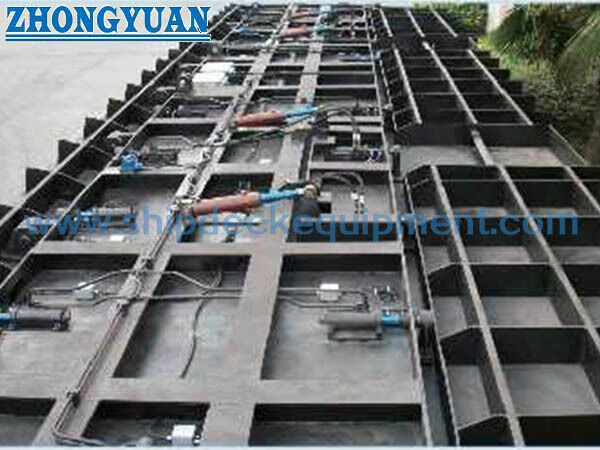

Hydraulic Operation Watertight Ship Side Door
Description:
The Ship side door is suitable for scientific research ships and offshore ships, and can meet the requirements of weathertightness. The door is opened and closed by a hydraulic cylinder, operated by a hydraulic pump unit (HPU), or remotely operated by an electric pump unit or electro-hydraulic control or hand pump. The opening angle can reach 180 degrees.
Main Technical Specification:
- Standard: CB 672, GB 10840,CB/T 3007 CB 3041,ISO Standard
- Material: Mild Steel, Stainless Steel, Aluminium,
- Test: Fire Approval Test, Gas Tightness Test, Hydraulic Pressure Test, Hose Test, Air Test, Chalk Test, as applicable
- Dimension: Customized, As client’s drawing, As Standard
- Application Type: Watertight, Weathertight, Gastight, Sound Proof, Fire Proof (C to A60 Class), as applicable
- Leaf Type: Single Leaf, Double Leaf, Single Skin, Double Skin,
- Application Location: Accommodation, Cargo Hold, Bulkhead, Boundary
- Open Type: Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc.
- Power resource: Pneumatic, Electric, Hydraulic, Manual,
- Closing Device: Anti-Piracy
- Classification Certificates:Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.
Main Technical Parameters:
| Type | Clear Size B X H(mm) |
Open on Bulkhead (B+450) ×(H+450)mm |
| SSD1 | 3000x3000 | 3450x3450 |
| SSD2 | 3000x3500 | 3450x3950 |
| SSD3 | 3500x3500 | 3950x3950 |
| SSD4 | 3500x4000 | 3950x4450 |
| SSD5 | 4000x4000 | 4450x4450 |
Drawing of Hydraulic Operation Watertight Ship Side Door Marine Outfitting
