20–200T Single Bitt Dock Bollard | Casting Steel & Ductile Iron Marine Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Bollard Capacity: | 20 To 200 Tons | Bolts Quantity: | 4 To 8 |
|---|---|---|---|
| Material Type: | Cast C-Mn Steel, Casting Stainless Steel; Cast Iron, Cast SG Iron | Safe Factor: | 3 Time |
| Face Angle Of Cable: | -45~+45 (vertical), 0~1800 (horizontal) | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available. |
| Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, Etc. | ||
| Highlight: | Bolt Anchorage Dock Bollard,Ship Mooring Equipment Dock Bollard,Casting Steel Dock Bollard |
||
Product Description

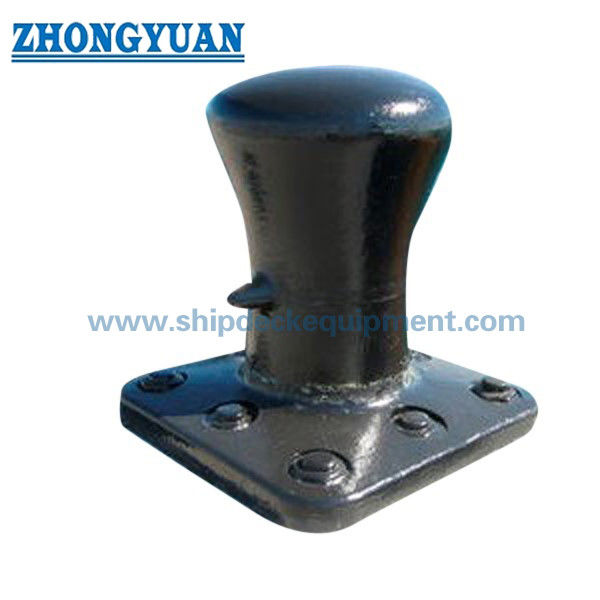

20–200T Single Bitt Dock Bollard | Casting Steel & Ductile Iron Marine Mooring Equipment
Product Overview
The single bitt dock bollard is a heavy-duty marine mooring fitting designed for secure vessel berthing at ports, shipyards, and offshore structures. Manufactured from high-quality cast steel or ductile iron, it provides reliable performance under dynamic load conditions. Ductile iron offers superior wear resistance, while cast steel ensures high structural strength. All anchor bolts are hot-dip galvanized for enhanced corrosion resistance. Finite Element Analysis (FEA) is applied to verify structural integrity and optimize load distribution.
Quick Specifications
Capacity: 20–200 tons → Defines mooring load capacity
Material: Cast Steel / Ductile Iron → Strength vs wear resistance selection
Safety Factor: 3× → Ensures operational reliability
Cable Angle: Vertical -15° to +75°, Horizontal 0–180° → Flexible rope direction
Anchor Bolts: Hot-dip galvanized → Corrosion protection
Surface Treatment: Sa2.5 + Epoxy primer → Marine durability
Main Technical Parameters
| Capacity (tonnes) |
Type | A | B | C | D | E | Bolts No. |
| 20 | SBD20 | 400 | 660 | 290 | 260 | 65 | 4 |
| 30 | SBD30 | 400 | 660 | 290 | 260 | 65 | 4 |
| 50 | SBD50 | 400 | 600 | 200 | 300 | 70 | 4 |
| 75 | SBD75 | 440 | 700 | 340 | 330 | 85 | 4 |
| 100 | SBD100 | 540 | 900 | 365 | 350 | 95 | 8 |
| 150 | SBD150 | 610 | 900 | 340 | 420 | 120 | 8 |
| 200 | SBD200 | 680 | 900 | 350 | 480 | 120 | 8 |
Selection Guide
Step 1 – Select capacity → Based on vessel size and mooring load
Step 2 – Confirm rope angle → Based on installation condition
Step 3 – Select material → Ductile iron (wear resistance) or cast steel (strength)
Step 4 – Confirm installation → Bolt anchorage or embedded type
Step 5 – Confirm certification requirement
Step 6 – Different base plate shape available
Structure
Bitt Head | Body | Base Plate | Anchor Bolts (Hot-dip galvanized)
Custom Attributes
Dual material options → Optimized for strength and wear resistance
FEA verified design → Ensures structural reliability under load
Strict casting quality control → Stable and consistent performance
Hot-dip galvanized bolts → Improved corrosion resistance
Heavy-duty construction → Suitable for marine environments
Inquiry Guide
Please provide capacity, material preference, installation condition, environment, and certification requirements.
How It Works
Mooring lines are wrapped around the bollard to transfer vessel loads to the dock structure. The robust casting structure and secure anchorage ensure safe load distribution.
Applications
Ports | Shipyards
Certifications & Advantages
Available with CCS, ABS, DNV, LR, BV certifications. FEA-verified design and strict quality control ensure reliable performance.
Drawing & Photos
General arrangement drawings and product photos available upon request.
Ordering
MOQ: 1 Unit | Delivery: 30–60 days | Customization available
FAQ
Q1: How to choose correct bollard capacity?
A: Based on vessel size, mooring analysis, and safety factor.
Q2: What is the difference between ductile iron and cast steel?
A: Ductile iron offers better wear resistance, while cast steel provides higher strength.
Q3: Are anchor bolts included?
A: Yes, hot-dip galvanized bolts are provided as standard.
