Casting Steel Bolted Anchorage Dock Bollard Kidney Bollard Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Bollard Capacity: | 15 To 200 Tons | Bolts Quantity: | 4 To 8 |
|---|---|---|---|
| Material Type: | Cast C-Mn Steel, Casting Stainless Steel; Cast Iron, Cast Ductile Iron/SG Iron | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished, Galvanized, Polished, Galvanized, Customized Surface Treatment Available |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc | ||
| Highlight: | Kidney Dock Bollard |
||
Product Description

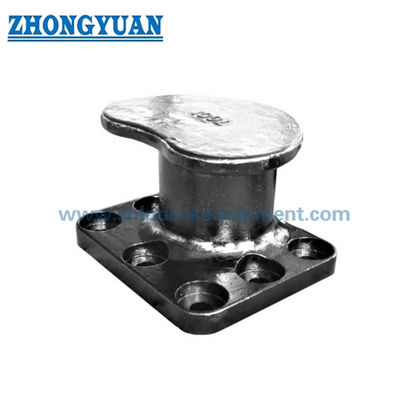

Casting Steel Bolted Anchorage Dock Bollard Kidney Bollard Ship Mooring Equipment
Description:
Kidney shaped bollard is one type of dock bollards which is for secure mooring. We also provide other types of mooring bollards: Tee head bollard, staghorn bollard, R type bollard, J type bollard, CVl-bollard, cross bollard, welded inserted bollard, JIS F-2001 double bollard, DIN82607 double bollard and so on. Customized products according to customer's special requirements. For specific information, please feel free to contact us.
Main Technical Specification:
1. Bollard Capacity: 15 to 200 tons;
2. Bolts Quantity: 4 to 8;
3. Material Type: Cast C-Mn Steel, Casting Stainless Steel; Cast Iron, Cast Ductile Iron/SG Iron;
4. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, Polished, Galvanized, customized surface treatment available.
5. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameter:
| Standard Bollard Capacity SWL (Metric Tons) |
15 | 20 | 30 | 50 | 75 | 100 | 125 | 150 | 200 |
| A | 41 | 51 | 54 | 60 | 70 | 79 | 89 | 95 | 111 |
| B | 194 | 216 | 257 | 264 | 298 | 340 | 375 | 410 | 457 |
| C | 275 | 330 | 385 | 413 | 481 | 550 | 605 | 660 | 759 |
| D | 325 | 390 | 455 | 488 | 569 | 650 | 715 | 780 | 897 |
| E | 288 | 345 | 402 | 431 | 503 | 575 | 632 | 690 | 793 |
| F | 50 | 60 | 70 | 75 | 88 | 100 | 110 | 120 | 138 |
| G | - | - | - | - | 238 | 272 | 299 | 326 | 345 |
| H | - | 213 | 258 | 226 | 381 | 436 | 479 | 523 | 543 |
| I | 213 | 300 | 350 | 353 | 438 | 500 | 550 | 600 | 671 |
| 1 | 88 | 0 | 0 | 88 | 0 | 0 | 0 | 0 | 112 |
| K | - | 136 | 154 | 183 | 146 | 167 | 184 | 201 | 283 |
| L | - | - | - | - | 218 | 249 | 274 | 299 | 345 |
| M | 250 | 300 | 350 | 375 | 438 | 500 | 550 | 600 | 690 |
| N | 125 | 150 | 175 | 188 | 219 | 250 | 275 | 300 | 345 |
| Bolt Size | M24 | M24 | M30 | M36 | M36 | M42 | M48 | M56 | M56 |
| Bolt Length | 450 | 450 | 450 | 600 | 600 | 600 | 750 | 915 | 915 |
| Bolt Quantity | 4 | 5 | 5 | 6 | 7 | 7 | 7 | 7 | 8 |
