Electric Hydraulic Fork Type Steering Gear Marine Hydraulic Steering
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Type: | Fork Type Steering Gear | Application: | Single Rudder, Twin Ruder |
|---|---|---|---|
| Wide Range Of Rudder Angle: | Maximum + 75 ° | Connecting Methods With Steering Gear: | Key, Taper And Shrinking Sleeve |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA | ||
Product Description
Electric Hydraulic Fork Type Steering Gear
Description:
Electric hydraulic steering gear is a power steering mechanism which is now most widely used in shipping. We produce all kinds of electric hydraulic steering gears. mainly for electric hydraulic steering gears. compliance with all Rules of classification societies. suitable for all manner of transportations and engineering vessels.
Fork Type Steering Gear has 2 sets reciprocating fork type rudder thrust mechanism, 2 sets oil motor pump tank, 1 reserve oil tank. Use electronical control or pump control. It can cooperate with all kinds of automatic steering or follow-up steering device. Two sets pimps can be isolated.
Main Technical Specifications:
- Type: Fork type Steering Gear
- Application: Single rudder, Twin ruder
- Constant output torque under same pressure to match all kinds of rudder easily
- Wide range of rudder angle, maximum + 75 °
- Steering gear itself can withstand the axial and radial load. And rudder system can be without upper bearing
- Connecting methods with steering gear: key, taper and shrinking sleeve
- Compact structure and small space needed
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.
| Type | Model | Torque |
| Fork Type Steering Gear | WDF-SF | 160 -6000 kN.m |

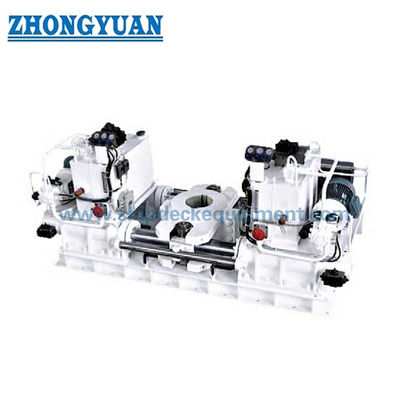

Drawing of Electric Hydraulic Fork Type Steering Gear Marine Hydraulic Steering
