CB 3015 Type B Four Steel Rollers Marine Fairlead For Engineering Vessel Ship Towing Equipment
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Standard: | CB* 3015-83 | Type: | Type B, 2 Vertical Rollers, 1 Bottom & 1 Upper Horizontal Rollers |
|---|---|---|---|
| Roller Diameters: | 100mm To 300mm | Applications: | Dredgers, Crane Ships, Piling Boats And Other Engineering Vessels |
| Materials: | C-Mn Steel, Mild Steel, Stainless Steel | Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint, Galvanized |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc | ||
| Highlight: | cb/t 3015-83 type b marine fairlead,4 steel rollers marine fairlead,engineering vessel fairlead |
||
Product Description

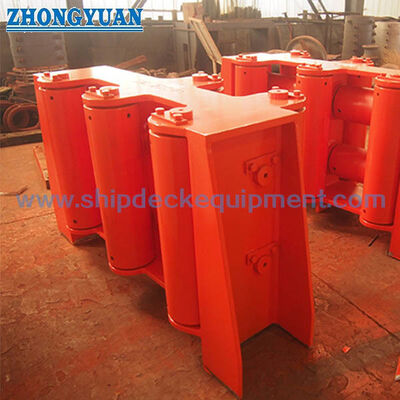

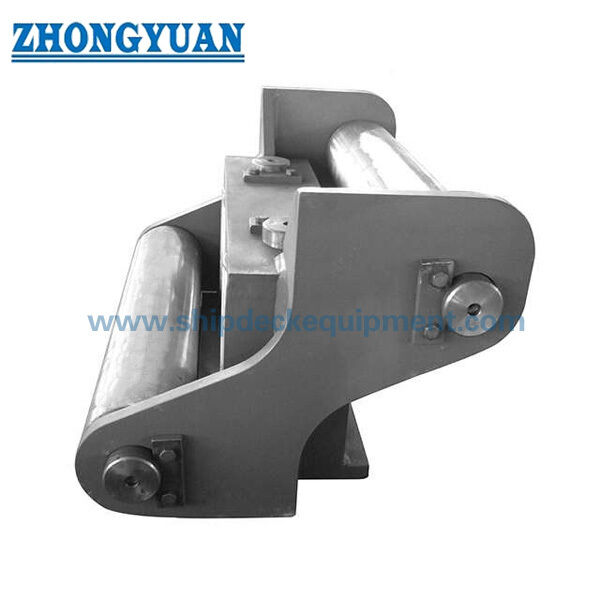

CB 3015 Type B Four Steel Rollers Marine Fairlead For Engineering Vessel Ship Towing Equipment
Description
Engineering ship's Fairlead is widely applicable to offshore, engineering barge, dredgers, crane ships, piling boats and other vessels. It is produced according to the latest standard CB*3015. All fairleads obtain the certificates of quality. Type B engineering ship fairleads has 2 vertical rollers,1 bottom & 1 upper horizontal rollers. Please feel free to contact us for more information.
Main Technical Specification:
- Standard: CB* 3015-83
- Type: Type B, 2 vertical rollers, 1 bottom & 1 upper horizontal rollers
- Roller diameters: 100mm to 300mm;
- Applications: dredgers, crane ships, piling boats and other engineering vessels;
- Materials: C-Mn Steel, Mild Steel, Stainless Steel
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameter:
| Roller Dia. D |
Horizontal Roller Dia. D1 |
Applicable Steel Wire Rope Dia. Φ |
L | B | H | b | h1 | h2 | l | d |
| 100 | 85 | 19.5 | 540 | 340 | 240 | 250 | 220 | 50 | 200 | 22 |
| 150 | 120 | 26 | 760 | 460 | 340 | 340 | 320 | 65 | 290 | 26 |
| 200 | 150 | 37.5 | 980 | 580 | 440 | 430 | 410 | 80 | 380 | 32 |
| 250 | 200 | 176 | 1220 | 740 | 550 | 540 | 500 | 110 | 480 | 39 |
| 300 | 250 | 370 | 1460 | 900 | 675 | 650 | 590 | 135 | 580 | 39 |
Drawing of CB 3015 Type B Four Steel Rollers Marine Fairlead For Engineering Vessel Ship Towing Equipment
