5–250kN Electric Vertical Mooring Capstan for Ship Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Function: | Mooring | Working Load: | 5KN To 250KN |
|---|---|---|---|
| Warping Head Diameter: | 200-700 Mm | Warping Speed(m/min): | 9-18m/Min |
| Wire Rope Dia.: | 11 - 46 (mm) | Material: | Stainless Steel (Polished), Mild Steel, Casting |
| Power: | Electric, Can Be Explosive Proof | Control: | Local Or Remote Control |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc. | ||
| Highlight: | Electric Mooring Capstan,Vertical Mooring Capstan,ABS Ship Deck Equipment |
||
Product Description

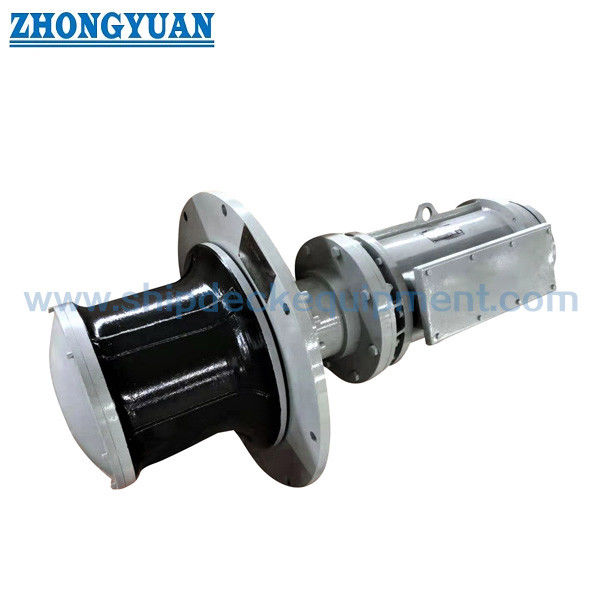

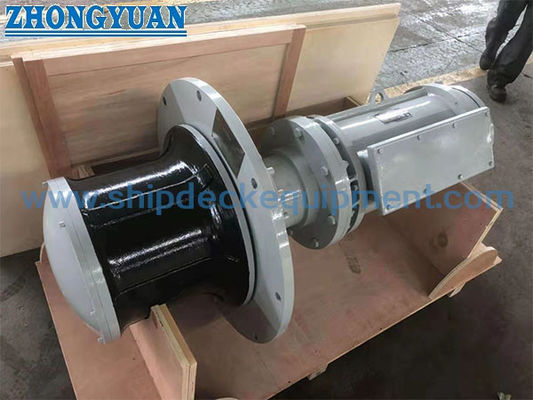

5–250kN Electric Vertical Mooring Capstan for Ship Deck
Product Overview
The electric vertical mooring capstan is designed for efficient rope handling during ship mooring operations.
The vertical configuration minimizes deck space usage and allows flexible installation in confined areas.
It is ideal for auxiliary line handling where continuous pulling is required without rope storage on a drum.
Designed for compact deck layout, easy operation, and cost-effective mooring solutions for various vessel types.
Quick Specifications
- Working Load: 5–250 kN → Defines pulling capacity for different vessel sizes
- Warping Speed: 9–18 m/min → Defines rope handling efficiency
- Rope Diameter: 11–46 mm → Defines rope compatibility
- Warping Head Diameter: 200–700 mm → Matches rope size and improves grip
- Drive Type: Electric Motor → Provides stable and simple operation
- Control Type: Local / Remote → Enables flexible operation
- Mounting Type: Vertical → Saves deck installation space
- Material: Mild Steel / Stainless Steel → Ensures durability and corrosion resistance
- Power Range: 1.2–75 kW → Matches load requirements
- Function: Continuous Pulling → No drum storage required
Main Technical Parameters
| Working Load (kN) | Warping Speed (m/min) | Rope Dia (mm) | Motor Power (kW) |
| 5 | 9–18 | Φ11 | 3/1.2 |
| 10 | 9–18 | Φ11 | 4.3/1.7 |
| 15 | 9–18 | Φ13 | 8.5/3.5 |
| 20 | 9–18 | Φ15 | 11/11/7.5 |
| 30 | 9–18 | Φ17.5 | 16/16/11 |
| 50 | 9–18 | Φ20.5 | 16 |
| 70 | 9–18 | Φ26 | 22 |
| 100 | 9–18 | Φ28 | 45/45/30 |
| 120 | 9–18 | Φ32.5 | 60/60/45 |
| 150 | 9–18 | Φ36.5 | 60/60/45 |
| 200 | 9–18 | Φ40 | 75/75/36 |
| 250 | 9–18 | Φ46 | 75/75/36 |
Selection Guide
Step 1 – Select Working Load → 5–250 kN based on vessel size and mooring requirement
Step 2 – Confirm Rope Diameter → 11–46 mm to match warping head size
Step 3 – Confirm Speed → 9–18 m/min based on operation efficiency
Step 4 – Select Control Type → Local or remote control
Step 5 – Confirm Installation Space → Vertical capstan recommended for limited deck space
Step 6 – Confirm Power Requirement → Based on load and duty cycle
Structure & Components
Electric motor | Gearbox | Warping head | Main shaft | Brake system | Base frame | Electrical control unit
Custom Attributes
- Working Load: 5–250 kN → Defines pulling capacity
- Speed: 9–18 m/min → Defines operation efficiency
- Rope Diameter: 11–46 mm → Defines compatibility
- Drive Type: Electric → Stable and simple operation
- Control: Local / Remote → Flexible operation
- Installation: Vertical → Space-saving design
- Operation Mode: Continuous → Suitable for frequent use
- Material: Steel / Stainless Steel → Corrosion resistance
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Custom Configuration & Inquiry Guide
Please provide working load, rope diameter, installation space, control requirement, and power supply.
We will provide model selection, GA drawing, and technical proposal.
How It Works
The electric motor drives the gearbox to rotate the warping head. The rope is wrapped around the capstan head, generating friction to pull or release the rope in a controlled manner.
Applications
Ship mooring | Tug boats | Offshore vessels | Port operations | Auxiliary deck handling
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate; compact vertical design, continuous pulling capability, easy operation, low maintenance, suitable for limited deck space.
Drawing & Photos
General arrangement drawing | Installation layout | Product photos
Ordering
MOQ: 1 Unit | Delivery Time: 60–120 Days | Payment: T/T, L/C | Customization: Available
FAQ
Q1: What is the difference between capstan and winch?
A: Capstan provides continuous pulling without rope storage, while winch uses a drum for storage.
Q2: Why choose vertical capstan?
A: It saves deck space and is suitable for compact installation areas.
Q3: Can it be used for different rope types?
A: Yes, suitable for steel wire rope and synthetic rope within specified diameter range.
Drawing of Flange Deck Mounted Electric Vertical Mooring Capstan Ship Deck Equipment
