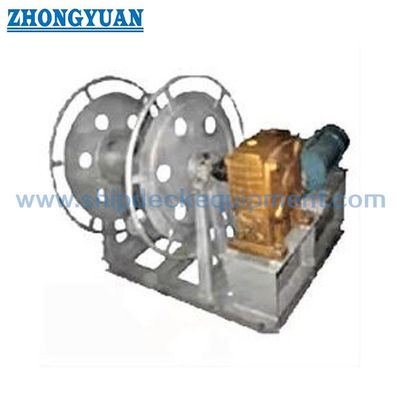

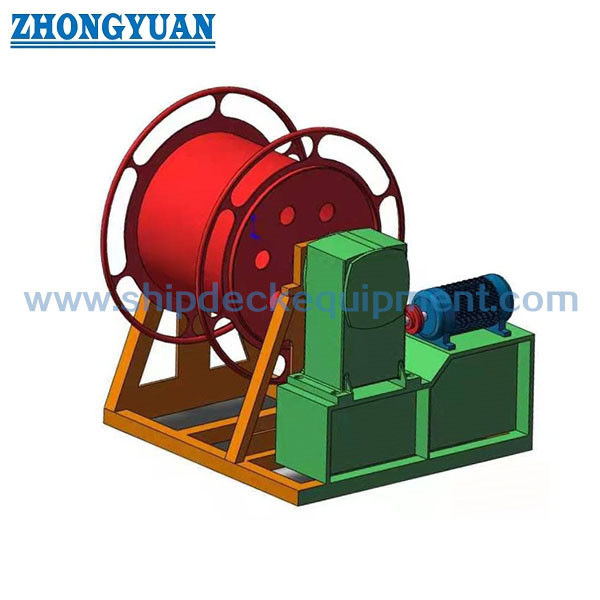

26–32mm Electric Steel Wire Rope Reel | Single Drum Marine Rope Storage for Ship Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
| Document: | Motor Rope Reel Electric Mo...83.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Rope Diameter: | 26–32 Mm | Rope Length: | 210–220 M |
|---|---|---|---|
| Drum Speed: | 17–56 M/min | Drum Type: | Single Drum |
| Drive Type: | Electric | Motor Power: | 4.3–6 KW |
| Control Type: | Push Button | Rope Type: | Steel Wire Rope |
| Material: | Carbon Steel， Aluminum Available | Surface Treatment: | Epoxy Coating |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate | ||
| Highlight: | CB*3048 Steel Wire Rope Reel |
||
Product Description
26–32mm Electric Steel Wire Rope Reel | Single Drum Marine Rope Storage for Ship Deck
Product Overview
A 26–32mm electric steel wire rope reel is a type of marine deck equipment designed for storage, winding, and handling of steel wire ropes on ship decks.
This single drum rope reel is driven by an electric motor combined with a gearbox, providing stable winding performance, reliable operation, and precise control.
It supports forward and reverse rotation, emergency stop, and manual backup operation in case of power failure.
It is widely used in marine rope storage, offshore vessels, and port operations.
Quick Specifications
• Rope Diameter: 26–32 mm
• Rope Type: Steel Wire Rope
• Rope Storage Length: 210–220 m
• Drum Type: Single Drum
• Drive Type: Electric Motor + Gearbox
• Motor Speed: 1350 / 410 rpm
• Drum Speed: 17–56 m/min
• Control: Push Button + Emergency Stop
• Backup Operation: Manual (Worm Gear)
• Material: Carbon Steel / Stainless Steel
• Surface Treatment: Sa2.5 + Epoxy Coating
Main Technical Parameters
| Type Mode | Steel Wire Max. Dia. (mm) | Steel Wire Length (m) | Motor Power (kw) | Motor RPM Speed (min¯1) | Drum Rope Speed m/min 1350 Min¯1 | Drum Rope Speed m/min 410 Min¯1 | External Dimension LxBXH (mm) | Weight (kg) |
| A26 | 26 | 220 | 4.3/1.7 | 1350/410 | 56 | 17 | 1330x 1360x 1175 | 545 |
| A32 | 32 | 210 | 60 | 18 | 1430 x 1450x 1330 | 575 |
| Type Mode | Max. Steel Wire Rope Diameter | D | D1 | B | B1 | L | L1 | H | H1 | Weight kg |
| A 26 | 26 | 300 | 870 | 1120 | 1360 | 550 | 1330 | 730 | 1175 | 545 |
| A 32 | 32 | 360 | 1050 | 1120 | 1450 | 650 | 1430 | 800 | 1330 | 575 |
Rope Reel Selection Guide
Step 1 – Select Rope Diameter: 26 mm (A26) / 32 mm (A32)
Step 2 – Confirm Rope Length: 210–220 m standard or customized
Step 3 – Select Drum Speed: 17–20 m/min (standard), 50+ m/min (high efficiency)
Step 4 – Drive System: Electric motor with manual backup
Step 5 – Control Type: Push button (standard) or remote (optional)
Engineering Note: Selection should be based on rope size, storage length, and speed requirements.
Structure & Components
Electric drive motor | Gearbox transmission system | Single drum reel | Shaft & bearing assembly | Control panel | Base frame
Custom Attributes
| Parameter | Value |
| Rope Diameter | 26–32 mm |
| Rope Length | 210–220 m |
| Rope Type | Steel Wire Rope |
| Drum Type | Single Drum |
| Drum Speed | 17–56 m/min |
| Drive Type | Electric |
| Motor Speed | 1350 / 410 rpm |
| Control Type | Push Button |
| Backup Operation | Manual |
| Material | Carbon Steel / Stainless Steel |
| Surface Treatment | Epoxy Coating / Polished |
Custom Configuration & Inquiry Guide
Provide: Rope Diameter, Rope Length, Required Speed, Drive Type, Control Type, Installation Requirement.
We will recommend model selection, technical drawing, and quotation.
How It Works
The rope reel is driven by an electric motor through a gearbox, rotating the drum to wind or unwind the steel wire rope.
When power is unavailable, manual operation is possible through a worm gear reducer.
Applications
Ship deck rope storage | Marine mooring support systems | Offshore vessels | Port and harbor equipment | Industrial rope handling
Certifications & Advantages
Certifications: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS
Advantages: Stable operation, compact design, reliable performance, easy maintenance.
Drawing & Photos
• General arrangement drawing
• Drum structure drawing
• Installation layout
Ordering Information
MOQ: 1 Unit
Delivery Time: Based on project
Payment: T/T, L/C
Customization: Available
FAQ
Q1: What is the difference between rope reel and winch?
A: Rope reel is for storage, while winch is for pulling load.
Q2: Can it operate without electricity?
A: Yes, manual operation is available.
Q3: Can it be customized?
A: Yes, rope size, speed, and configuration can be customized.
