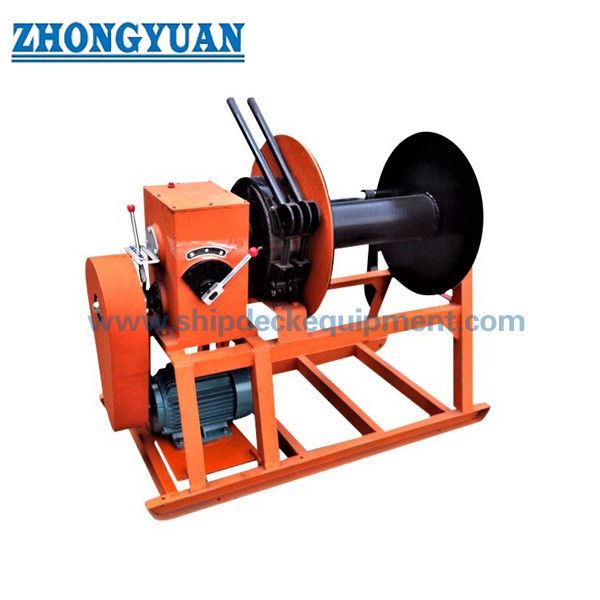

39–48mm Electric Steel Wire Rope Reel | CB3048-B Single Drum Marine Rope Storage for Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
| Document: | Motor Rope Reel Electric Mo...83.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Rope Diameter: | 39–48 Mm | Rope Length: | 210–220 M |
|---|---|---|---|
| Drum Speed: | 17–60 M/min | Drive Type: | Electric |
| Material: | Stainless Steel And Mild Steel | Motor Power: | 4.3–6 KW |
| Motor Speed: | 1350 / 410 Rpm | Control Type: | Push Button |
| Backup Operation: | Manual | Surface Treatment: | Sandblasting， Epoxy Coating |
| Certification: | CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS | ||
| Highlight: | cb3048 type b marine reel,48.5mm marine reel |
||
Product Description
39–48mm Electric Steel Wire Rope Reel | CB3048-B Single Drum Marine Rope Storage for Ship Deck Equipment
Product Overview
An electric steel wire rope reel is a type of marine deck equipment designed for storage, winding, and handling of steel wire ropes on ship decks.
The CB3048 Type B single drum reel is driven by an electric motor combined with a gearbox, providing stable operation, precise control, and reliable performance.
It supports forward and reverse rotation, emergency stop, and manual backup operation through a worm gear reducer.
It is widely used for heavy-duty rope storage in marine, offshore, and port operations.
Quick Specifications
• Rope Diameter: 39–48 mm
• Rope Type: Steel Wire Rope
• Rope Storage Length: 210–220 m
• Drum Type: Single Drum
• Drive Type: Electric Motor + Gearbox
• Motor Speed: 1350 / 410 rpm
• Drum Speed: 17–60 m/min
• Control: Push Button + Emergency Stop
• Backup Operation: Manual (Worm Gear)
• Material: Carbon Steel / Stainless Steel
• Surface Treatment: Epoxy Coating
Main Technical Parameters
| Type Mode |
Steel Wire Max. Dia. (mm) |
Steel Wire Length (m) |
Motor Power (kw) |
Motor RPM Speed (min¯1) |
Drum Rope Speed m/min 1350 Min¯1 |
Drum Rope Speed m/min 410 Min¯1 |
External Dimension LxBXH (mm) |
Weight (kg) |
| B39 | 39 | 210 | 4.3/1.7 | 1350/410 | 56 | 17 | 1800x1360x1075 | 700 |
| B48 | 48 | 210 | 60 | 18 | 2060x1410x1270 | 824 |
| Type Mode |
Max. Steel Wire Rope Diameter |
D | D1 | B | B1 | L | L1 | H | H1 | Weight kg |
| B39 | 39 | 450 | 870 | 1120 | 1360 | 994 | 1800 | 750 | 1075 | 700 |
| B48 | 48 | 550 | 970 | 1120 | 1410 | 1250 | 2060 | 800 | 1270 | 824 |
Rope Reel Selection Guide
Step 1 – Select Rope Diameter: 39 mm (B39) / 48 mm (B48)
Step 2 – Confirm Rope Length: 210–220 m or customized
Step 3 – Select Speed: 17–20 m/min standard, higher optional
Step 4 – Drive & Control: Electric motor + manual backup
Structure & Components
Electric motor | Gearbox transmission | Single drum reel | Shaft & bearing system | Control panel | Base frame
Custom Attributes
Rope Diameter: 39–48 mm
Rope Length: 210–220 m
Drum Speed: 17–60 m/min
Drive Type: Electric
Control Type: Push Button
Material: Carbon Steel / Stainless Steel
Custom Configuration & Inquiry Guide
Provide rope diameter, length, speed, drive type, control type, and installation requirements.
We will provide model selection, drawing, and quotation.
How It Works
Motor drives drum through gearbox to wind or unwind rope. Manual backup ensures operation during power failure.
Applications
Ship deck | Offshore vessels | Port operations | Marine engineering | Heavy-duty rope storage
Certifications & Advantages
Certifications: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS
Advantages: Stable operation | Heavy-duty design | Reliable performance | Manual backup | Easy maintenance
Drawing & Photos
• General arrangement drawing
• Drum structure drawing
• Installation layout
Ordering Information
MOQ: 1 Unit
Delivery Time: Based on project
Payment: T/T, L/C
Customization: Available
FAQ
Q1: Difference between reel and winch? A: Reel is storage, winch is pulling.
Q2: Backup operation? A: Manual available.
