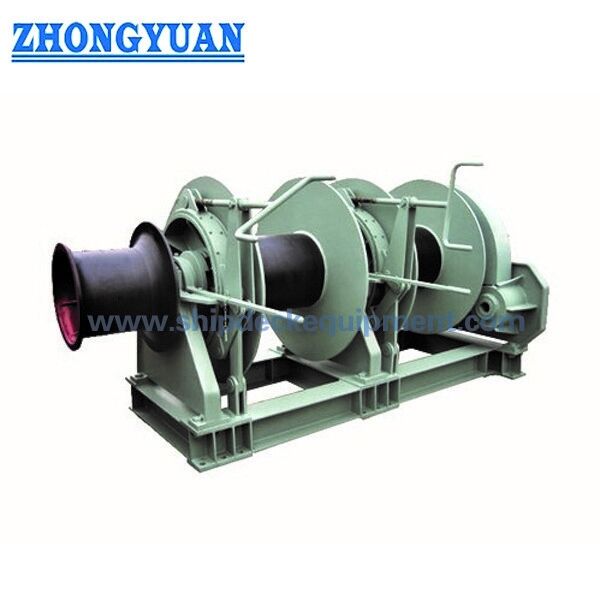

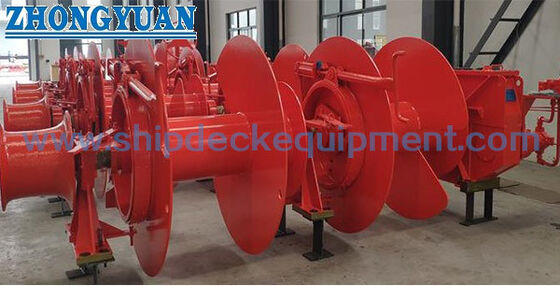

Double Drum Single Warping End Electric Hydraulic Mooring Winch Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Safety Pull Capacity: | 5-800KN | Speed: | 4-12m/min |
|---|---|---|---|
| Warping Speed(m/min): | 9-18m/Min | Drum Capacity: | 40 To 250m |
| Motor Power: | 4 To 132 Kw | Rope Dia: | 11 – 90 (mm) |
| Control Position: | Remote And Local Control | Optional: | Load Measuring, Rope Speed And Length Measuring Device |
| Power Supply: | AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH | Material: | Stainless Steel (Polished), Mild Steel |
| Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint, Galvanized | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc |
| High Light: | 12m/min 800KN Hydraulic Mooring Winch,800KN Hydraulic Mooring Winch,12m/min hydraulic boat winch |
||
Product Description
Double Drum Single Warping End Electric Hydraulic Mooring Winch Ship Deck Equipment
Description
Hydraulic winches are usually used to ship’s mooring with large rated load. It includes hydraulic motor(can be multiple speed), gear box, clutch, drum, warping end, Hydraulic power unit, electric switchboard, etc. HPU is driven either by electric motor or diesel engine. Our designers team has 30-years’ experience. We produce compact strong structure and reliable operation & stability, easy for maintenance. We provide spare parts which can reach everywhere as your demand.
Main Specification
- Safety Pull Capacity: 5-800KN
- Speed: 4-12m/min
- Warping Speed(m/min):9-18m/Min
- Drum Capacity: 40 to 250m
- Single/Double Drum
- Single/Double warping end
- Motor Power: 4 to 132 kw
- Rope Dia. 11 – 90 (mm)
- Control position: Remote and local control;
- Optional: Load measuring, rope speed and length measuring device.
- Power Supply: AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH
- Material: Stainless Steel (Polished), Mild Steel,
- Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc.
Main Technical Parameters:
| Rated Pull | Rated Speed | Drum Capacity | Motor Power | |
| Ton | kN | m/min | mm*m | kW |
| 0.5 | 5 | ≥12 | φ8*100 | — |
| 1 | 10 | ≥12 | φ10*150 | 5.5 |
| 2 | 20 | ≥12 | φ15*150 | 11 |
| 3 | 30 | ≥12 | φ17*150 | 15 |
| 4 | 40 | ≥15 | φ8*150 | 22 |
| 5 | 50 | ≥15 | φ20.5*180 | 30 |
| 7.5 | 75 | ≥15 | φ26*200 | 45 |
| 8 | 80 | ≥15 | φ26*200 | 37 |
| 10 | 100 | ≥15 | φ30*200 | 45 |
| 15 | 150 | ≥15 | φ30*200 | 45 |
| 16 | 160 | ≥15 | φ32*250 | 75 |
| 20 | 200 | ≥9.6 | φ40*250 | 75 |
| 25 | 250 | ≥9.6 | φ44*250 | 90 |
| 31.5 | 315 | ≥7.8 | φ52*250 | 90 |
| 40 | 400 | ≥7.8 | φ56*250 | 110 |
| 45 | 450 | ≥6 | φ56*250 | 110 |
| 50 | 500 | ≥7.8 | φ58*250 | 110 |
Drawing of Double Drum Single Warping End Electric Hydraulic Mooring Winch Ship Deck Equipment
