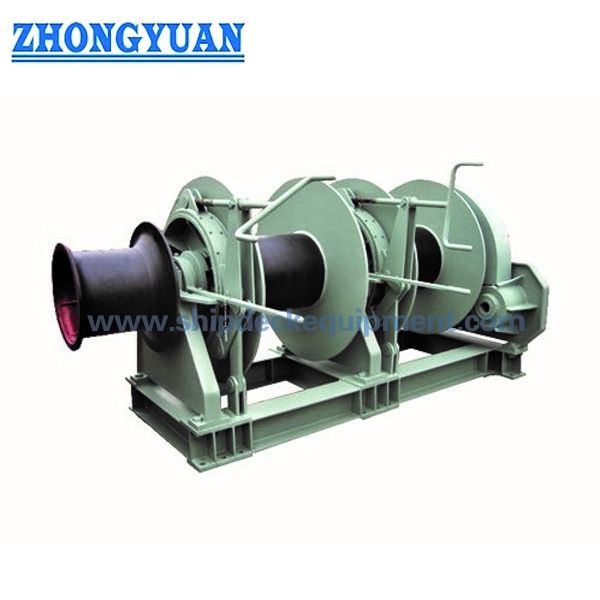

Electric Hydraulic Mooring Winch Double Drum Single Warping End
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Safety Pull Capacity: | 5-800KN | Speed: | 4-12m/min |
|---|---|---|---|
| Warping Speed(m/min): | 9-18m/Min | Drum Capacity: | 40 To 250m |
| Motor Power: | 4 To 132 Kw | Rope Dia: | 11 – 90 (mm) |
| Control Position: | Remote And Local Control | Optional: | Load Measuring, Rope Speed And Length Measuring Device |
| Power Supply: | AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH | Material: | Stainless Steel (Polished), Mild Steel |
| Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint, Galvanized | Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Highlight: | 12m/min 800KN Hydraulic Mooring Winch,800KN Hydraulic Mooring Winch,12m/min hydraulic boat winch |
||
Product Description
5-500kN Electric Hydraulic Mooring Winch Double Drum | Ship Mooring Equipment
Product Overview
Electric hydraulic mooring winch is designed for ship mooring operations with stable load control and reliable performance.
The system integrates hydraulic drive, gearbox, drum, warping end, and control system to ensure safe mooring under various marine conditions.
It features compact structure, multi-speed hydraulic motor, and flexible configuration for different vessel requirements.
Quick Specifications
• Pulling Capacity: 5-500 kN
• Rated Speed: ≥6-15 m/min
• Warping Speed: 9-18 m/min
• Drum Capacity: 100-250 m
• Wire Rope Diameter: 8-58 mm
• Drum Type: Single / Double drum
• Warping End: Single / Double
• Drive Type: Electric hydraulic
• Motor Power: 5.5-110 kW
• Control: Local and Remote
• Power Supply: 380V / 415V / 440V
Main Technical Parameters
| Pull (kN) | Speed (m/min) | Drum Capacity (mm x m) | Motor Power (kW) | Ton |
| 5 | ≥12 | 8x100 | — | 0.5 |
| 10 | ≥12 | 10x150 | 5.5 | 1 |
| 20 | ≥12 | 15x150 | 11 | 2 |
| 30 | ≥12 | 17x150 | 15 | 3 |
| 40 | ≥15 | 18x150 | 22 | 4 |
| 50 | ≥15 | 20.5x180 | 30 | 5 |
| 75 | ≥15 | 26x200 | 45 | 7.5 |
| 80 | ≥15 | 26x200 | 37 | 8 |
| 100 | ≥15 | 30x200 | 45 | 10 |
| 150 | ≥15 | 30x200 | 45 | 15 |
| 160 | ≥15 | 32x250 | 75 | 16 |
| 200 | ≥9.6 | 40x250 | 75 | 20 |
| 250 | ≥9.6 | 44x250 | 90 | 25 |
| 315 | ≥7.8 | 52x250 | 90 | 31.5 |
| 400 | ≥7.8 | 56x250 | 110 | 40 |
| 450 | ≥6 | 56x250 | 110 | 45 |
| 500 | ≥7.8 | 58x250 | 110 | 50 |
Selection Guide
Step 1 - Pulling Capacity: 5-500 kN | Step 2 - Select Rope Diameter: 8-58 mm | Step 3 - Select Speed: ≥6-15 m/min | Step 4 - Select Drum Type: Single / Double | Step 5 - Select Warping End | Step 6 - Drive: Electric Hydraulic | Step 7 - Control: Local / Remote
Structure & Components
Structure & Components: Hydraulic motor | Gearbox | Drum | Warping end | Clutch system | Hydraulic power unit | Electric control panel | Base frame
Custom Attributes
Pulling Capacity: 5-500 kN | Rope Diameter: 8-58 mm | Speed: 6-15 m/min | Drive Type: Electric hydraulic | Control: Local / Remote | Drum Type: Single / Double
Custom Configuration & Inquiry Guide
Pulling Capacity | Rope Diameter | Drum Capacity | Warping End | Motor Power | Control Type | Installation Requirement
How It Works
Electric motor drives the hydraulic power unit, which powers the hydraulic motor to rotate the drum.
The rope is wound or released through the drum and warping end, ensuring controlled mooring operation.
Applications
Applications: Ship mooring operations | Cargo vessels | Tankers | Offshore vessels | Port and harbor operations
Certifications & Advantages
Certifications: CCS | NK | BV | ABS | DNV | LR | KR | RINA | IRS | RS
Advantages: Wide load range | Stable hydraulic drive | Flexible drum configuration | Reliable performance | Easy maintenance
Drawing & Photos
• General arrangement drawing
• Structure drawing
• Hydraulic system diagram

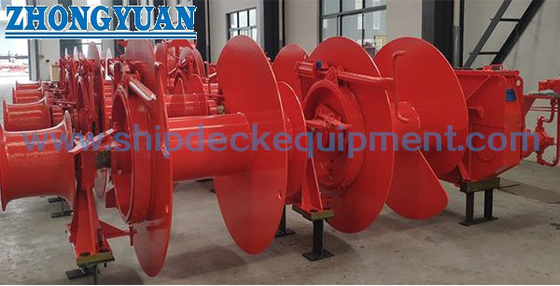

• Product photos
Ordering Information
• MOQ: 1 Unit
• Delivery Time: Based on project
• Payment: T/T, L/C
FAQ
Q1: Can it be used for heavy mooring?
A: Yes, suitable for various vessel sizes.
Q2: Can drum configuration be customized?
A: Yes, single or double drum available.
Q3: Is remote control supported?
A: Yes, local and remote control supported.
