Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Safety Pull Capacity: | 70-1000KN | Speed: | 5-10m/min |
|---|---|---|---|
| Drum Capacity: | 40 To 1000m | Motor Power: | 30 To 180 Kw |
| Rope Dia: | 28 – 64 (mm) | Control Position: | Remote And Local Control |
| Optional: | Load Measuring, Rope Speed And Length Measuring Device | Power Supply: | AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH |
| Auto Spooling Device: | Optional | Material: | Mild Steel |
| Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc |
| High Light: | 1000KN hydraulic towing winch,1000KN hydraulic towing winches,10m/min marine towing winches |
||
Product Description

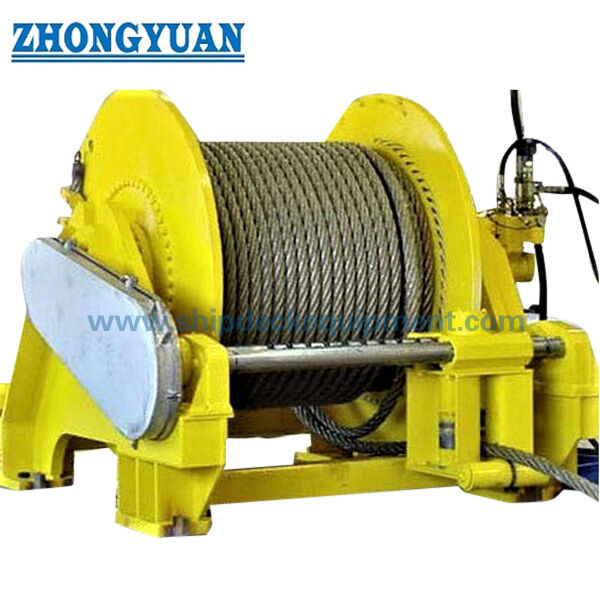

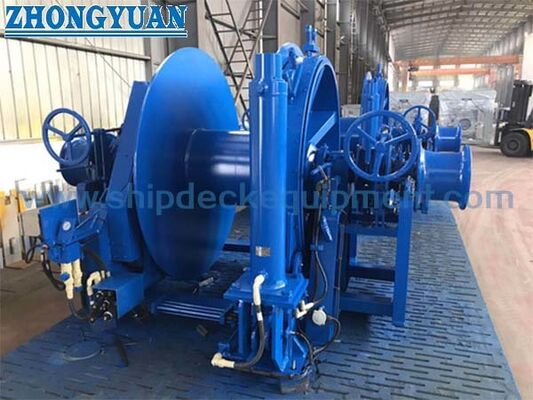

Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment
Description
Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment drum size is customized to meet wire capacity requirements; One or two warping heads on either side of the winch are optional according to clients' demands; Spooling Devices are optional for clients; The winch can be with remote and local control; The winch has load measuring, rope speed and length measuring device.
Main Technical Specification
1. Safety Pull Capacity: 70-1000KN
2. Speed: 5-10m/min
3. Drum Capacity: 40 to 1000m
4. Single/Double Drum
5. Single/Double warping end
6. Motor Power: 30 to 180 kw
7. Rope Dia. 28 – 64 (mm)
8. Control position: Remote and local control;
9. Optional: Load measuring, rope speed and length measuring device.
10. Power Supply: AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH
11. Auto Spooling Device: Optional
12. Material: Mild Steel,
13. Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
14. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc.
Main Technical Parameters:
| Rating Load | Rating Speed | Rope dia. | Rope Length | Motor Type | Power |
| kN | m/min | mm | m | kW | |
| 70 | 0-10 | φ30 | 700 | CUJM-F3.15 | 30 |
| 80 | 0-10 | φ32 | 200 | CLJM-F3.15 | 30 |
| 120 | 0-10 | φ30 | 400 | CL]M-F3.15 | 45 |
| 160 | 0-10 | φ44 | 600 | 3L JM-100 | 55 |
Drawing of Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment
