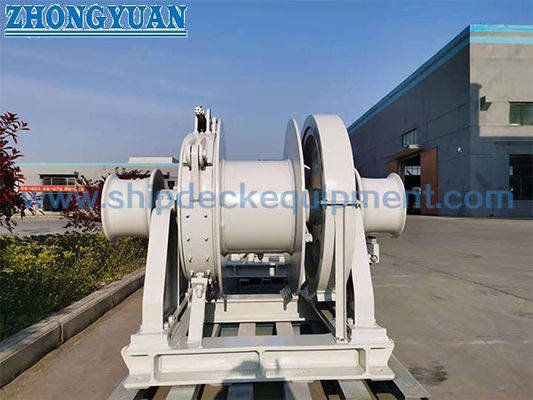

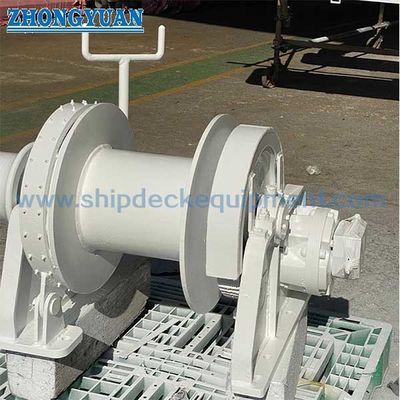

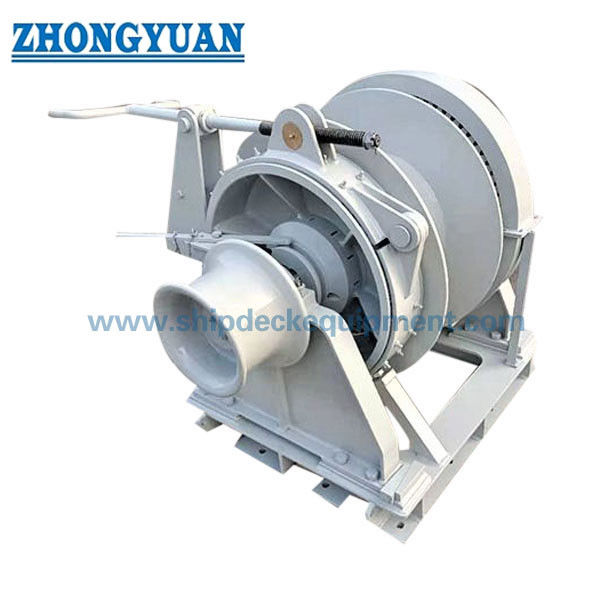

36mm Single Drum Electric Hydraulic Anchor Winch | Ship Anchor Handling Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Safety Pull Capacity: | 5-800KN | Speed: | 4-12m/min |
|---|---|---|---|
| Warping Speed(m/min): | 9-18m/Min | Drum Capacity: | 40 To 250m |
| Motor Power: | 4 To 132 Kw | Rope Dia: | 11 – 90 (mm) |
| Control Position: | Remote And Local Control | Optional: | Load Measuring, Rope Speed And Length Measuring Device |
| Power Supply: | AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH | Material: | Stainless Steel (Polished), Mild Steel |
| Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint, Galvanized | Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Highlight: | Electric 12m/min hydraulic anchor winch,12m/min hydraulic anchor winch,800KN electric anchor winch |
||
Product Description
36mm Single Drum Electric Hydraulic Anchor Winch | Ship Anchor Handling Equipment
Product Overview
Single drum electric hydraulic anchor winch is designed for anchor handling operations on small and medium vessels.
The system uses electric motor driven hydraulic power to control anchor lifting and releasing with stable performance.
It combines steel wire rope with short anchor chain, eliminating the need for a chain locker and optimizing deck space.
Quick Specifications
• Working Load: 8.3-97.9 kN
• Supporting Load: 51-570 kN
• Working Speed: ≥9 m/min
• Mooring Pull: 8-60 kN
• Mooring Speed: ≥12 m/min
• Drum Capacity: 100-200 m
• Wire Rope Diameter: 12-48 mm
• Drive Type: Electric hydraulic
• Drum Type: Single drum
• Control: Local and Remote
• Power Supply: 380V / 415V / 440V
Main Technical Parameters
| Rope Dia (mm) | Working Load (kN) | Supporting Load (kN) | Working Speed (m/min) | Mooring Pull (kN) | Mooring Speed (m/min) | Drum Capacity | Motor Power (kW) |
| 12/14/16 | 8.3/10.9/13.0 | 51/67/80 | ≥9 | 8 | ≥12 | 11x100 | 5.5 |
| 18/20/22 | 15.3/17.9/20.6 | 95/110/126 | ≥9 | 15 | ≥12 | 13x120 | 7.5 |
| 24/26 | 24.5/28.7 | 149/175 | ≥9 | 20 | ≥12 | 15x120 | 11 |
| 28/30 | 33.3/38.3 | 202/231 | ≥9 | 30 | ≥12 | 18x150 | 15 |
| 32/34/36 | 43.5/49.1/55.1 | 261/294/329 | ≥9 | 40 | ≥12 | 20.5x150 | 22 |
| 38/40/42 | 61.4/68.0/75.0 | 365/402/442 | ≥9 | 50 | ≥12 | 20.5x150 | 30 |
| 44/46/48 | 82.3/89.9/97.9 | 483/526/570 | ≥9 | 60 | ≥12 | 26x200 | 37 |
Selection Guide
Step 1 - Select Rope Diameter: 12-48 mm | Step 2 - Match Working Load: 8-98 kN | Step 3 - Confirm Supporting Load | Step 4 - Select Speed: ≥9 m/min | Step 5 - Drive: Electric Hydraulic | Step 6 - Control: Local / Remote | Step 7 - Installation: Deck mounted
Structure & Components
Structure & Components: Hydraulic motor | Gearbox | Single drum | Wire rope system | Short chain link | Brake system | Hydraulic power unit | Control panel
Custom Attributes
Working Load: 8-98 kN | Rope Diameter: 12-48 mm | Speed: ≥9 m/min | Drive Type: Electric hydraulic | Drum Type: Single drum | Control: Local / Remote
Custom Configuration & Inquiry Guide
Working Load | Rope Diameter | Drum Capacity | Mooring Pull | Motor Power | Control Type | Installation Requirement
How It Works
Electric motor drives the hydraulic power unit, which powers the hydraulic motor to rotate the drum.
The steel wire rope and short chain link lift or release the anchor, ensuring safe and controlled anchor handling.
Applications
Applications: Small vessels | Fishing boats | Work boats | Harbor vessels | Anchor handling operations
Certifications & Advantages
Certifications: CCS | NK | BV | ABS | DNV | LR | KR | RINA | IRS | RS
Advantages: Compact structure | No chain locker required | Stable hydraulic drive | Easy installation | Space saving design
Drawing & Photos
• General arrangement drawing
• Anchor winch structure drawing
• Hydraulic system diagram
• Product photos
Ordering Information
• MOQ: 1 Unit
• Delivery Time: Based on project
• Payment: T/T, L/C
FAQ
Q1: Does it require chain locker?
A: No, rope and short chain are stored on drum.
Q2: Is it suitable for small vessels?
A: Yes, ideal for small and medium ships.
Q3: Can it be customized?
A: Yes, full customization available.
