Φ64mm Electric Hydraulic Windlass Mooring Winch Single Gypsy Single Drum
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Anchor Chain Diameter: | Φ64mm | Rated Tension: | 175kN |
|---|---|---|---|
| Working Speed: | 9m/min | Tether Load: | 135kN |
| Support Load: | 982kN | Motor Power: | 55KW |
| Tethering Speed: | 9m/min | Number Of Anchor Sprocket Wheels: | Single Anchor |
| Warranty Period: | One Year After Delivery | Color: | Customer Specified |
| Power Supply: | AC Three-phase 380V, 440V, | Composition: | Mainly Composed Of Hydraulic Motor, Hydraulic Oil Pump, Manual Proportional Valve, Overflow Valve, Safety Valve, Base, Wall Bracket, Anchor Chain Wheel, Clutch, Brake, Cable Winch, Reducer, Electrical Control Box, Double Anchor It Is Composed Of Brakes, Do |
| Highlight: | Combined Ship Deck Equipment,Combined windlass and mooring winch,windlass and mooring winch |
||
Product Description

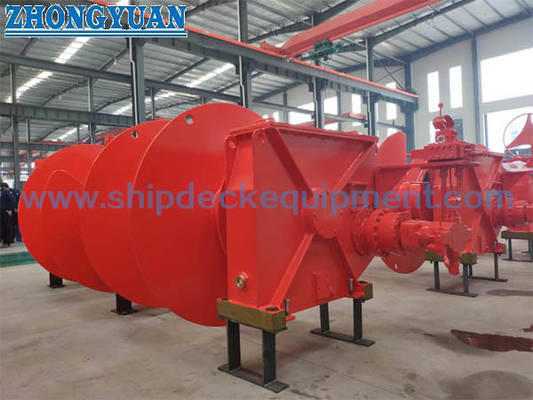

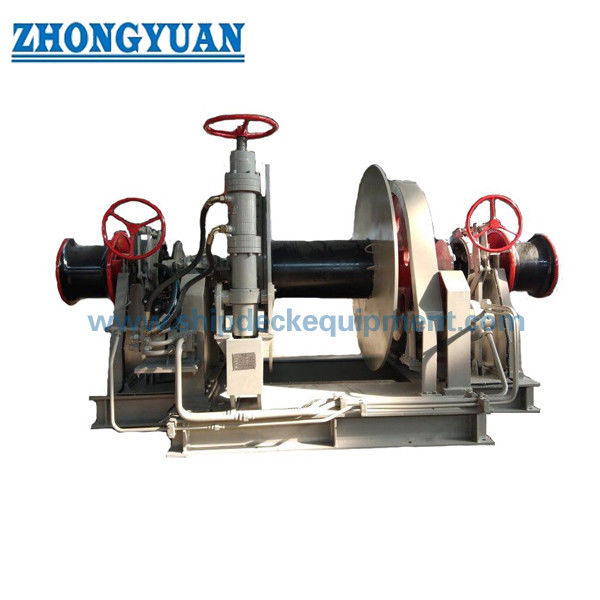

Φ64mm Electric Hydraulic Combined Anchor Windlass & Mooring Winch for Ship Deck
Product Overview
Φ64mm electric hydraulic combined anchor windlass and mooring winch is designed for ship deck anchoring and mooring operations.
The system integrates anchor handling and mooring functions through gypsy wheels and drum, providing efficient and space-saving deck arrangement.
It complies with major classification society rules and supports AM2 and AM3 anchor chains.
Quick Specifications
- Chain Diameter: Φ64 mm → Defines anchor chain compatibility
- Chain Grade: AM2 / AM3 → Determines strength class per classification rules
- Anchoring Load: 153–171 kN → Depends on chain grade
- Mooring Load: up to 100 kN → Defines rope handling capacity
- Holding Load: 870–1245 kN → Determines brake capacity
- Working Speed: ≥9 m/min → Defines anchoring efficiency
- Drive Type: Electric Hydraulic → Ensures high torque output
- Configuration: Double Gypsy + Single Drum → Combined anchoring and mooring
- Power Range: 55–75 kW → Depends on load and working condition
- Control System: Manual proportional valve → Provides precise control
Main Technical Parameters
| Chain Dia (mm) | Grade | Anchoring Load (kN) | Mooring Load (kN) | Holding Load (kN) | Speed (m/min) | Power (kW) |
| 64 | AM2 | 153 | 100 | 870 | ≥9 | 55–65 |
| 64 | AM3 | 171 | 100 | 1245 | ≥9 | 65–75 |
Engineering Note
Loads and power are determined based on anchor chain grade (AM2 / AM3), vessel requirements, and classification rules. Final configuration will be confirmed during technical evaluation.
Selection Guide
Step 1 – Select Chain Diameter → Φ64 mm system
Step 2 – Select Chain Grade → AM2 or AM3 based on class requirement
Step 3 – Confirm Anchoring Load → Determines anchor handling capacity
Step 4 – Confirm Mooring Requirement → Drum load and capacity
Step 5 – Select Configuration → Gypsy + drum combination
Step 6 – Confirm Power → Based on working conditions
Structure & Components
Hydraulic motor | Hydraulic pump unit | Gearbox | Double gypsy | Mooring drum | Brake system | Clutch | Base frame | Control system
Custom Attributes
- Chain Diameter: 64 mm → Defines compatibility
- Chain Grade: AM2 / AM3 → Defines strength level
- Anchoring Load: 153–171 kN → Defines anchor capacity
- Mooring Load: up to 100 kN → Defines rope capacity
- Holding Load: 870–1245 kN → Defines braking capacity
- Drive Type: Electric Hydraulic → Ensures stable performance
- Configuration: Gypsy + Drum → Combined function
- Certification: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS → Meets marine standards
Custom Configuration & Inquiry Guide
Please provide chain diameter, chain grade, anchoring load, mooring requirement, and classification society.
We will provide model selection, GA drawing, and quotation.
How It Works
Electric motor drives hydraulic pump, hydraulic motor drives gearbox, gypsy handles anchor chain, and drum manages mooring rope operations.
Applications
Ship anchoring and mooring | Bulk carriers | Cargo vessels | Offshore ships | Port operations
Certifications & Advantages
Certifications: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS
Compact design, dual-function system, high torque output, reliable braking, compliant with classification rules.
Drawing & Photos
General arrangement drawing | Structural drawing | Installation layout | Product photos
Ordering Information
MOQ: 1 Unit | Delivery Time: 30 Days | Payment: T/T, L/C | Customization: Available
FAQ
Q1: Difference between AM2 and AM3?
A: AM3 has higher strength and higher allowable working load.
Q2: Can it be customized?
A: Yes, configuration and power can be customized per project.
