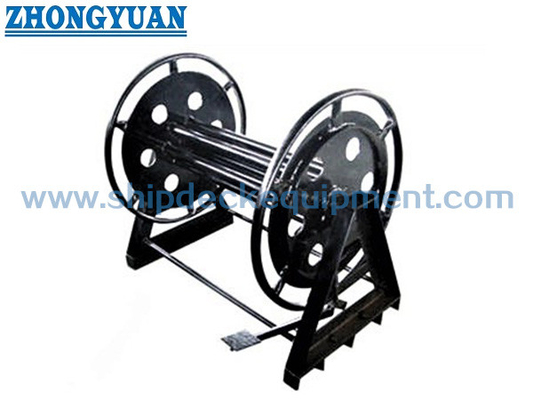

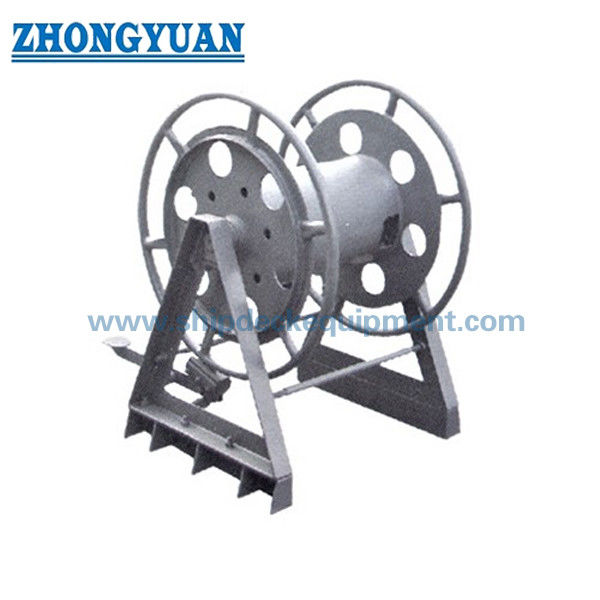

JIS F 3430-1980 Steel Wire Rope Storage Drum Ship's Wire Reels Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Three Type: | Type 35,38,40 | Applicable Steel Wire Diameter: | 13~32mm |
|---|---|---|---|
| Drum Storage Capacity Of Steel Wire Length: | 120~190m | Material: | 304, 316L Stainless Steel, Polished Stainless Steel, Mild Steel |
| Certificate: | IACS Classification Certificates, Mill Certificate | ||
Product Description
JIS F 3430-1980 Steel Wire Rope Storage Drum Ship's Wire Reels Ship Deck Equipment
Description:
JIS F 3430-1980 ship’s wire reel is used to store steel wire other than towing or stranded cables.
Main Technical Specifications:
1. Applicable to Store Marine wire;
2. Three Type: Type 35,38,40;
3. Applicable Steel Wire Diameter: 13~32mm;
4. Drum Storage Capacity of Steel Wire Length: 120~190m;
5. Material: 304, 316L Stainless Steel, Polished Stainless Steel, Mild Steel.
6. Smooth Surface without Burrs, Cracks, Sharp Corners etc.
7. Shaft Lubricated;
8. Sa2.5 Sandblasting and Anti-corrosive epoxy Painting;
9. Certificate: IACS Classification Certificates, Mill certificate
10. Meet Customer’s Special Requirements;
Main Technical parameters.
|
Nominal size |
B | D | D1 | d | d1 | L | L1 |
Drum Rope Capacity |
Weight (kg) |
| 35 | 650 | 350 | 700 | 50 | 40 | 800 | 950 | 25*200m | 190 |
| 38 | 650 | 380 | 780 | 55 | 45 | 850 | 1000 | 28*200m | 215 |
| 40 | 700 | 400 | 850 | 60 | 50 | 900 | 1050 | 31.5*200m | 240 |
Drawing of JIS F 3430-1980 Steel Wire Rope Storage Drum Ship's Wire Reels Ship Deck Equipment
