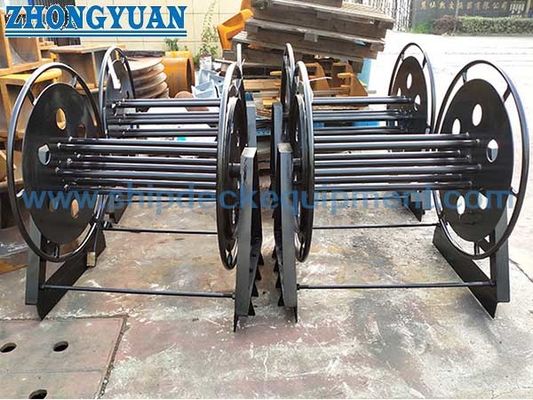

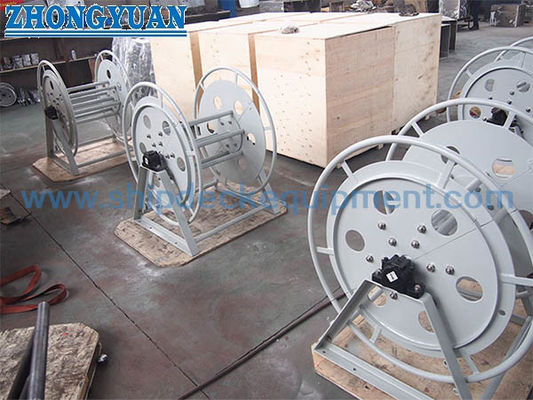

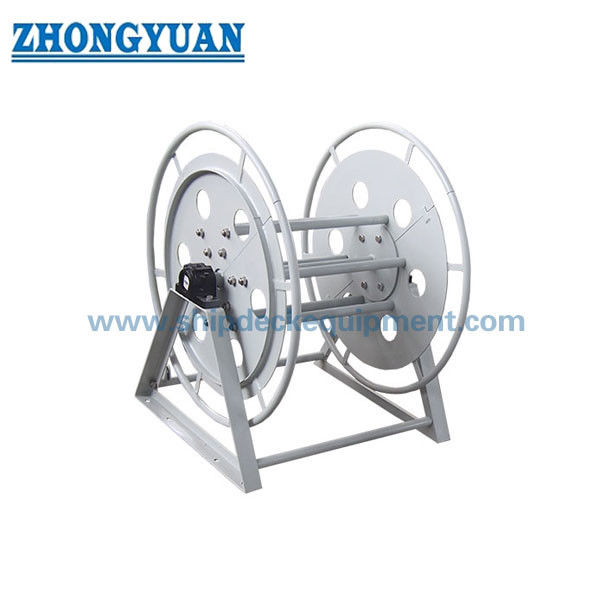

28–72mm Ship Mooring Fiber Rope Reel | Synthetic Rope Storage for Ship Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
| Document: | Marine Rope Reel Manual Dri...92.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Applicable Diameter: | 28~72mm | Drum Storage Capacity Of Steel Wire Length: | 110~220m |
|---|---|---|---|
| Foot Bolts Quantity: | 8~12 | Material: | 304, 316L Stainless Steel, Polished Stainless Steel, Mild Steel |
| Highlight: | Mooring Fiber Rope Wire Reel |
||
Product Description
28–72mm Ship Mooring Fiber Rope Reel | Synthetic Rope Storage for Ship Deck
Product Overview
A fiber rope reel is a deck equipment designed for storing and managing synthetic mooring ropes on ships.
This reel is manufactured according to CB/T 498-1995 standard and is widely used for safe storage of fiber ropes on ship decks.
The lightweight structure allows easy handling by crew, making it suitable for daily mooring operations and rope management.
Quick Specifications
- Applicable Rope: Synthetic Fiber Rope → Used for mooring rope storage
- Rope Diameter: 28–72 mm → Defines rope compatibility range
- Drum Capacity: 110–220 m → Defines rope storage length
- Material: Stainless Steel / Mild Steel → Provides corrosion resistance and strength
- Bolt Quantity: 8–12 pcs → Defines installation requirement
- Surface Treatment: Sa2.5 + Epoxy Coating → Improves corrosion protection
- Standard: CB/T 498-1995 → Marine compliance standard
- Structure: Lightweight → Easy handling by crew
- Surface Quality: Smooth finish → Prevents rope damage
Main Technical Parameters
|
Selection Guide
Step 1 – Select Rope Diameter → 28–72 mm based on mooring rope size
Step 2 – Confirm Rope Length → 110–220 m based on storage requirement
Step 3 – Confirm Installation Space → Based on reel dimensions
Step 4 – Select Material → Stainless or mild steel depending on environment
Step 5 – Confirm Mounting → Bolt quantity 8–12 pcs
Step 6 – Confirm Surface Treatment → Marine anti-corrosion requirement
Structure & Components
Drum | Shaft | Side plates | Base frame | Bearing system | Mounting bolts
Custom Attributes
- Rope Diameter: 28–72 mm → Compatibility with fiber rope
- Capacity: 110–220 m → Storage capability
- Material: Steel / Stainless → Durability
- Surface: Smooth → Prevent rope damage
- Weight: 85–216 kg → Handling requirement
- Installation: Bolt mounted → Easy installation
- Standard: CB/T 498-1995 → Marine standard
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Custom Configuration & Inquiry Guide
Please provide rope diameter, rope length, installation space, and material preference.
We will provide suitable reel model and drawing.
How It Works
The rope is manually or mechanically wound onto the reel drum for storage. The smooth drum surface ensures safe storage without damaging the fiber rope.
Applications
Ship mooring | Deck rope storage | Tug boats | Offshore vessels
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate; lightweight design, corrosion resistance, safe rope storage, easy handling.
Drawing & Photos
General arrangement drawing | Product photos
Ordering
MOQ: 1 Unit | Delivery Time: 30–60 Days | Customization: Available
FAQ
Q1: What type of rope is suitable?
A: Synthetic fiber rope within 28–72 mm diameter.
Q2: Is it easy to install?
A: Yes, it uses bolt mounting for quick installation.
Q3: Can it prevent rope damage?
A: Yes, smooth surface design protects fiber rope.
