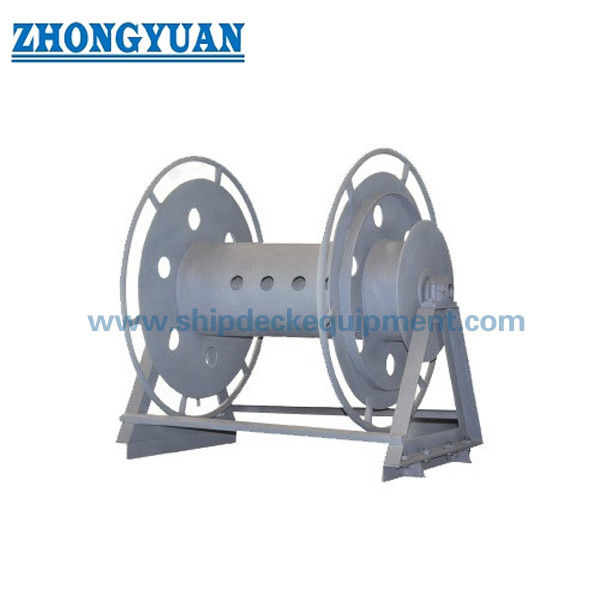

27.6–44mm Manual Bond Cable Reel CB*875-78 for Ship Grounding Cable Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
| Document: | Marine Rope Reel Manual Dri...92.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Model Type: | A28, B16, B22,C36,C44 | Cable Diameter: | 27.6~44mm |
|---|---|---|---|
| Drum Storage Capacity Of Steel Wire Length: | 150~230m | Foot Bolts Quantity: | 6~14 |
| Material: | 304, 316L Stainless Steel, Polished Stainless Steel, Mild Steel | ||
| Highlight: | Light Weight Bond Cable Reel |
||
Product Description
27.6–44mm Manual Bond Cable Reel CB*875-78 for Ship Grounding Cable Storage
Product Overview
CB*875-78 manual operated bond cable reel is designed for safe storage and handling of ship grounding cables.
Ensures reliable grounding connection between ship and shore, improving electrical safety during operation.
It ensures organized cable storage, protects cables from damage, and allows controlled manual winding and unwinding.
Quick Specifications
- Cable Diameter: 12.7–44 mm → Defines cable compatibility
- Storage Length: 100–230 m → Determines storage capacity
- Operation: Manual handle / hand wheel → Easy control
- Model Types: A28, B16, B22, C36, C44 → Structural options
- Material: Stainless Steel / Mild Steel → Structural durability
- Shaft: Lubricated shaft → Smooth rotation
- Surface: Sa2.5 + epoxy coating → Corrosion protection
- Standard: CB*875-78 → Marine industry standard
Main Technical Parameters
| Type | Name | Model | Applicable Cable | Remark | |
| Cable Diameter (mm) |
Max. Length of Cable (L) m | ||||
| A |
Cable Reel with Electric Current Loop |
A28 | 27.6 | 150 |
CHF R Cable 3x25 50A below |
| B | Handle Type Cable Reel | B16 | 12.7 | 125 | |
| 16 | 100 | ||||
| B22 | 20.3 | 200 | |||
| 22.6 | 180 | ||||
| C | Hand Wheel Type Cable Reel | C36 | 28 | 220 | |
| 36 | 180 | ||||
| C44 | 38 | 230 | |||
| 44 | 200 | ||||
Selection Guide
Step 1 – Select cable diameter → Based on grounding cable size
Step 2 – Confirm storage length → Based on required cable length
Step 3 – Select operation type → Handle or hand wheel
Step 4 – Confirm material → Stainless steel or mild steel
Step 5 – Confirm installation space → Deck or storage area
Structure
Drum | Shaft | Side plate | Handle / Hand wheel | Base frame
Custom Attributes
- Manual operation → No power required
- Lubricated shaft → Smooth rotation
- Compact structure → Easy installation
- Smooth surface → Protects cable insulation
- Corrosion-resistant coating → Marine durability
Inquiry Guide
Please provide cable diameter, required storage length, operation type, material requirement, and installation condition.
How It Works
The operator manually rotates the handle or hand wheel to wind or unwind the grounding cable onto the drum.
Applications
Ship grounding system | Bond cable storage | Marine electrical safety equipment
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Manufactured according to CB*875-78 standard; reliable structure, easy operation, and effective cable protection.
Drawing & Photos
General arrangement drawings and product photos available
Ordering
MOQ: 1 Unit | Delivery: 30–60 days | Customization available
FAQ
Q1: What is a bond cable reel used for?
A: It is used to store ship grounding cables safely.
Q2: How to choose operation type?
A: Handle for light duty, hand wheel for heavier cables.
Q3: Can it be customized?
A: Yes, size, material and capacity can be customized.
