JIS F 2015 Cast Steel Bar Type Ship Anchor Chain Stopper Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Technical Standard: | JIS F2015-1987 | Type: | Bar Type |
|---|---|---|---|
| Chain Size: | 38-78mm | Materials: | Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available. | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc. |
| High Light: | Bar Type mooring chain stopper,mooring chain stopper,JIS F2015-1987 Ship Mooring Equipment |
||
Product Description

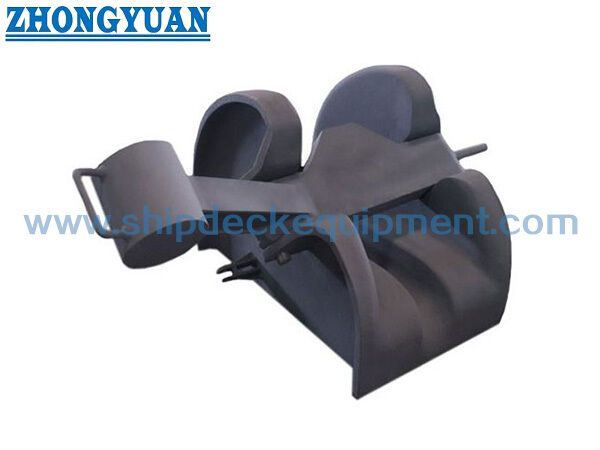

JIS F 2015 Cast Steel Bar Type Ship Anchor Chain Stopper Ship Mooring Equipment
Description:
JIS F 2015 cast steel bar type ship anchor chain stopper is casting steel anchor chain stopper. It is bar type, without roller. It is to be fitted on fabricated foundation to adjust the height for alignment between chain hawse pipe and windlass. Normally there is one chain wheel or roller in front to lift the chain smoothly.
Main Technical Specification;
- Technical Standard: JIS F2015-1987
- Type: Bar Type
- Chain Size: 38-78mm
- Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging,
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
- Can be Customized
Main Technical Parameter:
| Type | Anchor Chain Dia. (mm) |
Size(mm) | Weight (kg) |
|||
| A | B | C | D | |||
| 40 | 38~40 | 378 | 540 | 390 | 336 | 111 |
| 44 | 42~44 | 412 | 590 | 424 | 366 | 139 |
| 48 | 46~48 | 450 | 640 | 460 | 397 | 176 |
| 52 | 50~52 | 491 | 695 | 494 | 428 | 216 |
| 56 | 54~56 | 528 | 745 | 530 | 457 | 261 |
| 60 | 58~60 | 564 | 795 | 564 | 488 | 319 |
| 64 | 62~64 | 600 | 850 | 600 | 517 | 380 |
| 68 | 66~68 | 635 | 900 | 636 | 547 | 452 |
| 73 | 70~73 | 675 | 960 | 678 | 582 | 561 |
| 78 | 76~78 | 715 | 1020 | 720 | 617 | 682 |
Drawing of JIS F 2015 Cast Steel Bar Type Ship Anchor Chain Stopper Ship Mooring Equipment
