GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment

GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment

Product Details:

Place of Origin: China
Brand Name: Zhongyuan
Certification: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number: Standard and Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: As per quotation
Packaging Details: Pallet or Customized
Delivery Time: As per offer
Payment Terms: TT, L/C, Etc.
Supply Ability: Satisfy clients needs
Get Best Price Contact Now

Detail Information
Technical Standard: GB/T 3844-2000 Type: Roller Lever Type
Chain Size: 42-132mm Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging
Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA Surface Treatment: Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available.
High Light:

roller lever chain stopper

,

Marine roller lever chain stopper

,

GB/T 3844-2000 Ship Mooring Equipment

Product Description

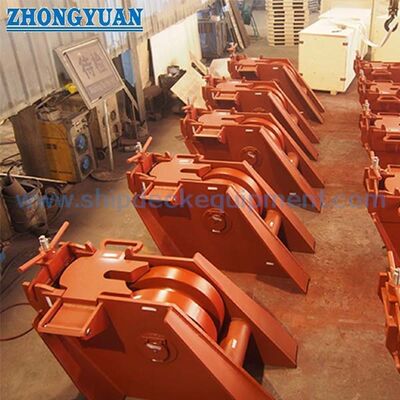

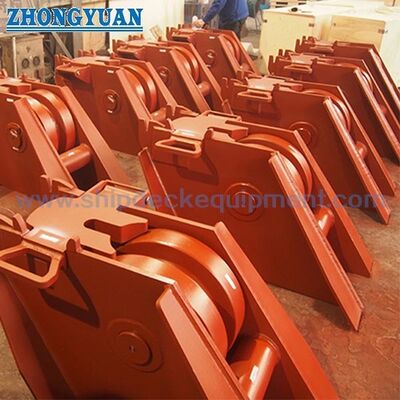

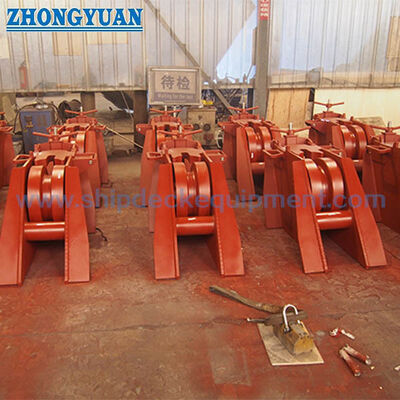

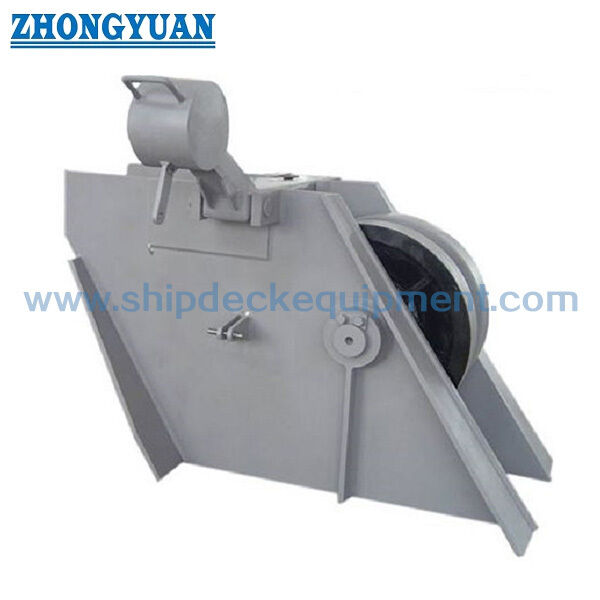

GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment



Description

Chain stopper is to fix the anchor chain & anchor in position even in heavy sea conditions. It alwaysreduce the pull load suffered by windlass. It is designed based on the standard chain stopper strength 80% of anchor chain's minimum breaking load. NDE test is applicable to all of chain stopper we produced.GB/T 3844 anchor chain stopper is applicable to the chain size between 44mm to 132mm. For smaller size of chain please contact with us and refer to other design standard.



Main Technical Specification

      1. Technical Standard: GB/T 3844-2000

      2. Type: Roller lever type

      3. Chain Size: 42-132mm

      4. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging,

      5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.

      6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

      7. Can be Customized                                                                                                                                                                                                                                                                                                                                                                                                                                    Main Technical Parameter:



Nominal
Diameter		 Chain Dia.
(mm)		 L L1 L2 L3 L4 B b1 D d1 d2 h1 h2 t t1 Weight
(kg)
44 42~44 1000 370 400 270 80 380 260 484 22 69 392 281 12 32 274
48 46~48 1050 420 450 300 85 446 286 528 26 73 414 306 12 34 351
52 50~52 1100 440 500 320 90 510 310 572 32 77 440 338 14 36 451
56 54~56 1150 450 550 340 92 556 316 600 34 81 460 354 15 38 536
60 58~60 1200 470 570 360 95 610 330 620 38 87 490 378 16 40 651
64 62~64 1250 500 600 370 100 666 346 640 40 94 520 400 17 42 753
68 66~68 1300 550 640 39 102 732 372 680 42 101 540 420 18 45 939
73 70~73 1350 570 670 41 110 800 400 730 45 109 580 460 20 48 1178
78 76~78 1400 610 700 442 115 865 425 780 48 116 630 490 22 50 1422
84 81~84 1460 650 740 475 120 940 454 840 50 124 670 530 24 55 1758
90 87~90 1540 710 780 507 135 1030 484 900 55 132 720 570 26 60 2171
95 92~95 1600 740 820 535 140 1080 508 950 58 139 760 610 28 65 2567
102 97~102 1680 790 870 572 145 1150 540 1020 60 148 800 650 30 70 2755
107 105~107 1750 840 900 600 150 1210 569 1070 63 154 860 690 32 75 3640
114 111~114 1820 880 940 637 160 1270 598 1140 68 163 910 740 34 80 4302
122 117~122 1880 930 1010 679 165 1340 632 1220 70 173 980 790 36 85 5326
132 124~132 1960 1000 1080 730 175 1440 674 1320 75 185 1060 860 38 90 6244



GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment 0

Drawing Of GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment



GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment 1



GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment 2
