100–320mm Four Roller Universal Fairlead | CB/T 3062 Type B Multi-Directional Mooring Fairlead for Ship Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Model Type: | Type B | Materials: | C-Mn Steel, Mild Steel, Stainless Steel |
|---|---|---|---|
| Standard: | CB/T*3062-2011 | Roller No.: | 4 Rollers |
| Steel Cable Diameters: | 14~44mm | Nylon Rope Diameters: | 36~100mm |
| Weight: | 112kg~2441kg | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available. |
| Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA | ||
| Highlight: | CB/T 3062-2011 four roller fairleads,Steel CB/T 3062-2011 four roller fairleads,CCS deck mooring equipment |
||
Product Description
100–320mm Four Roller Universal Fairlead | CB/T 3062 Type B Multi-Directional Mooring Fairlead for Ship Deck
Product Overview

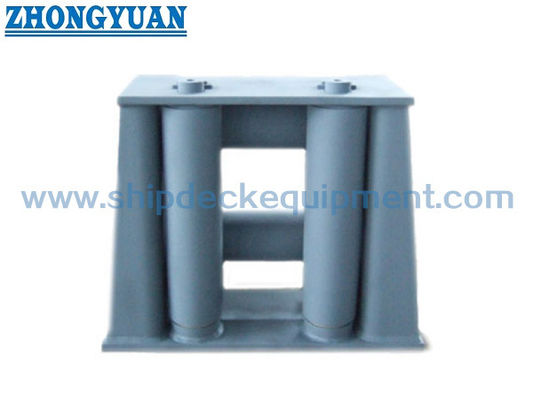

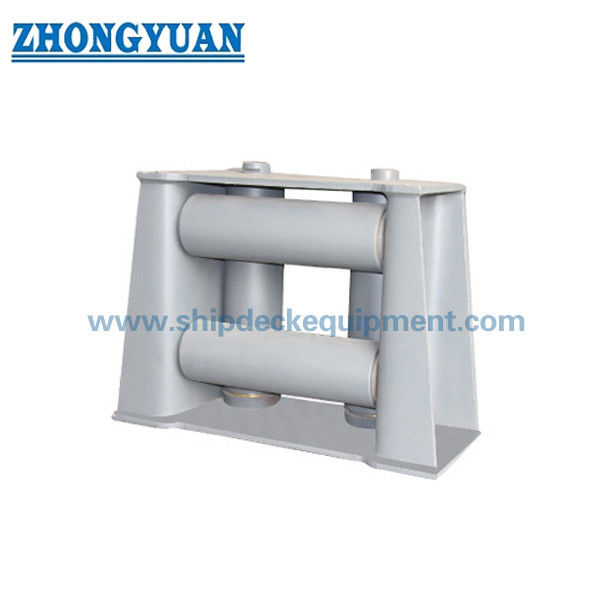

CB/T 3062 Type B four roller universal fairlead is designed for multi-directional mooring rope guiding on ship decks.
The structure consists of two vertical and two horizontal rollers, allowing rope guidance from four directions with improved load distribution.
It is suitable for complex mooring conditions where rope direction varies, providing reduced rope wear and stable operation.
Engineering Insight (Why This Design)
In multi-direction mooring conditions, rope load is not evenly distributed.
Four roller configuration distributes load across multiple contact points, reducing localized stress and improving safety.
This design also minimizes rope bending and abrasion, extending service life.
Quick Specifications
Roller Configuration: 4 rollers (2 vertical + 2 horizontal) → Multi-direction guiding
Roller Diameter Range: 100–320 mm → Rope compatibility
SWL Range: 54–533 kN → Load reference
Rope Type: Steel wire / nylon / synthetic → Wide applicability
Material: Casting steel / C-Mn steel → Structural strength
Surface Treatment: Sa2.5 + epoxy coating → Corrosion resistance
Standard: CB/T 3062-2011 → Industry compliance
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Main Technical Parameters (SWL & Size)
| Nominal Size |
Steel Wire Rope Dia. |
Nylon Rope | SWL (KN) |
B | B1 | B2 | D | H | H1 | L | L1 | L2 | L3 | t | Weight (KG) |
| 100 | 14 | 36 | 54 | 238 | 194 | 108 | 102 | 508 | 330 | 644 | 416 | 300 | 544 | 10 | 112 |
| 120 | 16 | 40 | 70 | 280 | 232 | 128 | 121 | 552 | 360 | 728 | 456 | 320 | 608 | 12 | 169 |
| 140 | 18 | 45 | 89 | 304 | 250 | 138 | 140 | 606 | 405 | 776 | 480 | 330 | 646 | 14 | 227 |
| 150 | 20 | 70 | 110 | 346 | 288 | 158 | 152 | 670 | 435 | 880 | 540 | 370 | 730 | 16 | 328 |
| 160 | 22 | 80 | 133 | 370 | 308 | 168 | 168 | 710 | 470 | 940 | 580 | 400 | 780 | 18 | 388 |
| 180 | 26 | 85 | 186 | 417 | 345 | 190 | 194 | 770 | 380 | 1030 | 620 | 420 | 850 | 20 | 620 |
| 200 | 28 | 95 | 216 | 459 | 385 | 210 | 219 | 820 | 410 | 1136 | 686 | 460 | 936 | 22 | 789 |
| 230 | 32 | 100 | 282 | 521 | 445 | 240 | 245 | 910 | 450 | 1256 | 746 | 490 | 1026 | 25 | 1067 |
| 260 | 36 | 100 | 357 | 590 | 500 | 270 | 273 | 1000 | 500 | 1430 | 850 | 560 | 1170 | 28 | 1585 |
| 320 | 44 | 100 | 533 | 714 | 620 | 330 | 325 | 1130 | 570 | 1690 | 990 | 640 | 1370 | 30 | 2441 |
Engineering Validation & Testing
Finite Element Analysis (FEA) is performed to verify structural strength and load distribution.
Load testing has been conducted on similar products to validate SWL performance.
Design and manufacturing comply with classification society requirements.
Structure
Upper Roller | Lower Horizontal Rollers | Vertical Rollers | Pin Shaft | Bush Bearing | Frame Structure
Fairlead Type Comparison
3 Roller Fairlead → Standard directional guiding for moderate load conditions
4 Roller Fairlead → Multi-direction guiding with better load distribution and reduced rope stress
Open Type Fairlead → Flexible rope entry, suitable for variable rope angles
Closed Type Fairlead → Controlled rope path, prevents rope escape under load
Selection Tip:
For complex mooring conditions or multi-direction rope leads, 4 roller fairlead is recommended.
Not sure which fairlead type suits your vessel?
Contact us — we will recommend the correct configuration based on your rope size, load and working conditions.
Structural Optimization
Optimized lubrication system ensures smooth rotation and long-term operation.
Bush bearing design improves wear resistance and load transfer efficiency.
Pin shaft is designed as primary load-bearing component.
Material & Surface Options
Rollers can be manufactured in full stainless steel or stainless steel cladding for corrosion resistance.
Synthetic material protection layer can be added to rollers to reduce rope wear.
Ground smooth surface protects rope and improves service life.
Selection Guide
Step 1 – Select roller size → Based on rope diameter
Step 2 – Confirm rope type → Steel wire / synthetic
Step 3 – Confirm rope direction → Multi-direction requirement
Step 4 – Confirm load requirement → Refer SWL
Step 5 – Confirm installation location → Deck position
Need help selecting correct size or load? Contact us for engineering support.
Custom Attributes
Four roller structure → Multi-direction control
FEA verified design → Reliable strength
Tested SWL → Proven performance
Bush bearing → Smooth rotation
Corrosion-resistant options → Extended service life
Inquiry Guide
Please provide rope diameter, rope type, required load, installation position and certification requirement.
Not sure which model suits your vessel? Contact us for engineering selection support.
How It Works
Rope passes through multiple rollers, distributing load and guiding direction while reducing friction and wear.
Applications
Ship mooring | Tug operations | Offshore support vessels | Multi-direction rope guiding
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Drawing & Photos
General arrangement drawing and product photos available
Ordering
MOQ: 1 Unit | Delivery: 30–60 days | Customization available
FAQ
Q1: Why use four roller fairlead?
A: For multi-direction load distribution and reduced rope wear.
Q2: How is strength verified?
A: Through FEA analysis and load testing.
Q3: Can rollers be customized?
A: Yes, stainless steel or synthetic protection options are available.
